G400 K1 VB6 (G400) - Honda Engine, Made in Japan (SN: G400-1200001 - G400-1519048) FAN COVER + SIDE PLATE (1) Parts Diagram

Engine, Made in Japan

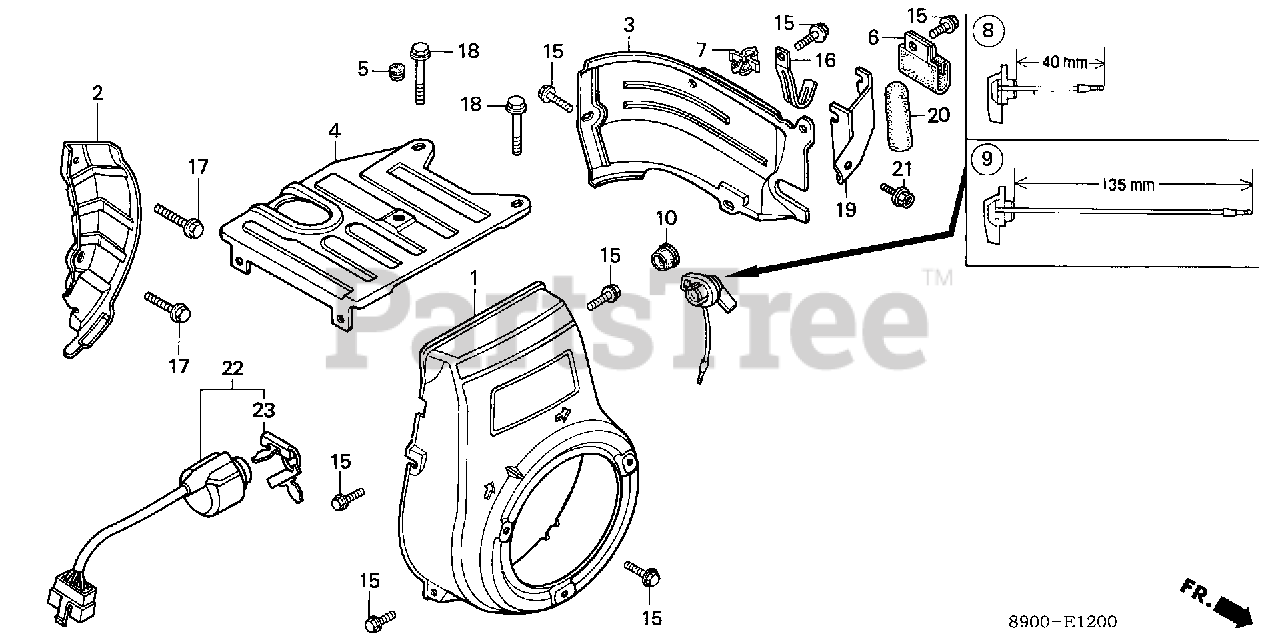

FAN COVER + SIDE PLATE (1) Parts Diagram

  • Title

1

Honda 19610-890-000ZA

COVER, FAN *R8* (BRIGHT RED) (NOT AVAILABLE)

$

$

Not available

2

Honda 19611-890-000

PLATE, SIDE

$

$

Not available

3

Honda 19631-890-010ZA

SHROUD *R8* (BRIGHT RED)

$

$

Not available

4

Honda 19641-890-010ZB

COVER, TOP *R8* (BRIGHT RED)

$

$

Not available

5

Honda 19643-883-010

GROMMET, TOP COVER

$2.99

$

Usually ships in 3-6 days

0

7

Honda 30701-883-000

SEE PART DETAILS - PRI; CLIP, IGNITION WIRE (8MM)

$3.99

$

In Stock, only 1 left!

0

9

Honda 36100-889-731

SEE PART DETAILS - PRI; SWITCH ASSY., ENGINE STOP

Note: Use up to Engine SN 1335523.

$

$

Not available

9

Honda 36100-889-731

SEE PART DETAILS - PRI; SWITCH ASSY., ENGINE STOP

Note: (Optional). Use from Engine SN 1335524 to 1460890.

$

$

Not available

9

Honda 36100-889-791

SEE PART DETAILS - SUP; SWITCH ASSY., ENGINE STOP

Note: Use up to Engine SN 1335523.

$

$

Currently unavailable

9

Honda 36100-889-791

SEE PART DETAILS - SUP; SWITCH ASSY., ENGINE STOP

Note: (Optional). Use from Engine SN 1335524 to 1460890.

$

$

Currently unavailable

9

Honda 36100-887-721

SWITCH ASSY., ENGINE STOP

Note: Use from Engine SN 1460891.

$27.99

$

Usually ships in 3-6 days

0

15

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 20+

0

16

Honda 91406-671-000

CLIP, WIRE HARNESS

$21.99

$

Usually ships in 3-6 days

0

17

Honda 95701-08020-08

BOLT, FLANGE (8X20)

$2.49

$

Usually ships in 3-6 days

0

22

Honda 35100-ZA0-013

SEE PART DETAILS - SUP; SWITCH ASSY., COMBINATION
(Superseded to 35100-ZA0-023)

Note: (Optional).

$111.99

$

Usually ships in 3-6 days

0

22

Honda 35100-ZA0-023

SEE PART DETAILS - PRI; SWITCH ASSY., COMBINATION

Note: (Optional).

$111.99

$

Usually ships in 3-6 days

0

23

Honda 35111-880-013

SEE PART DETAILS - PRI; KEY

Note: (Optional).

$11.99

$

In Stock, Qty 5

0
