G400 K1 VB6 (G400) - Honda Engine, Made in Japan (SN: G400-1200001 - G400-1519048) CYLINDER HEAD + CYLINDER Parts Diagram

Engine, Made in Japan

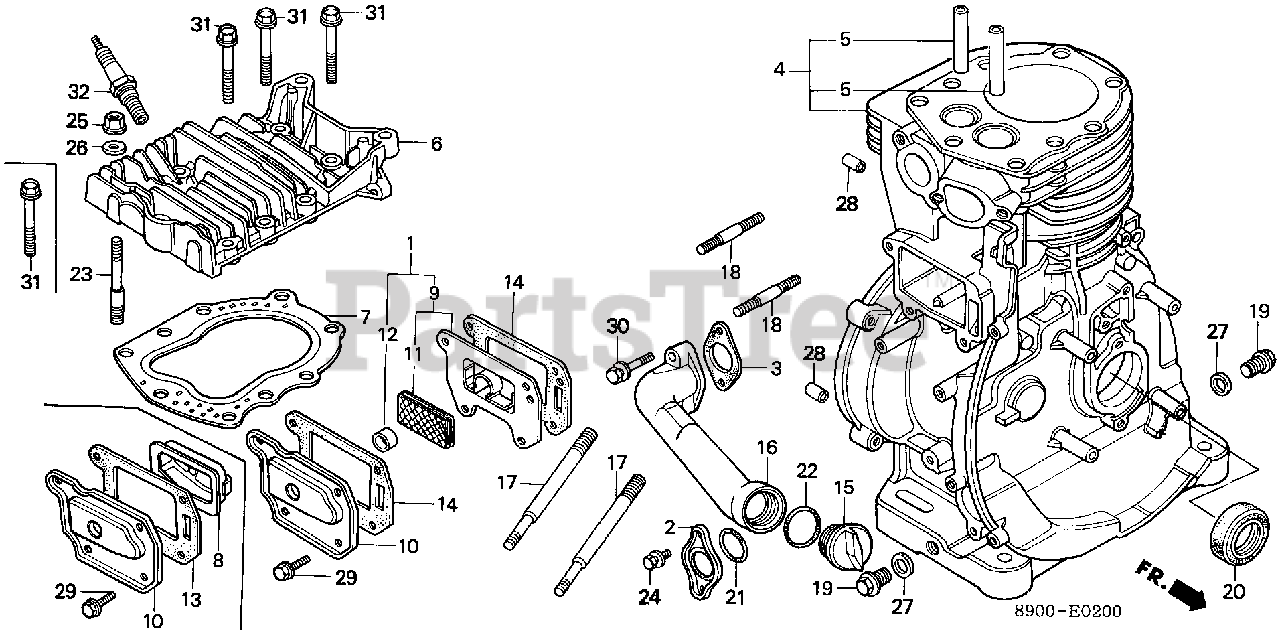

CYLINDER HEAD + CYLINDER Parts Diagram

  • Title

1

Honda 06123-890-305

CASE KIT, BREATHER (NOT AVAILABLE)

Note: (Optional). Use up to Engine SN 1213314.

$14.99

$

Usually ships in 3-6 days

0

2

Honda 11210-822-010

COVER, OIL PAN HOLE

$3.99

$

Usually ships in 3-6 days

0

3

Honda 11211-822-306

GASKET, OIL PAN

Note: (Optional).

$

$

Not available

4

Honda 12100-890-335

CYLINDER (CRANKSHAFT P.T.O.) (NOT AVAILABLE)

Note: Use up to Engine SN 1350779.

$

$

Currently unavailable

4

Honda 121A0-890-040

CYLINDER (CRANKSHAFT P.T.O.)

Note: Use from Engine SN 1350780.

$

$

Not available

5

Honda 12134-890-305

GUIDE, VALVE

Note: (Optional).

$9.49

$

Usually ships in 3-6 days

0

6

Honda 12221-890-305

CYLINDER HEAD (NOT AVAILABLE)

$

$

Not available

7

Honda 12281-890-306

SEE PART DETAILS - SUP; GASKET, CYLINDER HEAD

$

$

Not available

7

Honda 12281-891-610

SEE PART DETAILS - PRI; GASKET, CYLINDER HEAD

$

$

Not available

8

Honda 12360-889-010

SEE PART DETAILS - PRI; CASE, BREATHER

Note: Use up to Engine SN 1213314.

$

$

Not available

9

Honda 12360-890-000

CASE, BREATHER

Note: Use from Engine SN 1213315.

$15.99

$

Usually ships in 3-6 days

0

10

Honda 12361-890-000

COVER, TAPPET ROOM

$

$

Not available

11

Honda 12367-890-003

FILTER, BREATHER

Note: Use from Engine SN 1213315.

$

$

Not available

12

Honda 12369-883-000

SEAL, BREATHER

Note: Use from Engine SN 1213315.

$4.49

$

Usually ships in 3-6 days

0

13

Honda 12375-ZA1-000

GASKET, TAPPET COVER

Note: Use up to Engine SN 1213314.

$

$

Not available

14

Honda 12375-ZA1-000

GASKET, TAPPET COVER

Note: Use from Engine SN 1213315.

$

$

Not available

15

Honda 15611-921-000

CAP, OIL (YELLOW)

Note: (Optional).

$13.99

$

Usually ships in 3-6 days

0

16

Honda 15632-890-010

PIPE, OIL

Note: (Optional).

$

$

Not available

17

Honda 90042-890-680

BOLT, STUD (8X104)

$8.99

$

Usually ships in 3-6 days

0

18

Honda 90047-883-000

BOLT, STUD (8X35)

$4.99

$

Usually ships in 3-6 days

0

19

Honda 90131-883-000

SEE PART DETAILS - SUP; BOLT, DRAIN PLUG (12X15)

$

$

Not available

19

Honda 90131-896-650

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG (12X15)

$4.99

$

In Stock, Qty 12

0

20

Honda 91201-890-003

OIL SEAL (30X46X8)

$11.99

$

In Stock, Qty 5

0

21

Honda 91301-028-000

O-RING (27X2.0)

$3.99

$

Usually ships in 3-6 days

0

22

Honda 91301-805-000

O-RING (26X2.7)

Note: (Optional).

$4.99

$

In Stock, only 1 left!

0

23

Honda 90045-890-000

BOLT, STUD (10X70)

Note: Use from Engine SN 1297698.

$7.99

$

Usually ships in 3-6 days

0

23

Honda 92900-10040-0B

SEE PART DETAILS - PRI; BOLT, STUD (10X40)

Note: Use from Engine SN 1269742 to 1297697.

$10.99

$

Usually ships in 3-6 days

0

24

Honda 93402-06012-08

SEE PART DETAILS - PRI; BOLT-WASHER (6X12)

$2.49

$

Usually ships in 3-6 days

0

25

Honda 94050-10000

NUT, FLANGE (10MM)

Note: Use from Engine SN 1269742 to 1297697.

$1.99

$

In Stock, Qty 6

0

25

Honda 94050-10080

NUT, FLANGE (10MM)

Note: Use from Engine SN 1297698.

$3.99

$

In Stock, Qty 20+

0

26

Honda 90401-437-000

WASHER, PLAIN (10MM)

Note: Use from Engine SN 1297698.

$3.49

$

Usually ships in 3-6 days

0

26

Honda 94102-10000

WASHER, PLAIN (10MM)

Note: Use from Engine SN 1269742 to 1297697.

$0.99

$

In Stock, only 1 left!

0

27

Honda 94109-12000

WASHER, DRAIN PLUG (12MM)

$1.49

$

In Stock, Qty 12

0

28

Honda 94301-08140

PIN, DOWEL (8X14)

$2.99

$

In Stock, Qty 8

0

29

Honda 95700-06012-08

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)

$

$

Currently unavailable

29

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, only 1 left!

0

30

Honda 95700-06025-08

BOLT, FLANGE (6X25)

Note: (Optional).

$2.49

$

Usually ships in 3-6 days

0

30

Honda 95701-06025-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25)

Note: (Optional).

$2.49

$

Usually ships in 3-6 days

0

31

Honda 95730-10055-08

BOLT, FLANGE (10X55)

Note: Use up to Engine SN 1269741.

$2.99

$

Usually ships in 3-6 days

0

31

Honda 95730-10055-08

BOLT, FLANGE (10X55)

Note: Use from Engine SN 1269742.

$2.99

$

Usually ships in 3-6 days

0

32

Honda 98076-54710

SPARK PLUG (B-4H) (NGK)

Note: (Optional).

$3.49

$

Usually ships in 3-6 days

0

32

Honda 98076-54716

SPARK PLUG (BR-4HS) (NGK)

Note: (Optional).

$3.49

$

In Stock, Qty 10

0

32

Honda 98076-54911

SPARK PLUG (BP-4HS-10) (NGK)

$3.49

$

Usually ships in 3-6 days

0

32

Honda 98076-54914

SEE PART DETAILS - SUP; SPARK PLUG (BPR-4HS-10) (NGK)
(Superseded to 98076-54917)

Note: (Optional).

$3.49

$

In Stock, only 3 left!

0

32

Honda 98076-54917

SEE PART DETAILS - PRI; SPARK PLUG (BPR4HS-10)

Note: (Optional).

$3.49

$

In Stock, only 3 left!

0

32

Honda 98076-54919

SPARK PLUG (BP4HS-10)

$3.49

$

Usually ships in 3-6 days

0

32

Honda 98076-54720

SPARK PLUG (W14F-U) (DENSO)

Note: (Optional).

$3.49

$

Usually ships in 3-6 days

0

32

Honda 98076-54757

SPARK PLUG (W14FR-U)

Note: (Optional).

$3.49

$

Usually ships in 3-6 days

0

32

Honda 98076-54921

SPARK PLUG (W14FP-UL10) (DENSO)

Note: (Optional).

$3.49

$

Usually ships in 3-6 days

0

32

Honda 98076-54954

SPARK PLUG (W14FPR-UL10) (DENSO)

Note: (Optional).

$3.99

$

Usually ships in 3-6 days

0

32

Honda 98076-56724

SPARK PLUG (W20FS-U) (DENSO)

Note: (Optional).

$3.49

$

Usually ships in 3-6 days

0

32

Honda 98076-56921

SEE PART DETAILS - SUP; SPARK PLUG (W20FP-U10) (DENSO)

Note: (Optional).

$

$

Currently unavailable
