G400 K1 VB6 (G400) - Honda Engine, Made in Japan (SN: G400-1200001 - G400-1519048) CRANKCASE COVER (1) Parts Diagram

Engine, Made in Japan

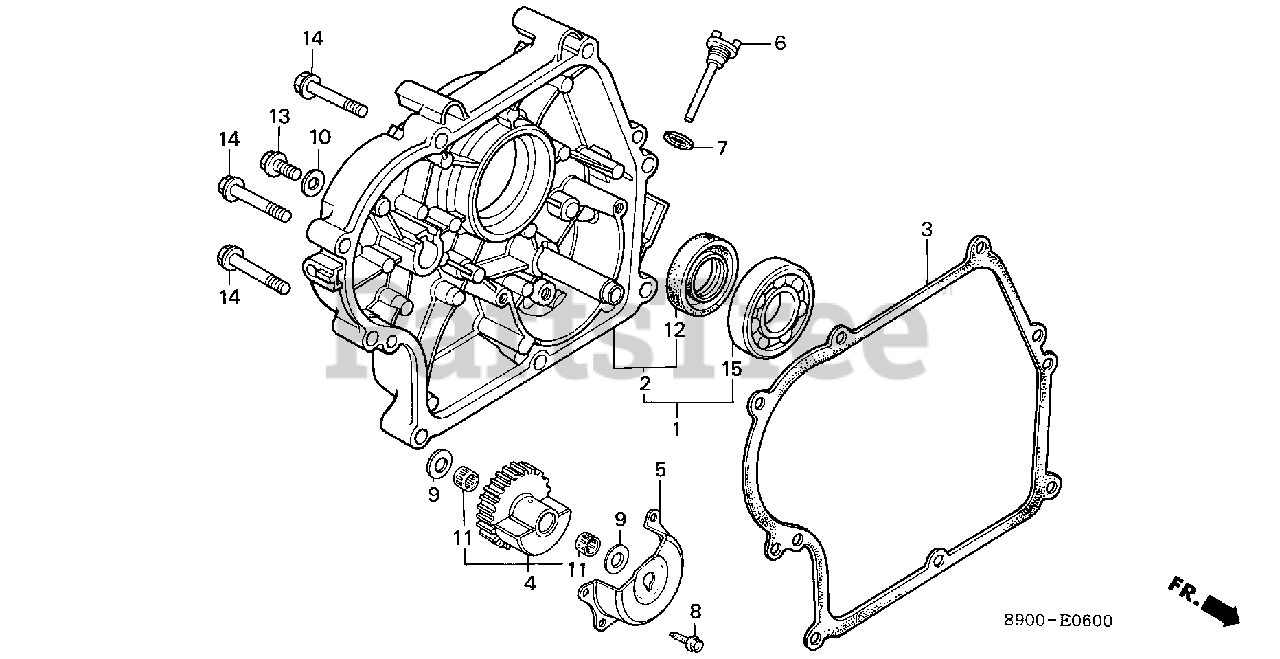

CRANKCASE COVER (1) Parts Diagram

  • Title

2

Honda 11300-890-721

COVER ASSY., CRANKCASE

$

$

Not available

3

Honda 11381-890-850

GASKET, CASE COVER

$

$

Not available

4

Honda 13350-890-010

WEIGHT, BALANCER

$136.99

$

Usually ships in 3-6 days

0

5

Honda 13354-890-000

COVER, BALANCER

$

$

Currently unavailable

6

Honda 15620-890-000

CAP, OIL FILLER (YELLOW)

Note: (Optional).

$

$

Not available

7

Honda 15621-896-010

GASKET, OIL FILLER CAP

Note: (Optional).

$5.99

$

In Stock, Qty 5

0

8

Honda 90061-161-000

BOLT, FLANGE (6X16)

Note: Use up to Engine SN 1202500.

$4.49

$

Usually ships in 3-6 days

0

8

Honda 95701-06016-08

BOLT, FLANGE (6X16)

Note: Use from Engine SN 1202501.

$1.99

$

In Stock, Qty 5

0

9

Honda 90451-166-000

WASHER, THRUST (15MM)

$

$

Not available

10

Honda 90488-700-000

WASHER A (8MM)

$1.99

$

Usually ships in 3-6 days

0

11

Honda 91021-890-000

BEARING, NEEDLE

$27.99

$

Usually ships in 3-6 days

0

12

Honda 91201-890-003

OIL SEAL (30X46X8)

$11.99

$

In Stock, Qty 5

0

13

Honda 95701-08012-08

BOLT, FLANGE (8X12)

Note: Use up to Engine SN 1207840.

$2.49

$

Usually ships in 3-6 days

0

13

Honda 95701-08012-00

BOLT, FLANGE (8X12)

Note: Use from Engine SN 1207841.

$1.49

$

In Stock, only 2 left!

0

14

Honda 95700-08045-08

BOLT, FLANGE (8X45)
(Superseded to 95701-08045-08)

$2.99

$

In Stock, Qty 8

0

14

Honda 95701-08045-08

BOLT, FLANGE (8X45)

$2.99

$

In Stock, Qty 8

0
