G400 K1 QZC1 (G400) - Honda Engine, Made in Japan (SN: G400-1200001 - G400-1519048) CRANKCASE COVER + OIL ALERT (3) Parts Diagram

Engine, Made in Japan

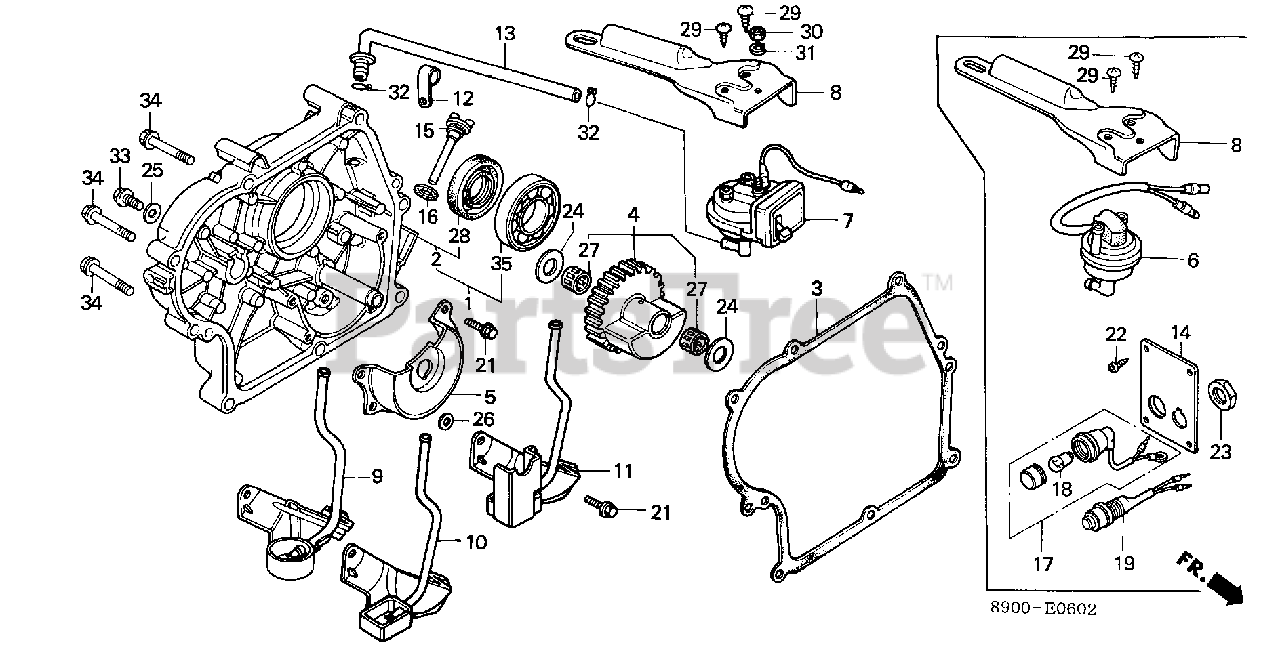

CRANKCASE COVER + OIL ALERT (3) Parts Diagram

  • Title

2

Honda 11300-890-860

COVER ASSY., CRANKCASE

$

$

Not available

3

Honda 11381-890-850

GASKET, CASE COVER

$8.99

$

Usually ships in 3-6 days

0

4

Honda 13350-890-010

WEIGHT, BALANCER

$136.99

$

Usually ships in 3-6 days

0

5

Honda 13354-890-000

COVER, BALANCER

$

$

Currently unavailable

7

Honda 15520-883-881

SWITCH ASSY., OIL ALERT UNIT

$112.99

$

Usually ships in 3-6 days

0

8

Honda 15521-883-890

BRACKET, OIL ALERT UNIT SWITCH

Note: (Optional).

$38.99

$

Usually ships in 3-6 days

0

9

Honda 15525-890-893

CUP, OIL

$

$

Not available

12

Honda 15529-889-890

CLAMP, TUBE

Note: (Optional).

$5.99

$

Usually ships in 3-6 days

0

13

Honda 15530-889-891

TUBE, OIL ALERT

$30.99

$

Usually ships in 3-6 days

0

15

Honda 15620-890-000

CAP, OIL FILLER (YELLOW)

Note: (Optional).

$

$

Not available

16

Honda 15621-896-010

GASKET, OIL FILLER CAP

Note: (Optional).

$6.49

$

In Stock, Qty 5

0

21

Honda 95701-06016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16)

$2.49

$

In Stock, Qty 20+

0

24

Honda 90451-166-000

WASHER, THRUST (15MM)

$

$

Not available

25

Honda 90488-700-000

WASHER A (8MM)

$1.99

$

Usually ships in 3-6 days

0

26

Honda 90545-044-000

WASHER, CRANK ARM

$2.49

$

Usually ships in 3-6 days

0

27

Honda 91021-890-000

BEARING, NEEDLE

$27.99

$

Usually ships in 3-6 days

0

28

Honda 91201-890-003

OIL SEAL (30X46X8)

$12.99

$

In Stock, Qty 6

0

29

Honda 93903-25180

SCREW, TAPPING (5X10)

Note: (Optional).

$1.49

$

Usually ships in 3-6 days

0

30

Honda 94001-05080-0S

SEE PART DETAILS - PRI; NUT, HEX. (5MM)

Note: (Optional).

$1.49

$

Usually ships in 3-6 days

0

31

Honda 94111-05800

WASHER, SPRING (5MM)

Note: (Optional).

$1.99

$

Usually ships in 3-6 days

0

32

Honda 95002-70000

CLIP, TUBE (C11)

Note: (Optional).

$2.49

$

In Stock, Qty 20+

0

33

Honda 95701-08012-00

BOLT, FLANGE (8X12)

$1.99

$

In Stock, only 2 left!

0

34

Honda 95701-08045-00

BOLT, FLANGE (8X45)

$1.99

$

In Stock, Qty 17

0
