G400 K1 QZC1 (G400) - Honda Engine, Made in Japan (SN: G400-1200001 - G400-1519048) CRANKCASE COVER (2) Parts Diagram

Engine, Made in Japan

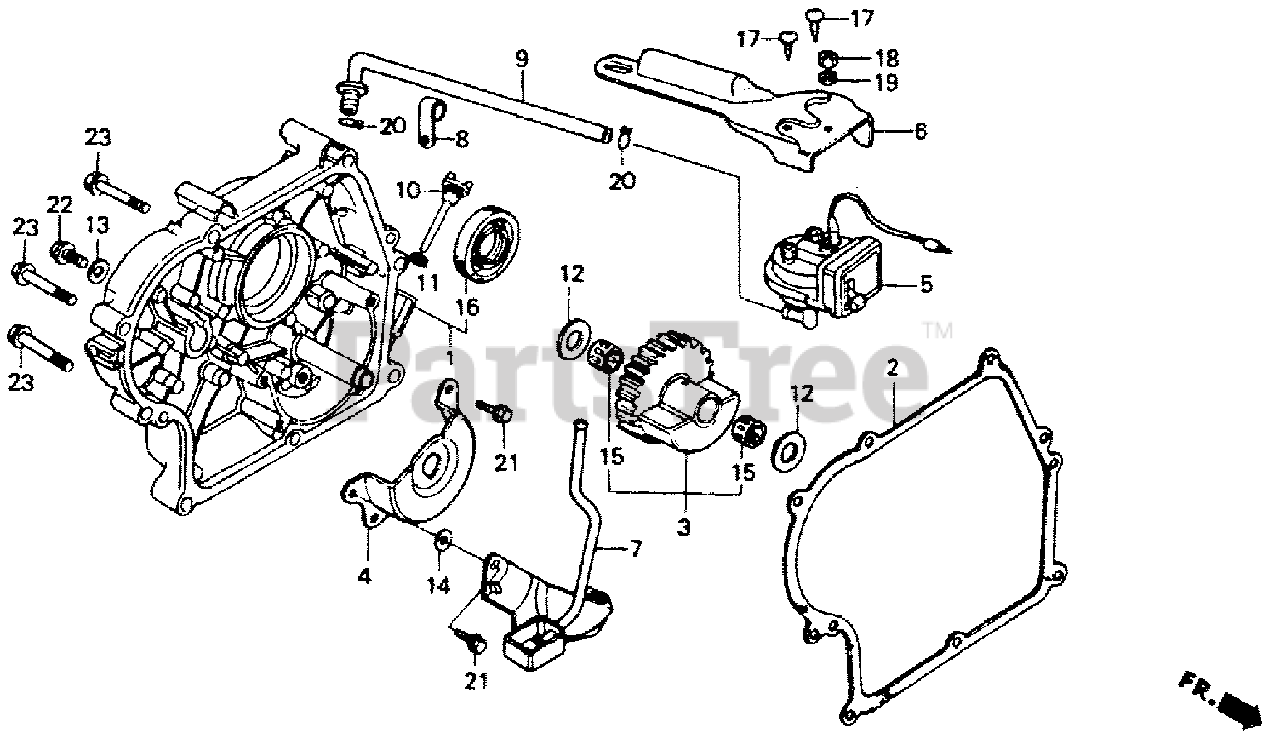

CRANKCASE COVER (2) Parts Diagram

  • Title

1

Honda 11300-890-860

COVER ASSY., CRANKCASE (QZ-TYPE) (Honda Code 1405372).

$

$

Not available

2

Honda 11381-890-850

SEE PART DETAILS - PRI; GASKET, CASE COVER (Honda Code 4510061).

$

$

Not available

3

Honda 13350-890-010

SEE PART DETAILS - PRI; WEIGHT, BALANCER (Honda Code 1008044).

$136.99

$

Usually ships in 3-6 days

0

4

Honda 13354-890-000

COVER, BALANCER (Honda Code 0754879).

$

$

Currently unavailable

5

Honda 15520-883-881

SWITCH ASSY., UNIT (Honda Code 1237536).

$112.99

$

Usually ships in 3-6 days

0

6

Honda 15521-883-890

BRACKET, UNIT SWITCH (Honda Code 1108166).

$38.99

$

Usually ships in 3-6 days

0

7

Honda 15525-890-893

CUP, OIL (Honda Code 1233253).

$

$

Not available

8

Honda 15529-889-890

CLAMP, TUBE (Honda Code 1114826).

$5.99

$

Usually ships in 3-6 days

0

9

Honda 15530-889-891

SEE PART DETAILS - PRI; TUBE, OIL ALERT (Honda Code 1203975).

$30.99

$

Usually ships in 3-6 days

0

10

Honda 15620-890-000

CAP, OIL FILLER (Honda Code 0755025).

$

$

Not available

11

Honda 15621-896-010

SEE PART DETAILS - PRI; GASKET, OIL FILLER CAP (Honda Code 1033042).

$5.99

$

In Stock, Qty 5

0

12

Honda 90451-166-000

WASHER, THRUST (15MM) (Honda Code 0913970).

$

$

Not available

12

Honda 90454-360-000

WASHER, THRUST (15MM) (Honda Code 0341164).

$

$

Currently unavailable

13

Honda 90488-700-000

WASHER A (8MM) (Honda Code 0130534).

$1.99

$

Usually ships in 3-6 days

0

14

Honda 90545-044-000

WASHER, CRANK ARM (Honda Code 0127902).

$2.49

$

Usually ships in 3-6 days

0

15

Honda 91021-890-000

BEARING, NEEDLE (Honda Code 0756486).

$27.99

$

Usually ships in 3-6 days

0

16

Honda 91201-890-003

OIL SEAL (30X46X8) (Honda Code 0756494).

$11.99

$

In Stock, Qty 5

0

17

Honda 93903-25180

SEE PART DETAILS - PRI; SCREW, TAPPING (5X10) (Honda Code 0565218).

$1.49

$

Usually ships in 3-6 days

0

18

Honda 94001-05080-0S

SEE PART DETAILS - PRI; NUT, HEX. (5MM) (Honda Code 0285783).

$1.49

$

Usually ships in 3-6 days

0

19

Honda 94111-05800

SEE PART DETAILS - PRI; WASHER, SPRING (5MM) (Honda Code 0251215).

$1.49

$

Usually ships in 3-6 days

0

20

Honda 95002-70000

CLIP, TUBE (C11) (Honda Code 0053595).

$2.49

$

In Stock, Qty 5

0

21

Honda 95701-06016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16) (Honda Code 2410892).

$2.49

$

Usually ships in 3-6 days

0

22

Honda 95700-08012-00

SEE PART DETAILS - SUP; BOLT, FLANGE (8X12) (Honda Code 0496455).

$

$

Currently unavailable

22

Honda 95701-08012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X12) (Honda Code 2581379).

$1.49

$

In Stock, only 2 left!

0

23

Honda 95701-08045-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X45) (Honda Code 2533859).

$1.99

$

In Stock, Qty 20+

0
