G400 K1 QB6 (G400) - Honda Engine, Made in Japan (SN: G400-1200001 - G400-1519048) IGNITION COIL + C.D.I. UNIT Parts Diagram

Engine, Made in Japan

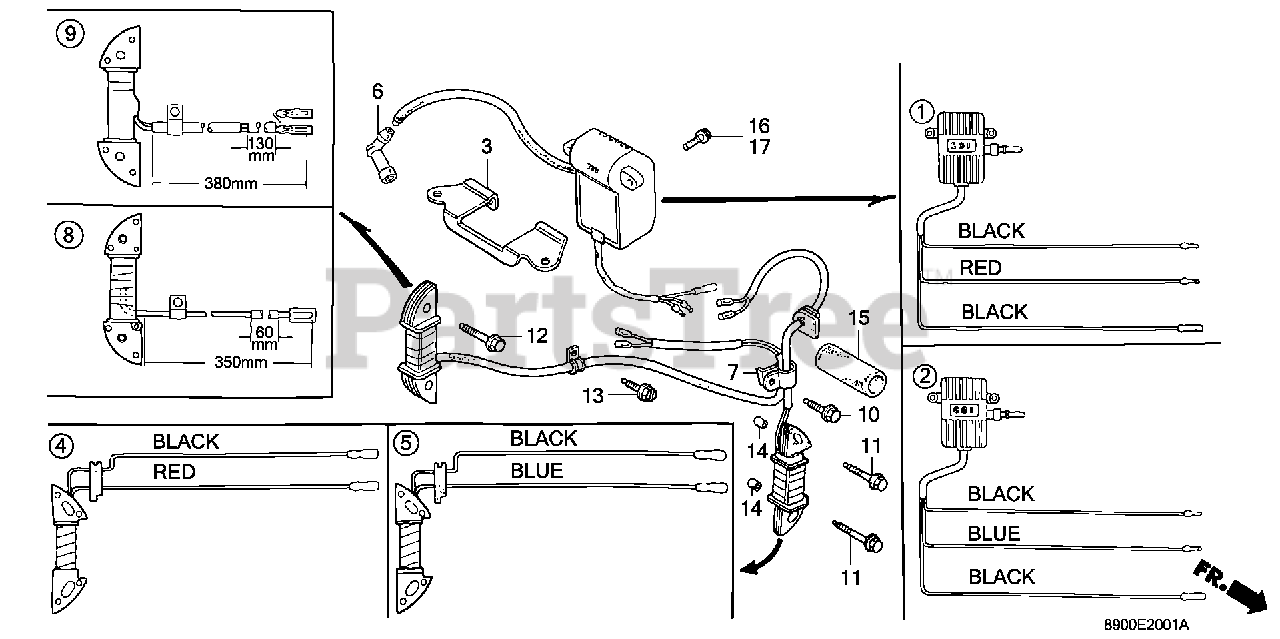

IGNITION COIL + C.D.I. UNIT Parts Diagram

  • Title

1

Honda 30580-890-732

MODULE, IGNITION CONTROL (CDI) (NOT AVAILABLE)

$

$

Not available

3

Honda 30586-889-730

STAY, IGNITION CONTROL MODULE (CDI)

Note: (Optional).

$12.99

$

Usually ships in 3-6 days

0

4

Honda 30590-889-732

COIL ASSY., EXCITER

$

$

Not available

6

Honda 30700-890-003

CAP ASSY., NOISE SUPPRESSOR (NOT AVAILABLE)

Note: Use up to Engine SN 1508724.

$

$

Currently unavailable

6

Honda 30700-890-013

SEE PART DETAILS - PRI; CAP ASSY., NOISE SUPPRESSOR (NOT AVAILABLE)

Note: (Optional). Use from Engine SN 1508725.

$

$

Not available

7

Honda 30702-890-000

CLAMP, IGNITION WIRE

Note: (Optional).

$6.99

$

Usually ships in 3-6 days

0

10

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 20+

0

11

Honda 90015-883-000

BOLT, FLANGE (6X28) (CT200)

Note: (Optional).

$3.99

$

In Stock, Qty 8

0

14

Honda 94301-08140

PIN, DOWEL (8X14)

Note: (Optional).

$2.99

$

In Stock, Qty 8

0

15

Honda 95003-60006-20

TUBE, VINYL (22X27X60) (95003-60001-10M) (NOT AVAILABLE)

Note: (Optional).

$

$

Currently unavailable

16

Honda 95700-06012-08

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)

Note: (Optional).

$

$

Currently unavailable

16

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

Note: (Optional).

$2.49

$

In Stock, only 1 left!

0
