G35 Q1 (G35) - Honda Engine, Made in Japan (SN: G35-1000001 - G35-1101308) FUEL TANK + FUEL VALVE Parts Diagram

Engine, Made in Japan

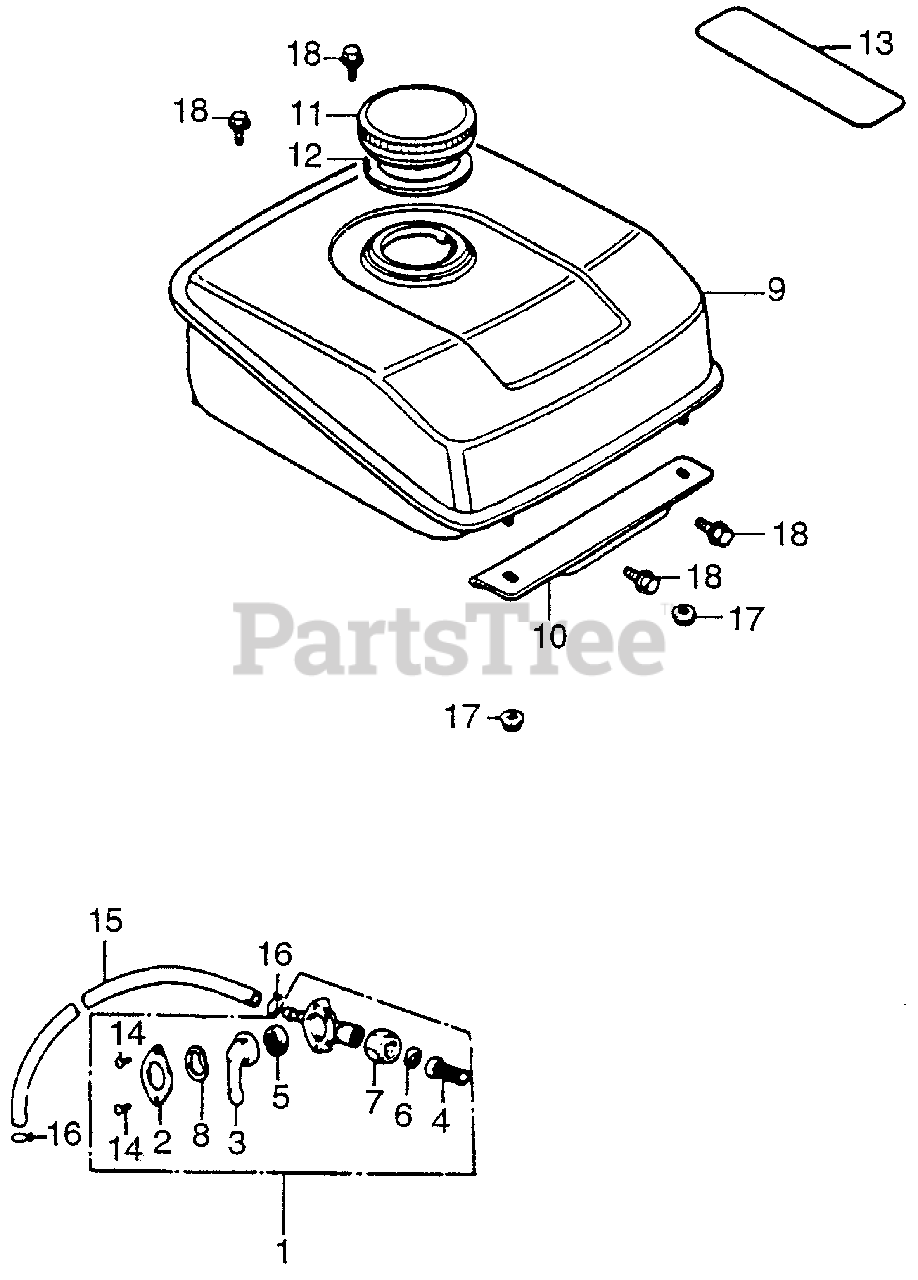

FUEL TANK + FUEL VALVE Parts Diagram

  • Title

1

Honda 16950-878-005

PETCOCK ASSY. (NOT AVAILABLE) (Honda Code 0441626).

$

$

Currently unavailable

2

Honda 16952-081-005

COVER, PETCOCK (NOT AVAILABLE) (Honda Code 0209759).

$

$

Currently unavailable

3

Honda 16953-081-005

LEVER, VALVE (NOT AVAILABLE) (Honda Code 0209767).

$

$

Currently unavailable

4

Honda 16954-081-015

SEE PART DETAILS - PRI; SCREEN, STRAINER (Honda Code 0441634).

$

$

Not available

5

Honda 16955-268-020

GASKET, VALVE (Honda Code 0042234).

$6.99

$

Usually ships in 3-6 days

0

6

Honda 16958-081-005

GASKET, FUEL STRAINER CUP (Honda Code 0442145).

$

$

Not available

7

Honda 16962-081-005

NUT, TURN BUCKLE (NOT AVAILABLE) (Honda Code 0209791).

$

$

Currently unavailable

8

Honda 16964-720-005

SEE PART DETAILS - PRI; SPRING, PETCOCK LEVER (Honda Code 1066786).
(Superseded to 16956-ZE1-811)

$4.49

$

In Stock, only 1 left!

0

9

Honda 17510-878-000XC

TANK, FUEL *NH31* (MCKINLEY WHITE) (NOT AVAILABLE) (Honda Code 0441691).

$

$

Currently unavailable

10

Honda 17521-878-000H

STAY, FUEL TANK *R8* (BRIGHT RED) (Honda Code 0441709).

$

$

Not available

11

Honda 17620-102-730

SEE PART DETAILS - PRI; CAP, FUEL FILLER (Honda Code 0835496).

$

$

Not available

12

Honda 17631-096-701

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP (Honda Code 2831444).
(Superseded to 17631-096-702)

$3.49

$

In Stock, only 2 left!

0

13

Honda 87522-836-670

SEE PART DETAILS - PRI; MARK A, CAUTION (Honda Code 0379461).

$

$

Not available

14

Honda 93500-03006-0A

SEE PART DETAILS - PRI; SCREW, PAN (3X6) (Honda Code 0166652).

$1.49

$

Usually ships in 3-6 days

0

15

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X100) (Honda Code 5137104).

Note: Use up to Engine SN 1005127.

$54.99

$

In Stock, only 4 left!

0

15

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X100) (Honda Code 5137104).

Note: Use up to Engine SN 1005127.

$54.99

$

In Stock, only 4 left!

0

15

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X110) (Honda Code 5137104).

Note: Use from Engine SN 1005128.

$54.99

$

In Stock, only 4 left!

0

16

Honda 95002-02080

CLIP, TUBE (B8) (Honda Code 0250647).

$2.49

$

In Stock, Qty 20+

0

17

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

18

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (Honda Code 2170793).

$2.49

$

In Stock, only 1 left!

0
