G35 Q1 (G35) - Honda Engine, Made in Japan (SN: G35-1000001 - G35-1101308) FUEL TANK Parts Diagram

Engine, Made in Japan

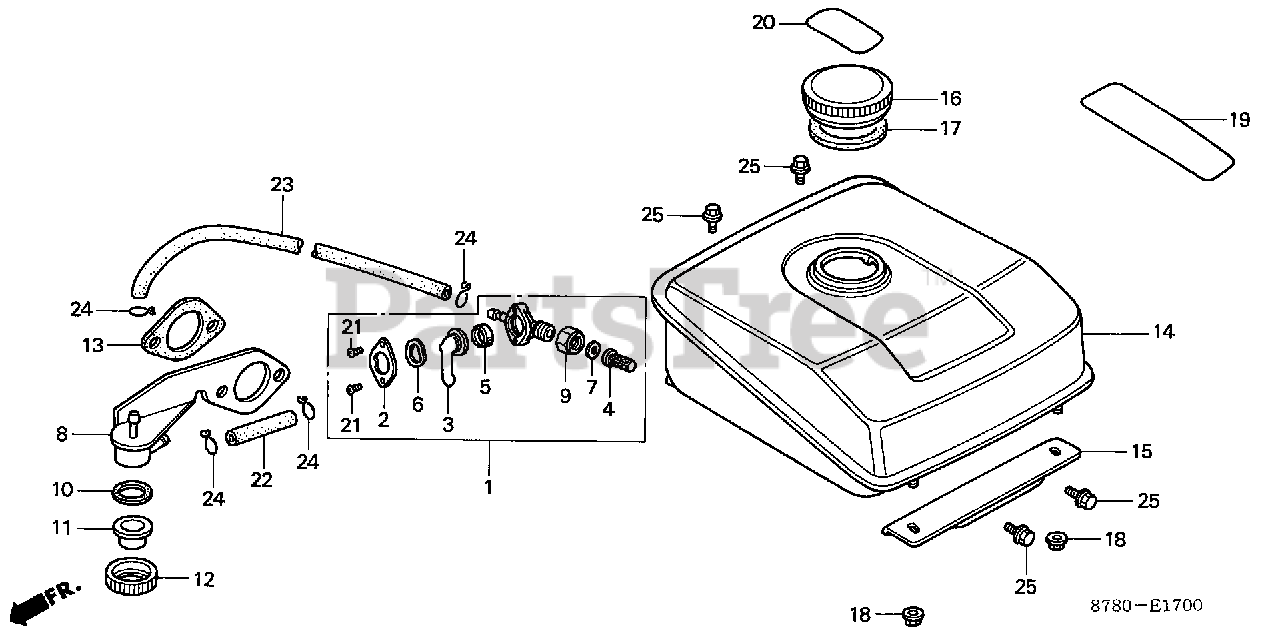

FUEL TANK Parts Diagram

  • Title

1

Honda 16950-878-005

PETCOCK ASSY. (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 16952-081-005

COVER, PETCOCK (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 16953-081-005

LEVER, PETCOCK (NOT AVAILABLE)

$

$

Currently unavailable

4

Honda 16954-081-015

SCREEN, STRAINER

$

$

Not available

5

Honda 16955-268-020

GASKET, PETCOCK VALVE

$6.49

$

Usually ships in 3-6 days

0

6

Honda 16956-ZE1-811

SEE PART DETAILS - PRI; SPRING, PETCOCK LEVER

$3.99

$

In Stock, only 1 left!

0

7

Honda 16958-081-005

GASKET, FUEL STRAINER CUP (NOT AVAILABLE)

$

$

Not available

9

Honda 16962-081-005

NUT, TURN BUCKLE (NOT AVAILABLE)

$

$

Currently unavailable

14

Honda 17510-878-000XC

TANK, FUEL (NOT AVAILABLE)

$

$

Currently unavailable

15

Honda 17521-878-000H

STAY, FUEL TANK

$

$

Not available

16

Honda 17620-044-010

SEE PART DETAILS - SUP; CAP, FUEL FILLER
(Superseded to 17620-102-730)

$

$

Not available

16

Honda 17620-102-730

SEE PART DETAILS - PRI; CAP, SUB-TANK

$

$

Not available

17

Honda 17631-096-701

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP
(Superseded to 17631-096-702)

$3.49

$

In Stock, only 2 left!

0

18

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

19

Honda 87522-836-670

MARK A, CAUTION

$

$

Not available

21

Honda 93500-03006-0A

SCREW, PAN (3X6)

$1.49

$

Usually ships in 3-6 days

0

23

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (95001-450(95001-45001-60M)

Note: Use up to Engine SN 1005127.

$54.99

$

In Stock, only 4 left!

0

23

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X110)

Note: Use from Engine SN 1005128.

$54.99

$

In Stock, only 4 left!

0

24

Honda 95002-02080

CLIP, TUBE (B8)

$2.49

$

In Stock, Qty 20+

0

25

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, only 1 left!

0
