G35 Q1 (G35) - Honda Engine, Made in Japan (SN: G35-1000001 - G35-1101308) FLYWHEEL + POINTS Parts Diagram

Engine, Made in Japan

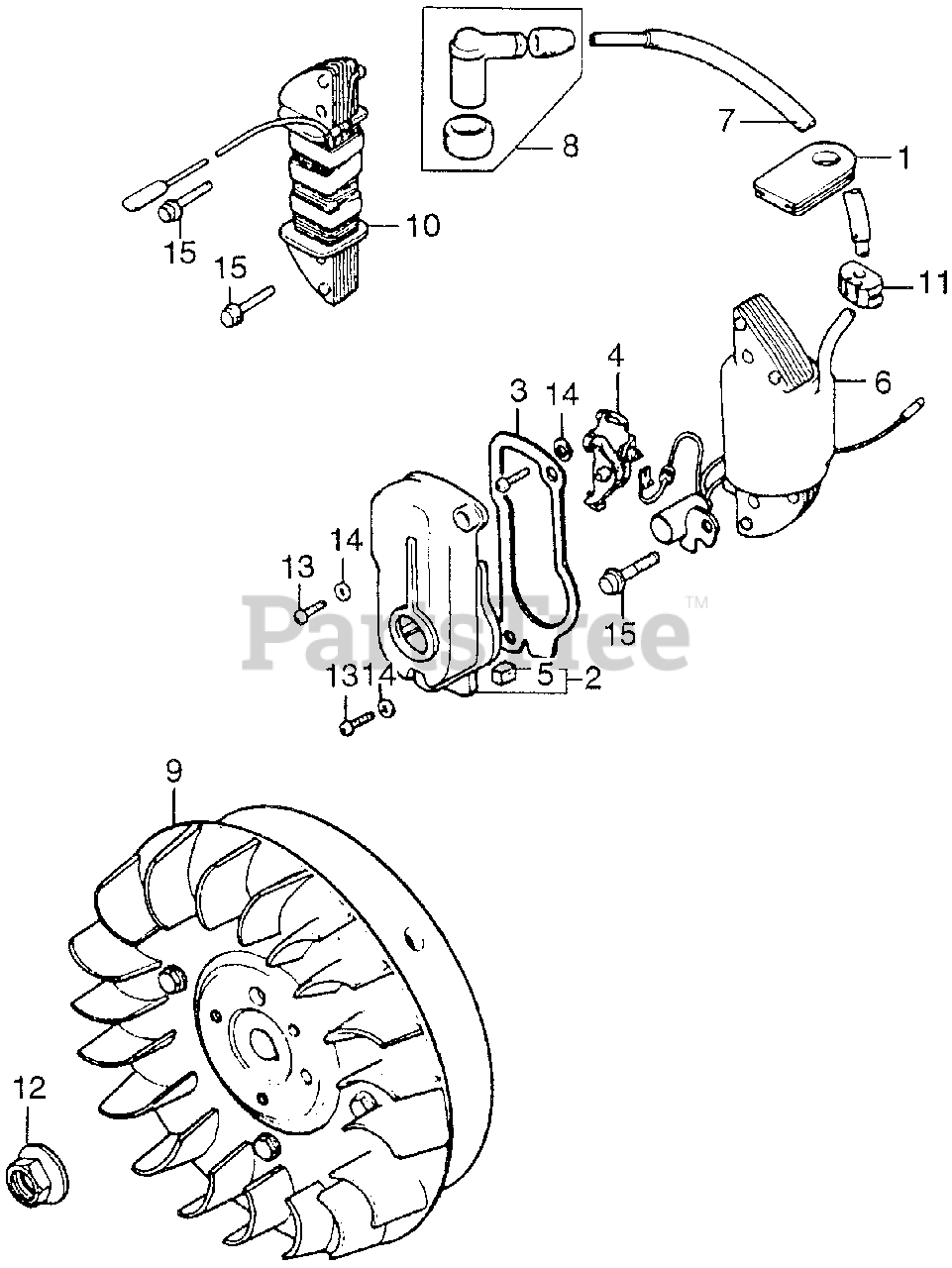

FLYWHEEL + POINTS Parts Diagram

  • Title

1

Honda 19905-878-000

GROMMET, WIRE (Honda Code 0441782).

$

$

Not available

2

Honda 30200-878-000

SEE PART DETAILS - PRI; COVER ASSY., POINTS (NOT AVAILABLE) (Honda Code 0476309).

$

$

Currently unavailable

3

Honda 30215-879-000

GASKET, POINT COVER (NOT AVAILABLE) (Honda Code 0476390).

Note: Use from Engine SN 1052396.

$

$

Currently unavailable

4

Honda 30280-878-003

POINTS ASSY. (Honda Code 0441923).

$55.99

$

Usually ships in 3-6 days

0

5

Honda 30290-878-003

FELT, OIL (Honda Code 0441931).

$

$

Not available

6

Honda 30560-878-013

SEE PART DETAILS - PRI; COIL ASSY., IGNITION (DENSO) (NOT AVAILABLE) (Honda Code 0488908).

$

$

Not available

7

Honda 30565-865-650

TUBE, IGNITION RUBBER (Honda Code 0379164).

$12.99

$

Usually ships in 3-6 days

0

8

Honda 30600-841-000

TERMINAL ASSY., IGNITION (Honda Code 0181289).

$

$

Not available

9

Honda 31200-878-003

FLYWHEEL ASSY. (Honda Code 0441956).

$

$

Not available

10

Honda 31511-878-003

LAMP COIL ASSY. (Honda Code 0673020).

$

$

Not available

11

Honda 32951-878-000

GROMMET, WIRE (Honda Code 0441964).

$

$

Not available

12

Honda 90201-878-003

SEE PART DETAILS - PRI; NUT, SPECIAL (14MM) (Honda Code 0442038).

$7.99

$

In Stock, only 1 left!

0

13

Honda 93500-04008-0A

SEE PART DETAILS - PRI; SCREW, PAN (4X8) (Honda Code 0156463).

$1.49

$

In Stock, only 4 left!

0

14

Honda 94101-04800

SEE PART DETAILS - PRI; WASHER, PLAIN (4MM) (Honda Code 0331462).

$1.49

$

Usually ships in 3-6 days

0

15

Honda 95800-06025-08

BOLT, FLANGE (6X25) (NOT AVAILABLE) (Honda Code 0442178).

$

$

Currently unavailable
