G35 Q1 (G35) - Honda Engine, Made in Japan (SN: G35-1000001 - G35-1101308) FLYWHEEL + IGNITION COIL Parts Diagram

Engine, Made in Japan

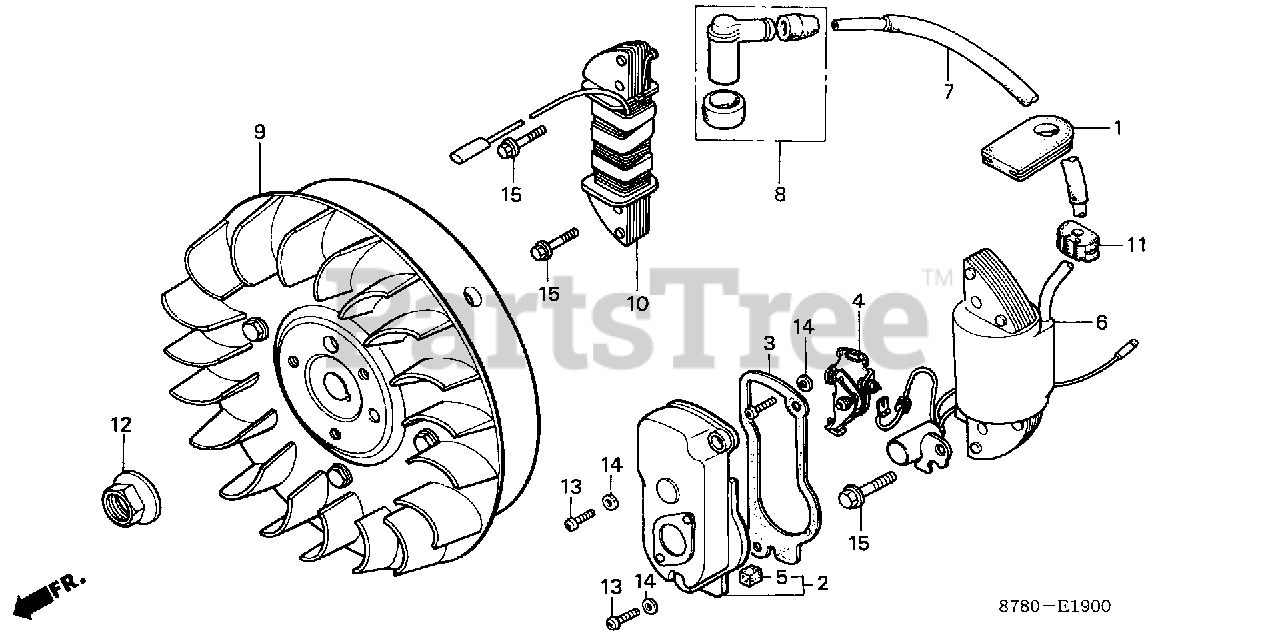

FLYWHEEL + IGNITION COIL Parts Diagram

  • Title

1

Honda 19905-878-000

GROMMET, CORD

$

$

Not available

2

Honda 30200-878-000

COVER ASSY., BREAKER (NOT AVAILABLE)

Note: Use from Engine SN 1052396.

$

$

Currently unavailable

2

Honda 30210-878-000

COVER, BREAKER

Note: Use up to Engine SN 1052395.

$

$

Currently unavailable

3

Honda 30215-879-000

GASKET, BREAKER COVER (NOT AVAILABLE)

Note: Use from Engine SN 1052396.

$

$

Currently unavailable

4

Honda 30280-878-003

POINTS ASSY.

$51.99

$

Usually ships in 3-6 days

0

5

Honda 30290-878-003

FELT, OIL

$

$

Not available

6

Honda 30560-878-003

COIL ASSY., IGNITION

Note: Use up to Engine SN 1057945.

$

$

Currently unavailable

6

Honda 30560-878-013

COIL ASSY., IGNITION (DENSO) (NOT AVAILABLE)

Note: Use from Engine SN 1057946.

$

$

Not available

7

Honda 30565-865-650

TUBE, IGNITION RUBBER

$11.99

$

Usually ships in 3-6 days

0

8

Honda 30600-841-000

TERMINAL ASSY., IGNITION (NOT AVAILABLE)

$

$

Not available

9

Honda 31200-878-003

FLYWHEEL ASSY.

$

$

Not available

10

Honda 31511-878-003

COIL ASSY., LAMP

Note: (Optional).

$

$

Not available

11

Honda 32951-878-000

GROMMET, WIRE

$

$

Not available

12

Honda 90201-878-003

NUT, SPECIAL (14MM)

$7.99

$

Usually ships in 3-6 days

0

13

Honda 93500-04008-0A

SCREW, PAN (4X8)

$1.49

$

In Stock, only 4 left!

0

14

Honda 94101-04800

WASHER, PLAIN (4MM)

$1.49

$

Usually ships in 3-6 days

0

15

Honda 95800-06025-08

BOLT, FLANGE (6X25) (NOT AVAILABLE)

$

$

Currently unavailable
