G35 Q1 (G35) - Honda Engine, Made in Japan (SN: G35-1000001 - G35-1101308) FAN COVER + SIDE COVER Parts Diagram

Engine, Made in Japan

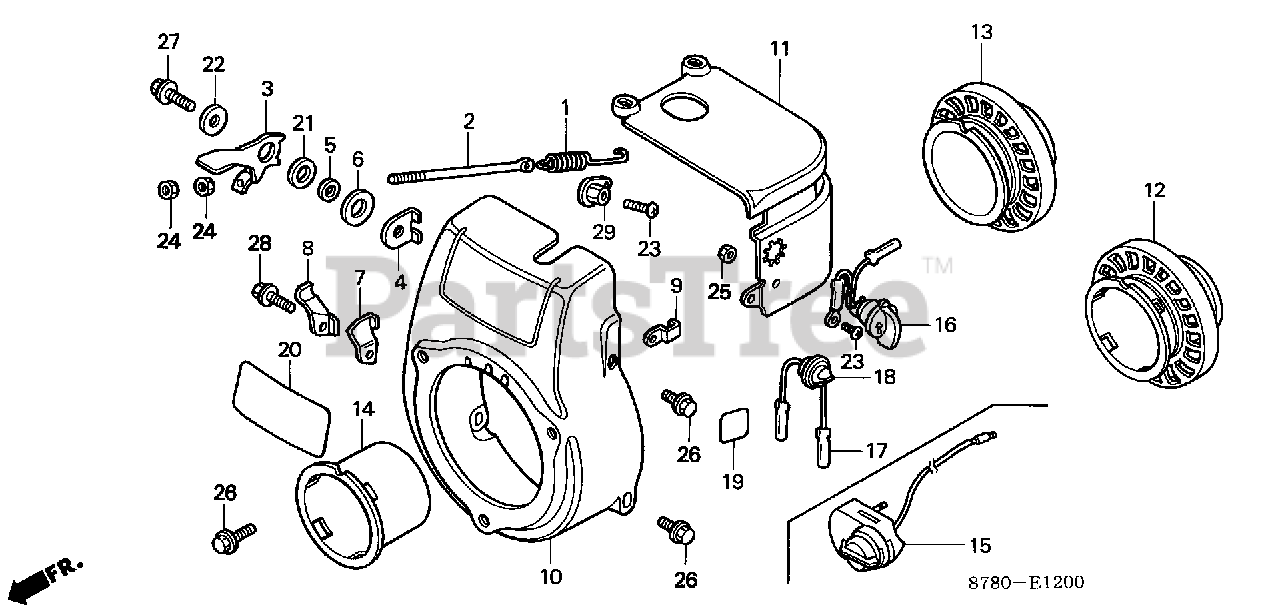

FAN COVER + SIDE COVER Parts Diagram

  • Title

1

Honda 16561-878-000

SPRING, GOVERNOR (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 16579-878-000

ROD, ADJUSTING (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 16571-878-000

LEVER, CONTROL

$

$

Not available

4

Honda 16572-878-000

STOPPER, LEVER

$

$

Not available

5

Honda 16573-878-000

SPACER, LEVER

$

$

Not available

6

Honda 16575-878-000

SPRING, LEVER

$

$

Not available

7

Honda 16591-878-010

STAY A, THROTTLE WIRE

$

$

Not available

8

Honda 16592-878-010

STAY B, THROTTLE WIRE

$

$

Not available

10

Honda 19610-878-000H

COVER, FAN (NOT AVAILABLE)

$

$

Currently unavailable

11

Honda 19621-878-000H

COVER, SIDE

$

$

Not available

12

Honda 28451-878-660

PULLEY, STARTER (NOT AVAILABLE)

Note: (Optional).

$

$

Currently unavailable

13

Honda 28451-878-810

PULLEY, STARTER

$

$

Not available

14

Honda 28454-878-000

PULLEY, STARTER

Note: (Optional). Use up to Engine SN 1045425.

$

$

Currently unavailable

14

Honda 28454-878-010

PULLEY, STARTER (NOT AVAILABLE)

Note: (Optional). Use from Engine SN 1045426.

$

$

Currently unavailable

16

Honda 36100-865-003

SWITCH ASSY., ENGINE STOP

$

$

Not available

17

Honda 36151-865-782

WIRE A, ENGINE SWITCH

Note: (Optional).

$

$

Not available

18

Honda 36151-873-740

GROMMET, SIDE COVER (NOT AVAILABLE)

Note: (Optional).

$

$

Currently unavailable

20

Honda 87521-878-660

PLATE, DESCRIPTION

$

$

Not available

21

Honda 90451-878-000

WASHER, THROTTLE LEVER (NOT AVAILABLE)

$

$

Currently unavailable

22

Honda 90545-292-000

WASHER (6.5X20)

$2.49

$

Usually ships in 3-6 days

0

23

Honda 93500-05008-0H

SCREW, PAN (5X8)

$1.49

$

Usually ships in 3-6 days

0

24

Honda 94001-04080-0S

NUT, HEX. (4MM)

$1.49

$

Usually ships in 3-6 days

0

25

Honda 94001-050800S

NUT, HEX. (5MM)
(Superseded to 94001-05080-0S)

$1.49

$

Usually ships in 3-6 days

0

26

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, only 1 left!

0

27

Honda 95701-06016-08

BOLT, FLANGE (6X16)

$1.99

$

In Stock, Qty 5

0

28

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, only 1 left!

0
