G35 Q1 (G35) - Honda Engine, Made in Japan (SN: G35-1000001 - G35-1101308) FAN COVER + SIDE COVER Parts Diagram

Engine, Made in Japan

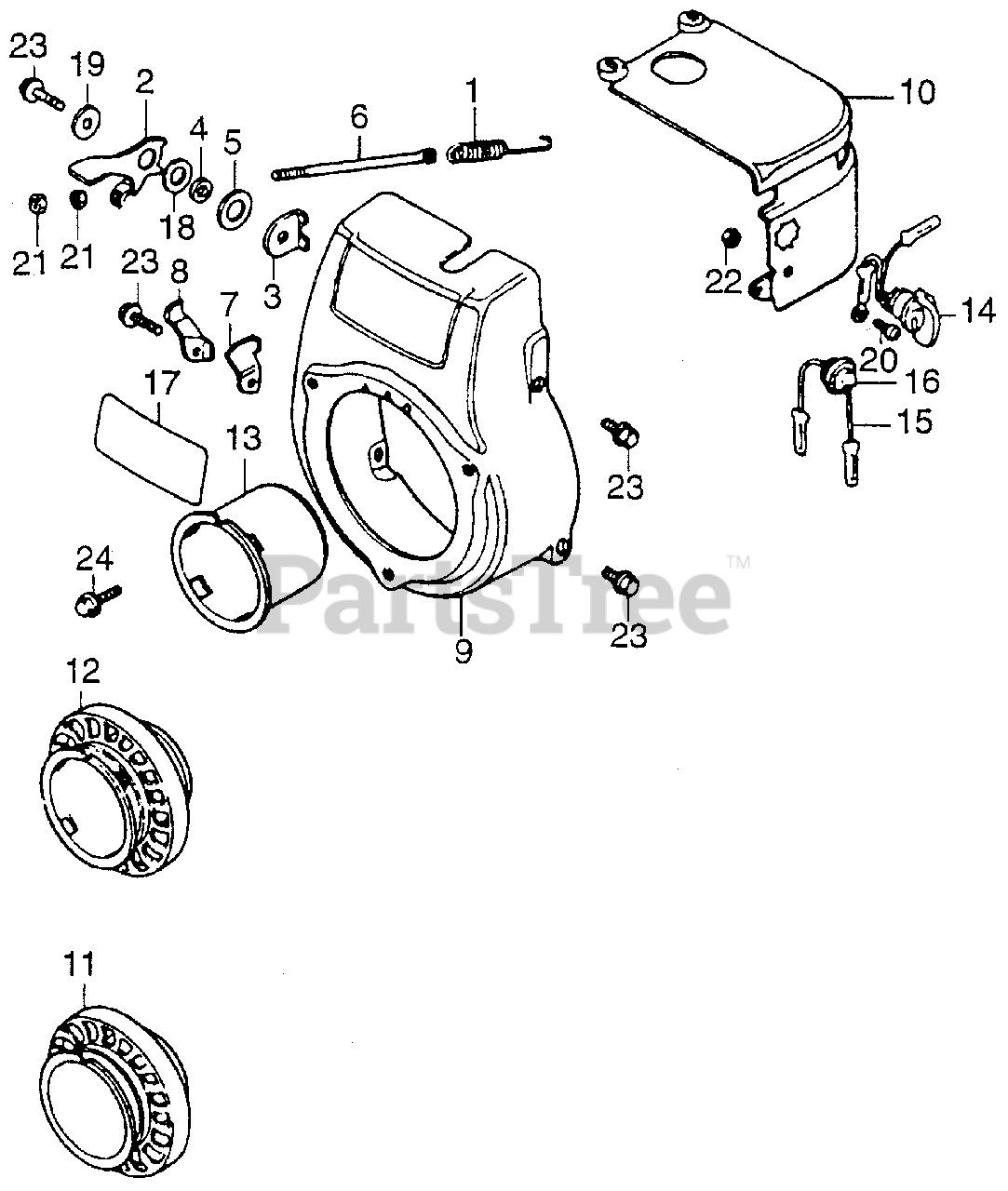

FAN COVER + SIDE COVER Parts Diagram

  • Title

1

Honda 16561-878-000

SPRING, GOVERNOR (Honda Code 0441527).

$

$

Currently unavailable

2

Honda 16571-878-000

LEVER, CONTROL (Honda Code 0441543).

$

$

Not available

3

Honda 16572-878-000

STOPPER, LEVER (Honda Code 0441550).

$

$

Not available

4

Honda 16573-878-000

SPACER, LEVER (Honda Code 0441568).

$

$

Not available

5

Honda 16575-878-000

SPRING, LEVER (Honda Code 0441576).

$

$

Not available

6

Honda 16579-878-000

ROD, ADJUSTING (Honda Code 0441592).

$

$

Currently unavailable

7

Honda 16591-878-010

SEE PART DETAILS - PRI; STAY A, THROTTLE CABLE (Honda Code 0453027).

$

$

Not available

8

Honda 16592-878-010

SEE PART DETAILS - PRI; STAY B, THROTTLE CABLE (Honda Code 0453019).

$

$

Not available

9

Honda 19610-878-000H

COVER, FAN *R8* (BRIGHT RED) (NOT AVAILABLE) (Honda Code 0441766).

$

$

Currently unavailable

10

Honda 19621-878-000H

COVER, SIDE *R8* (BRIGHT RED) (Honda Code 0441774).

$

$

Not available

11

Honda 28451-878-660

PULLEY, STARTER (Honda Code 0673004).

$

$

Currently unavailable

12

Honda 28451-878-810

PULLEY, STARTER (Honda Code 0441873).

$

$

Not available

13

Honda 28454-878-010

SEE PART DETAILS - PRI; PULLEY, STARTER (NOT AVAILABLE) (Honda Code 0476317).

$

$

Currently unavailable

14

Honda 36100-865-003

SEE PART DETAILS - PRI; SWITCH ASSY., ENGINE STOP (Honda Code 0436782).

$

$

Not available

15

Honda 36151-865-782

WIRE A, ENGINE SWITCH (Honda Code 0441980).

$

$

Not available

16

Honda 36151-873-740

GROMMET, COVER (NOT AVAILABLE) (Honda Code 0441998).

$

$

Currently unavailable

17

Honda 87521-878-660

PLATE, DESCRIPTION (Honda Code 0442004).

$

$

Not available

18

Honda 90451-878-000

WASHER, THROTTLE LEVER (NOT AVAILABLE) (Honda Code 0454454).

$

$

Currently unavailable

19

Honda 90545-292-000

WASHER (6.5X20) (Honda Code 0144915).

$2.49

$

Usually ships in 3-6 days

0

20

Honda 93500-05008-0H

SEE PART DETAILS - PRI; SCREW, PAN (5X8) (Honda Code 0359422).

$1.49

$

Usually ships in 3-6 days

0

21

Honda 94001-04080-0S

SEE PART DETAILS - PRI; NUT, HEX. (4MM) (Honda Code 0562116).

$1.49

$

Usually ships in 3-6 days

0

22

Honda 94001-050800S

SEE PART DETAILS - PRI; NUT, HEX. (5MM) (Honda Code 0285783).
(Superseded to 94001-05080-0S)

$1.49

$

Usually ships in 3-6 days

0

23

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (Honda Code 2170793).

$2.49

$

In Stock, only 1 left!

0

24

Honda 95701-06016-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16) (Honda Code 2105807).

$1.99

$

In Stock, Qty 5

0
