G35 Q1 (G35) - Honda Engine, Made in Japan (SN: G35-1000001 - G35-1101308) CYLINDER + CRANKCASE COVER Parts Diagram

Engine, Made in Japan

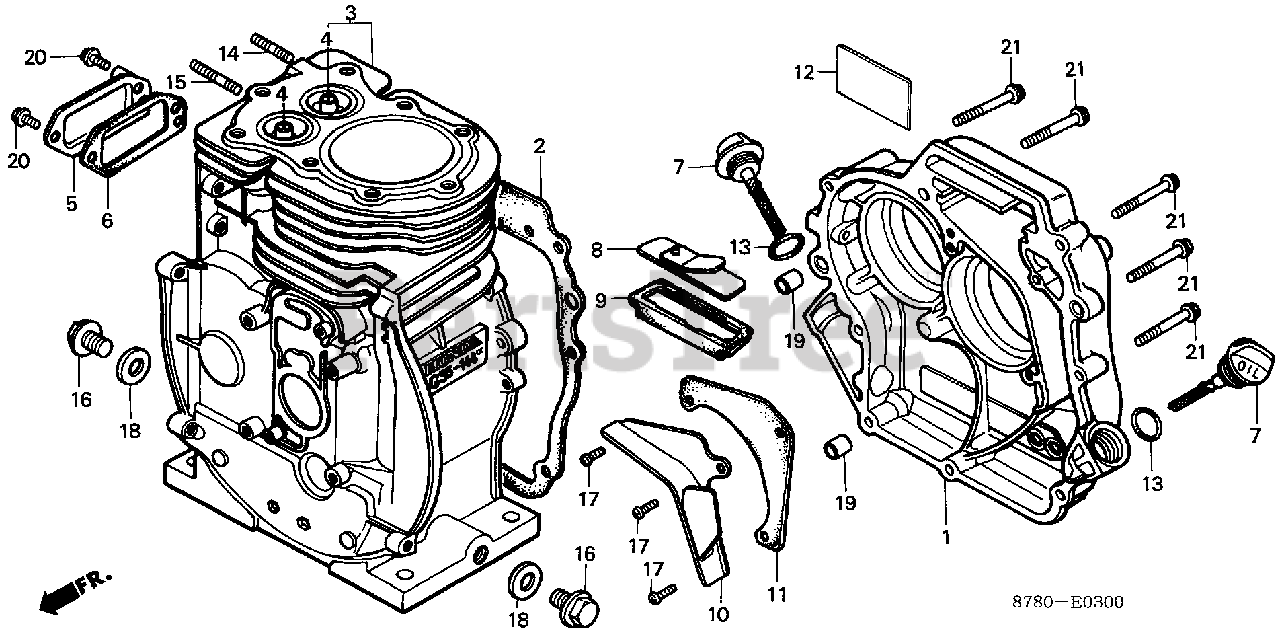

CYLINDER + CRANKCASE COVER Parts Diagram

  • Title

1

Honda 11310-878-660

COVER, CRANKCASE

Note: Use up to Engine SN 1013703.

$

$

Currently unavailable

1

Honda 11310-878-661

COVER, CRANKCASE (NOT AVAILABLE)

Note: Use from Engine SN 1013704.

$

$

Currently unavailable

2

Honda 11381-878-000

GASKET, CRANKCASE COVER (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 12100-878-010

CYLINDER

$

$

Not available

4

Honda 12134-878-000

GUIDE, VALVE (OVER SIZE) (NOT AVAILABLE)

Note: (Optional).

$

$

Currently unavailable

5

Honda 12361-878-000

COVER, TAPPET ROOM

$

$

Not available

6

Honda 12375-878-000

GASKET, TAPPET COVER (NOT AVAILABLE)

$

$

Currently unavailable

7

Honda 15620-878-000

CAP, OIL (NOT AVAILABLE)

$

$

Not available

8

Honda 15710-878-000

PLATE, BREATHER

$

$

Not available

9

Honda 15721-878-000

RUBBER, BREATHER PLATE

$

$

Not available

10

Honda 15731-878-000

SEPARATOR, BREATHER

$

$

Not available

11

Honda 15735-878-000

GASKET, SEPARATOR

$

$

Not available

13

Honda 91303-800-000

O-RING (16MM)

$2.99

$

In Stock, only 1 left!

0

14

Honda 92900-06016-0B

SEE PART DETAILS - PRI; BOLT, STUD (6X16)

$1.99

$

Usually ships in 3-6 days

0

15

Honda 92900-06025-0B

BOLT, STUD (6X25)

$2.49

$

Usually ships in 3-6 days

0

16

Honda 92800-12000

BOLT, DRAIN PLUG (12MM)

$5.49

$

In Stock, only 2 left!

0

17

Honda 93500-05012-0H

SCREW, PAN (5X12)

$1.49

$

Usually ships in 3-6 days

0

18

Honda 94109-12000

WASHER, DRAIN PLUG (12MM)

$1.49

$

In Stock, Qty 20+

0

19

Honda 94301-08140

PIN, DOWEL (8X14)

$2.99

$

In Stock, Qty 8

0

20

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, only 1 left!

0

21

Honda 95701-06032-08

BOLT, FLANGE (6X32)

$2.49

$

In Stock, only 4 left!

0
