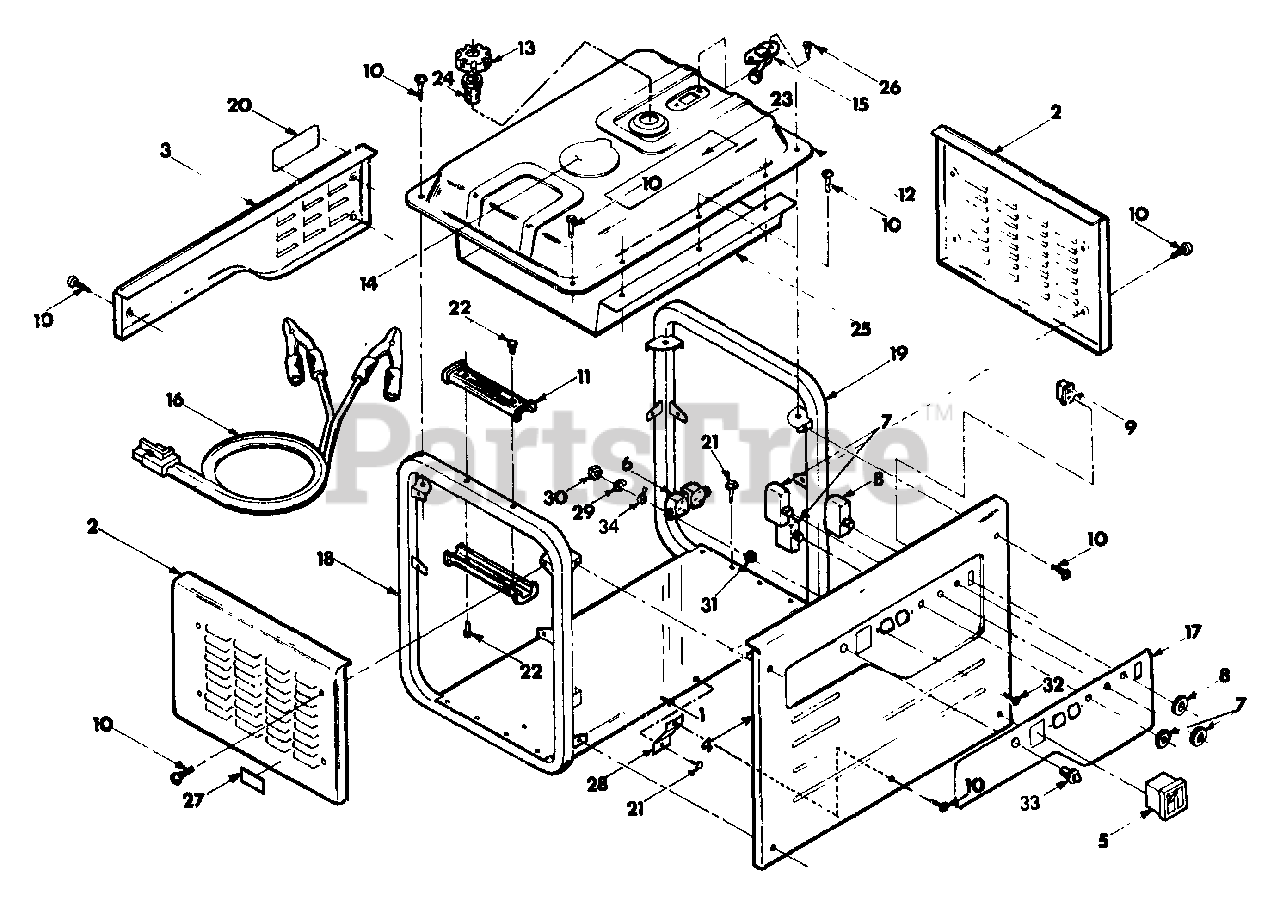

G3000 (9072-0) - Generac 2,250 Watt Portable Generator Cradle Parts Diagram

2,250 Watt Portable Generator

Cradle Parts Diagram

  • Title

1

Briggs & Stratton 73015

BASE, Engine Cradle
(Superseded to 7073015YP)

$15.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 73011

PANEL, End

$

$

Not available

3

Briggs & Stratton 73008

PANEL, Exhaust Muffler
(Superseded to 7073008YP)

$3.49

$

In Stock, only 1 left!

0

4

Briggs & Stratton 75955

PANEL, Receptacle & Control

$

$

Currently unavailable

5

Briggs & Stratton 66817

SWITCH, Engine Run/Stop
(Superseded to 66817GS)

$39.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 76248

RECEPTACLE- 120 volts, 15 amp

$

$

Currently unavailable

7

Briggs & Stratton 75207D

BREAKER, Circuit- 15 amp
(Superseded to 75207DGS)

$13.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 75207B

BREAKER, Circuit- 10 d-c amps
(Superseded to 75207BGS)

$12.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 6720753

RECEPTACLE, Battery Charge

$

$

Currently unavailable

10

Briggs & Stratton 56893

SCREW (Crimptite)- No. 10-32 x 1/2"
(Superseded to 56893GS)

$3.49

$

In Stock, only 1 left!

0

11

Briggs & Stratton 66450

COVER, Handle

$

$

Not available

12

Briggs & Stratton 69661

TANK, Fuel- 2.34 U.S. Gallons

$

$

Not available

13

Briggs & Stratton 69658

CAP, Fuel Tank

$

$

Currently unavailable

14

Briggs & Stratton 64690B

COVER, Spark Plug Access

$

$

Currently unavailable

15

Briggs & Stratton 66391B

INDICATOR, Fuel Level

$

$

Not available

16

Briggs & Stratton 71394

CABLE, Battery Charge
(Superseded to 71394GS)

$42.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 75903

DECAL- Receptacle Panel

$

$

Currently unavailable

18

Briggs & Stratton 72275

CRADLE, Engine End

$

$

Currently unavailable

19

Briggs & Stratton 72276

CRADLE, Generator End
(Superseded to 7072276YP)

$62.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 75957

DECAL- Caution!-Hot!
(Superseded to 7075957SM)

$73.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 58442

SCREW (Crimptite)- 1/4"-20 x 1/2"

$

$

Currently unavailable

22

Briggs & Stratton 66831

RIVET (Black Anodized)

$

$

Not available

23

Briggs & Stratton 75951

DECAL- Caution!

$

$

Currently unavailable

24

Briggs & Stratton 70630

FILTER, Fuel

$

$

Currently unavailable

25

Briggs & Stratton 74743

SHIELD, Fuel Tank Heat

$

$

Currently unavailable

26

Briggs & Stratton 52749

SCREW, Machine- M5-0.80 x 12mm

$

$

Currently unavailable

27

Briggs & Stratton 75956

DECAL- Fuel Shutoff

$

$

Currently unavailable

28

Briggs & Stratton 73745

BRACE, Panel
(Superseded to 7073745YP)

$12.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 22264

LOCKWASHER- No. 8

$

$

Not available

30

Briggs & Stratton 22471

NUT, Hex - No. 8-32
(Superseded to 22471GS)

$3.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 23365

WASHER (Shakeproof)- No. 8
(Superseded to 5023365)

$462.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 36917

SCREW- No. 8-32 x 3/8"
(Superseded to 797483)

$4.49

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 71381

LAMP, Low Oil Indicator

$

$

Currently unavailable

34

Briggs & Stratton 74138

ADAPTER, Male Disconnect
(Superseded to 7074138YP)

$54.99

$

In Stock, only 1 left!

0
