G300 VB6 (G300) - Honda Engine, Made in Japan (SN: G300-1000001 - G300-1457696) CYLINDER Parts Diagram

Engine, Made in Japan

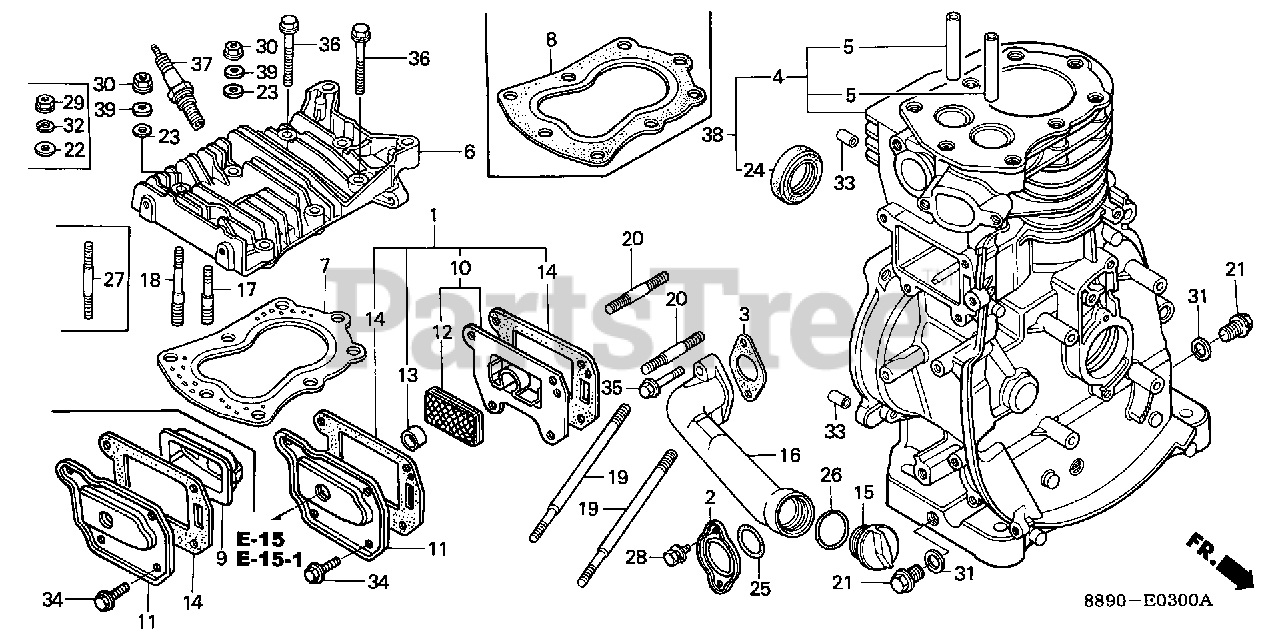

CYLINDER Parts Diagram

  • Title

1

Honda 06123-889-305

CASE KIT, BREATHER (NOT AVAILABLE)

Note: (Optional). Use up to Engine SN 1136497.

$

$

Currently unavailable

2

Honda 11210-822-010

COVER, OIL PAN HOLE

$4.49

$

Usually ships in 3-6 days

0

3

Honda 11211-822-000

GASKET, OIL PAN HOLE COVER (NOT AVAILABLE)

Note: (Optional).

$

$

Currently unavailable

4

Honda 12100-889-335

CYLINDER (CRANKSHAFT P.T.O.)

$

$

Not available

4

Honda 12100-889-335

CYLINDER (CRANKSHAFT P.T.O.)

Note: Use up to Engine SN 1103202.

$

$

Not available

4

Honda 12100-889-345

CYLINDER

Note: Use from Engine SN 1103203.

$1025.99

$

Usually ships in 3-6 days

0

5

Honda 12134-889-305

GUIDE, VALVE

Note: (Optional).

$13.99

$

Usually ships in 3-6 days

0

6

Honda 12221-889-305

CYLINDER HEAD

Note: Use up to Engine SN 1109701.

$

$

Currently unavailable

6

Honda 12221-889-315

CYLINDER HEAD (NOT AVAILABLE)

Note: Use from Engine SN 1109702.

$

$

Not available

8

Honda 12281-889-315

GASKET, CYLINDER HEAD

$36.99

$

Usually ships in 3-6 days

0

9

Honda 12360-889-010

CASE, BREATHER

Note: Use up to Engine SN 1136497.

$

$

Not available

10

Honda 12360-889-010

CASE, BREATHER

Note: Use from Engine SN 1136498.

$

$

Not available

11

Honda 12361-889-000

COVER, TAPPET ROOM

$12.99

$

Usually ships in 3-6 days

0

12

Honda 12367-883-003

FILTER, BREATHER

Note: Use from Engine SN 1136498.

$3.99

$

Usually ships in 3-6 days

0

13

Honda 12369-883-000

SEAL, BREATHER

Note: Use from Engine SN 1136498.

$4.49

$

Usually ships in 3-6 days

0

14

Honda 12375-889-000

GASKET, TAPPET COVER

Note: Use up to Engine SN 1136497.

$

$

Not available

14

Honda 12375-889-000

GASKET, TAPPET COVER

Note: Use from Engine SN 1136498.

$

$

Not available

15

Honda 15611-921-000

CAP, OIL (YELLOW)

Note: (Optional).

$14.99

$

Usually ships in 3-6 days

0

16

Honda 15632-890-010

PIPE, OIL

Note: (Optional).

$

$

Not available

17

Honda 90032-889-000

BOLT, STUD (M8XM10X63)

Note: Use from Engine SN 1103183.

$8.99

$

Usually ships in 3-6 days

0

18

Honda 90033-889-000

BOLT, STUD (M8XM10X81)

Note: Use from Engine SN 1103183.

$10.99

$

Usually ships in 3-6 days

0

19

Honda 90042-890-010

BOLT, STUD (8X110)

Note: Use up to Engine SN 1106022.

$8.99

$

Usually ships in 3-6 days

0

19

Honda 90042-890-680

BOLT, STUD (8X104)

Note: Use from Engine SN 1106023.

$9.49

$

Usually ships in 3-6 days

0

20

Honda 90047-883-000

BOLT, STUD (8X35)

$5.49

$

Usually ships in 3-6 days

0

21

Honda 90131-883-000

SEE PART DETAILS - SUP; BOLT, DRAIN PLUG (12X15)

$

$

Not available

21

Honda 90131-896-650

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG (12X15)

$5.49

$

In Stock, Qty 11

0

22

Honda 90402-822-000

WASHER, HEAD (8MM)

Note: Use up to Engine SN 1103182.

$1.99

$

Usually ships in 3-6 days

0

23

Honda 90430-657-000

WASHER (23X8.3X3.2)

Note: Use from Engine SN 1103183.

$9.49

$

In Stock, only 1 left!

0

24

Honda 91201-Z0T-801

SEE PART DETAILS - PRI; OIL SEAL (25X41X6)

$9.49

$

In Stock, Qty 11

0

24

Honda 91202-883-005

SEE PART DETAILS - SUP; OIL SEAL (25X41X6)
(Superseded to 91201-Z0T-801)

$9.49

$

In Stock, Qty 11

0

25

Honda 91301-028-000

O-RING (27X2.0)

$3.99

$

Usually ships in 3-6 days

0

26

Honda 91301-805-000

O-RING (26X2.7)

Note: (Optional).

$5.49

$

In Stock, Qty 10

0

27

Honda 92700-08065-3B

BOLT, STUD (8X65)

Note: Use from Engine SN 1003332 to 1007176.

$

$

Currently unavailable

27

Honda 92700-08080-3B

BOLT, STUD (8X80) (NOT AVAILABLE)

Note: Use up to Engine SN 1003331.

$

$

Currently unavailable

28

Honda 93402-06012-08

BOLT-WASHER (6X12)

$2.49

$

Usually ships in 3-6 days

0

29

Honda 94050-08080

NUT, FLANGE (8MM)

Note: Use up to Engine SN 1103182.

$1.49

$

In Stock, Qty 15

0

30

Honda 94071-08080

NUT-WASHER (8MM)

Note: Use from Engine SN 1103183.

$1.99

$

Usually ships in 3-6 days

0

31

Honda 94109-12000

WASHER, DRAIN PLUG (12MM)

$1.49

$

In Stock, Qty 20+

0

32

Honda 94111-08000

WASHER, SPRING (8MM)

Note: Use up to Engine SN 1103182.

$1.49

$

Usually ships in 3-6 days

0

33

Honda 94301-08140

PIN, DOWEL (8X14)

$2.99

$

In Stock, Qty 8

0

34

Honda 95701-06012-08

BOLT, FLANGE (6X12)

$2.49

$

In Stock, only 1 left!

0

35

Honda 95700-06025-08

BOLT, FLANGE (6X25)

Note: (Optional).

$2.49

$

Usually ships in 3-6 days

0

35

Honda 95701-06025-08

BOLT, FLANGE (6X25)

Note: (Optional).

$2.49

$

Usually ships in 3-6 days

0

36

Honda 95730-08050-08

BOLT, FLANGE (8X50) (NOT AVAILABLE)

Note: Use up to Engine SN 1103182.

$

$

Currently unavailable

37

Honda 98076-54710

SPARK PLUG (B-4H) (NGK)

Note: (Optional).

$3.49

$

Usually ships in 3-6 days

0

37

Honda 98076-54716

SPARK PLUG (BR-4HS) (NGK)

Note: (Optional).

$3.99

$

In Stock, Qty 7

0

37

Honda 98076-54720

SPARK PLUG (W14F-U) (DENSO)

Note: (Optional).

$3.49

$

Usually ships in 3-6 days

0

37

Honda 98076-54757

SPARK PLUG (W14FR-U)

Note: (Optional).

$3.49

$

Usually ships in 3-6 days

0

37

Honda 98076-54917

SEE PART DETAILS - PRI; SPARK PLUG (BPR4HS-10)

Note: (Optional).

$3.99

$

In Stock, only 3 left!

0

37

Honda 98076-54919

SEE PART DETAILS - PRI; SPARK PLUG (BP4HS-10)

Note: (Optional).

$

$

Not available

37

Honda 98076-54921

SPARK PLUG (W14FP-UL10) (DENSO)

Note: (Optional).

$3.49

$

Usually ships in 3-6 days

0

37

Honda 98076-54954

SPARK PLUG (W14FPR-UL10) (DENSO)

Note: (Optional).

$3.99

$

Usually ships in 3-6 days

0

37

Honda 98076-56724

SPARK PLUG (W20FS-U) (DENSO)

Note: (Optional).

$3.49

$

Usually ships in 3-6 days

0

37

Honda 98076-56927

SPARK PLUG (W20FPR-U10) (DENSO)

Note: (Optional).

$3.99

$

Usually ships in 3-6 days

0
