G300 SB7 (G300) - Honda Engine, Made in Japan (SN: G300-1000001 - G300-1457696) MUFFLER Parts Diagram

Engine, Made in Japan

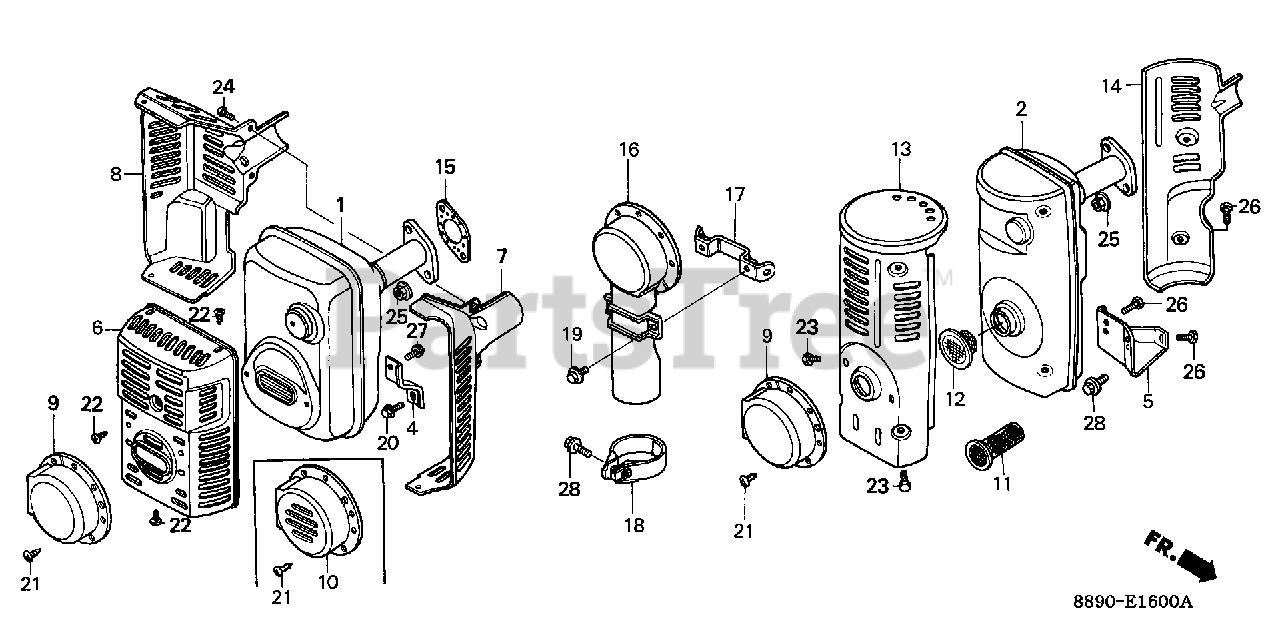

MUFFLER Parts Diagram

  • Title

1

Honda 18310-890-000

MUFFLER

$179.99

$

Usually ships in 3-6 days

0

2

Honda 18310-890-731

MUFFLER

Note: (Optional). Use up to Engine SN 1007390.

$

$

Currently unavailable

2

Honda 18310-890-732

MUFFLER

Note: (Optional). Use from Engine SN 1007391 to 1023749.

$

$

Currently unavailable

2

Honda 18310-890-733

MUFFLER

Note: (Optional). Use from Engine SN 1023750 to 1058336.

$

$

Currently unavailable

2

Honda 18310-890-734

MUFFLER

Note: (Optional). Use from Engine SN 1058337 to 1100475.

$

$

Currently unavailable

2

Honda 18310-890-735

SEE PART DETAILS - SUP; MUFFLER

Note: (Optional). Use from Engine SN 1100476.

$

$

Not available

4

Honda 18320-889-010

STAY, MUFFLER

$6.99

$

Usually ships in 3-6 days

0

5

Honda 18320-890-731

STAY, MUFFLER

Note: (Optional).

$

$

Not available

6

Honda 18323-889-000

PROTECTOR, FR. MUFFLER (NOT AVAILABLE)

$

$

Not available

7

Honda 18325-889-000

PROTECTOR, R. MUFFLER

$37.99

$

Usually ships in 3-6 days

0

8

Honda 18330-889-000

PROTECTOR, L. MUFFLER

$64.99

$

Usually ships in 3-6 days

0

9

Honda 18331-889-010

DEFLECTOR, MUFFLER

Note: (Optional).

$17.99

$

Usually ships in 3-6 days

0

12

Honda 18336-890-000

FLANGE, BAFFLE

Note: (Optional). Use from Engine SN 1100476.

$

$

Not available

13

Honda 18361-890-730

PROTECTOR A, MUFFLER (NOT AVAILABLE)

Note: (Optional).

$

$

Not available

14

Honda 18365-890-730

PROTECTOR B, MUFFLER

Note: (Optional).

$

$

Not available

15

Honda 18381-889-306

SEE PART DETAILS - SUP; GASKET, MUFFLER
(Superseded to 18381-889-800)

$6.49

$

Usually ships in 3-6 days

0

15

Honda 18381-889-800

SEE PART DETAILS - PRI; GASKET, MUFFLER

$6.49

$

Usually ships in 3-6 days

0

20

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 20+

0

21

Honda 90183-671-003

SCREW, TAPPING (4X8)
(Superseded to 90002-ZG0-003)

Note: (Optional).

$1.49

$

Usually ships in 3-6 days

0

22

Honda 90183-671-003

SCREW, TAPPING (4X8)
(Superseded to 90002-ZG0-003)

$1.49

$

Usually ships in 3-6 days

0

23

Honda 90003-890-000

BOLT-WASHER (6X10) (NOT AVAILABLE)

Note: (Optional). Use from Engine SN 1074048.

$

$

Currently unavailable

23

Honda 92101-06008-0B

BOLT, HEX. (6X8)

Note: (Optional). Use up to Engine SN 1074047.

$2.49

$

Usually ships in 3-6 days

0

24

Honda 93500-04006-0B

SCREW, PAN (4X6) (NOT AVAILABLE)

$

$

Currently unavailable

25

Honda 94050-08080

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 16

0

26

Honda 95701-06010-00

BOLT, FLANGE (6X10)

Note: (Optional).

$1.99

$

In Stock, Qty 13

0

27

Honda 95700-06010-08

BOLT, FLANGE (6X10)

$2.49

$

In Stock, Qty 20+

0

27

Honda 95701-06010-08

BOLT, FLANGE (6X10)

$2.49

$

In Stock, Qty 20+

0

28

Honda 95701-08014-08

BOLT, FLANGE (8X14)

Note: (Optional). Use up to Engine SN 1100097.

$2.49

$

Usually ships in 3-6 days

0

28

Honda 95701-08016-08

BOLT, FLANGE (8X16)

Note: (Optional). Use from Engine SN 1100098.

$2.49

$

In Stock, only 3 left!

0
