G300 QJ0 (G300) - Honda Engine, Made in Japan (SN: G300-1000001 - G300-1457696) STARTER MOTOR (2) Parts Diagram

Engine, Made in Japan

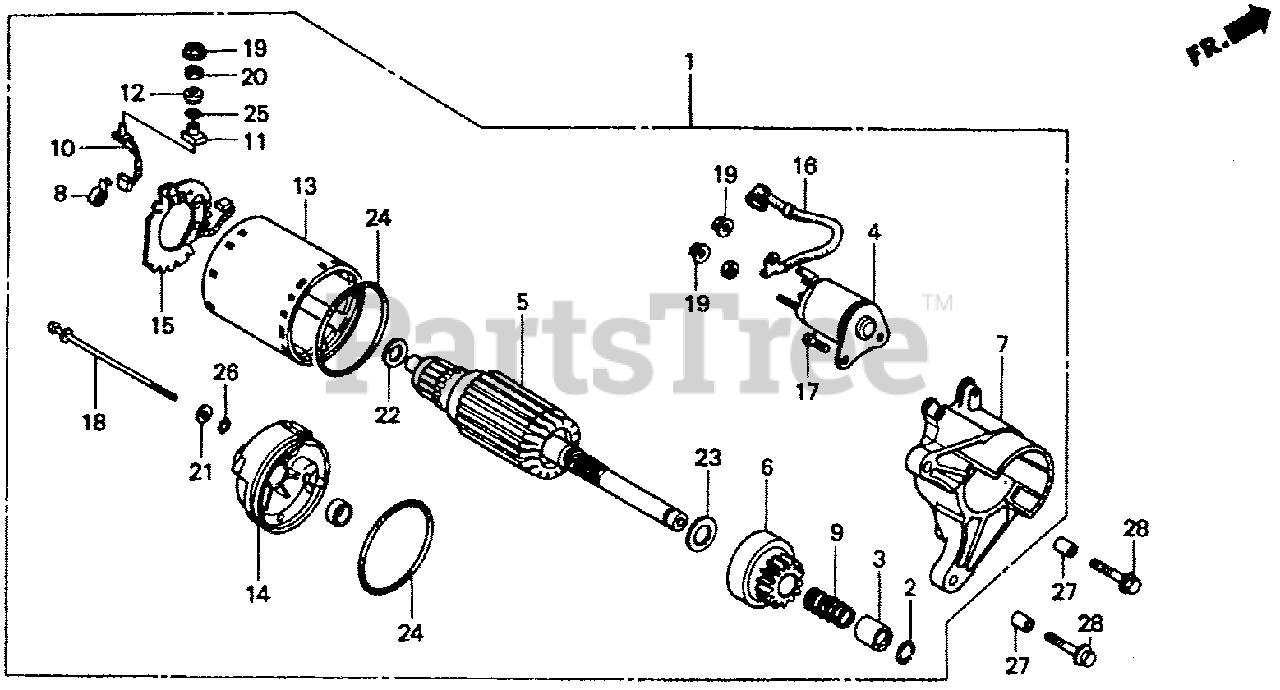

STARTER MOTOR (2) Parts Diagram

  • Title

1

Honda 31200-ZA1-003

MOTOR ASSY., STARTER (Honda Code 1238187).

Note: Use from Engine SN 1232729.

$813.99

$

Usually ships in 3-6 days

0

2

Honda 31201-ZA1-003

RING, SNAP (Honda Code 1238195).

Note: Use from Engine SN 1232729.

$2.99

$

Usually ships in 3-6 days

0

3

Honda 31202-ZA1-003

COLLAR, CLUTCH (Honda Code 1238203).

Note: Use from Engine SN 1232729.

$20.99

$

Usually ships in 3-6 days

0

4

Honda 31204-ZA0-003

SEE PART DETAILS - PRI; CONTACTOR ASSY. (Honda Code 2108298).

Note: Use from Engine SN 1232729.

$155.99

$

In Stock, only 2 left!

0

4

Honda 31204-ZA1-003

SEE PART DETAILS - SUP; CONTACTOR ASSY. (Honda Code 1412360).
(Superseded to 31204-ZA0-003)

Note: Use from Engine SN 1232729.

$155.99

$

In Stock, only 2 left!

0

5

Honda 31206-ZA1-003

ARMATURE (Honda Code 1238211).

Note: Use from Engine SN 1232729.

$230.99

$

Usually ships in 3-6 days

0

6

Honda 31207-ZA1-003

CLUTCH, OVERRUNNING (Honda Code 1238229).

Note: Use from Engine SN 1232729.

$199.99

$

Usually ships in 3-6 days

0

7

Honda 31208-ZA1-003

HOUSING, DRIVE SIDE (Honda Code 1238237).

Note: Use from Engine SN 1232729 to 1334391.

$

$

Not available

7

Honda 31208-ZA1-013

HOUSING, DRIVE SIDE (Honda Code 2059590).

Note: Use from Engine SN 1334392.

$135.99

$

Usually ships in 3-6 days

0

8

Honda 31212-ZA0-700

SPRING, BRUSH (Honda Code 2110260).

Note: Use from Engine SN 1355822.

$10.99

$

In Stock, only 1 left!

0

9

Honda 31212-ZA1-003

SPRING (Honda Code 1412378).

Note: Use from Engine SN 1232729.

$6.99

$

Usually ships in 3-6 days

0

10

Honda 31215-ZA1-003

BRUSH (Honda Code 1238245).

Note: Use from Engine SN 1232729 to 1334391.

$

$

Not available

10

Honda 31215-ZA1-013

BRUSH (Honda Code 2059608).

Note: Use from Engine SN 1334392.

$14.99

$

In Stock, only 3 left!

0

11

Honda 31216-ZA1-003

BUSHING, INSULATION (Honda Code 1412386).

Note: Use from Engine SN 1232729 to 1334391.

$

$

Currently unavailable

11

Honda 31216-ZA1-013

BUSHING, INSULATION (Honda Code 2059616).

Note: Use from Engine SN 1334392.

$8.99

$

Usually ships in 3-6 days

0

12

Honda 31217-ZA1-003

BUSHING, INSULATION (Honda Code 1412394).

Note: Use from Engine SN 1232729 to 1334391.

$

$

Not available

12

Honda 31217-ZA1-013

BUSHING, INSULATION (Honda Code 2059624).

Note: Use from Engine SN 1334392.

$14.99

$

Usually ships in 3-6 days

0

13

Honda 31218-ZA1-003

YOKE (Honda Code 1238252).

Note: Use from Engine SN 1232729 to 1334391.

$

$

Currently unavailable

13

Honda 31218-ZA1-013

YOKE (Honda Code 2059632).

Note: Use from Engine SN 1334392.

$168.99

$

Usually ships in 3-6 days

0

14

Honda 31219-ZA1-003

FRAME, STARTER END (Honda Code 1238260).

Note: Use from Engine SN 1232729 to 1334391.

$

$

Not available

14

Honda 31219-ZA1-013

FRAME, STARTER END (Honda Code 2059640).

Note: Use from Engine SN 1334392.

$70.99

$

Usually ships in 3-6 days

0

15

Honda 31206-HA0-004

SEE PART DETAILS - PRI; PLATE, BRUSH HOLDER (Honda Code 2379436).
(Superseded to 31231-ZA1-003)

Note: Use from Engine SN 1232729.

$35.99

$

Usually ships in 3-6 days

0

16

Honda 31232-ZA1-003

WIRE, WATER COVER (Honda Code 1412402).

Note: Use from Engine SN 1232729 to 1355821.

$

$

Currently unavailable

16

Honda 31232-ZA1-013

WIRE, WATER COVER (Honda Code 2523033).

Note: Use from Engine SN 1355822.

$76.99

$

Usually ships in 3-6 days

0

17

Honda 90101-ZA1-003

BOLT (Honda Code 1412410).

Note: Use from Engine SN 1232729.

$

$

Not available

18

Honda 90102-ZA1-003

BOLT, THROUGH (Honda Code 1412428).

Note: Use from Engine SN 1232729 to 1449966.

$

$

Not available

18

Honda 90102-ZA1-013

BOLT, THROUGH (Honda Code 4146692).

Note: Use from Engine SN 1449967.

$12.99

$

Usually ships in 3-6 days

0

19

Honda 90201-ZA1-003

NUT (Honda Code 1412436).

Note: Use from Engine SN 1232729.

$3.49

$

Usually ships in 3-6 days

0

20

Honda 90202-ZA1-003

NUT (Honda Code 1412444).

Note: Use from Engine SN 1232729.

$3.99

$

Usually ships in 3-6 days

0

21

Honda 90401-ZA1-003

WASHER, STEEL PLATE (Honda Code 1412451).

Note: Use from Engine SN 1232729 to 1449966.

$

$

Currently unavailable

22

Honda 31214-HA0-682

SEE PART DETAILS - PRI; WASHER (Honda Code 2379477).

Note: Use from Engine SN 1232729.

$

$

Not available

23

Honda 90403-ZA1-003

WASHER (Honda Code 1412477).

Note: Use from Engine SN 1232729.

$3.49

$

Usually ships in 3-6 days

0

24

Honda 31212-HA0-682

SEE PART DETAILS - PRI; O-RING (Honda Code 2379469).

Note: Use from Engine SN 1232729 to 1449966.

$4.99

$

Usually ships in 3-6 days

0

24

Honda 31212-HA0-682

SEE PART DETAILS - PRI; O-RING (Honda Code 2379469).

Note: Use from Engine SN 1449967.

$4.99

$

Usually ships in 3-6 days

0

25

Honda 91302-ZA1-003

O-RING (Honda Code 1412493).

Note: Use from Engine SN 1232729 to 1334391.

$

$

Not available

25

Honda 91302-ZA1-013

O-RING (Honda Code 2060382).

Note: Use from Engine SN 1334392.

$2.99

$

Usually ships in 3-6 days

0

26

Honda 91303-ZA1-003

O-RING (Honda Code 1412501).

Note: Use from Engine SN 1232729 to 1449966.

$3.99

$

Usually ships in 3-6 days

0

27

Honda 94301-10160

SEE PART DETAILS - PRI; PIN A, DOWEL (10X16) (Honda Code 0058206).

Note: Use from Engine SN 1232729.

$3.49

$

In Stock, only 3 left!

0

28

Honda 95701-08035-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X35) (Honda Code 2563260).

Note: Use from Engine SN 1232729.

$1.99

$

Usually ships in 3-6 days

0
