G300 QJ0 (G300) - Honda Engine, Made in Japan (SN: G300-1000001 - G300-1457696) STARTER MOTOR (1) Parts Diagram

Engine, Made in Japan

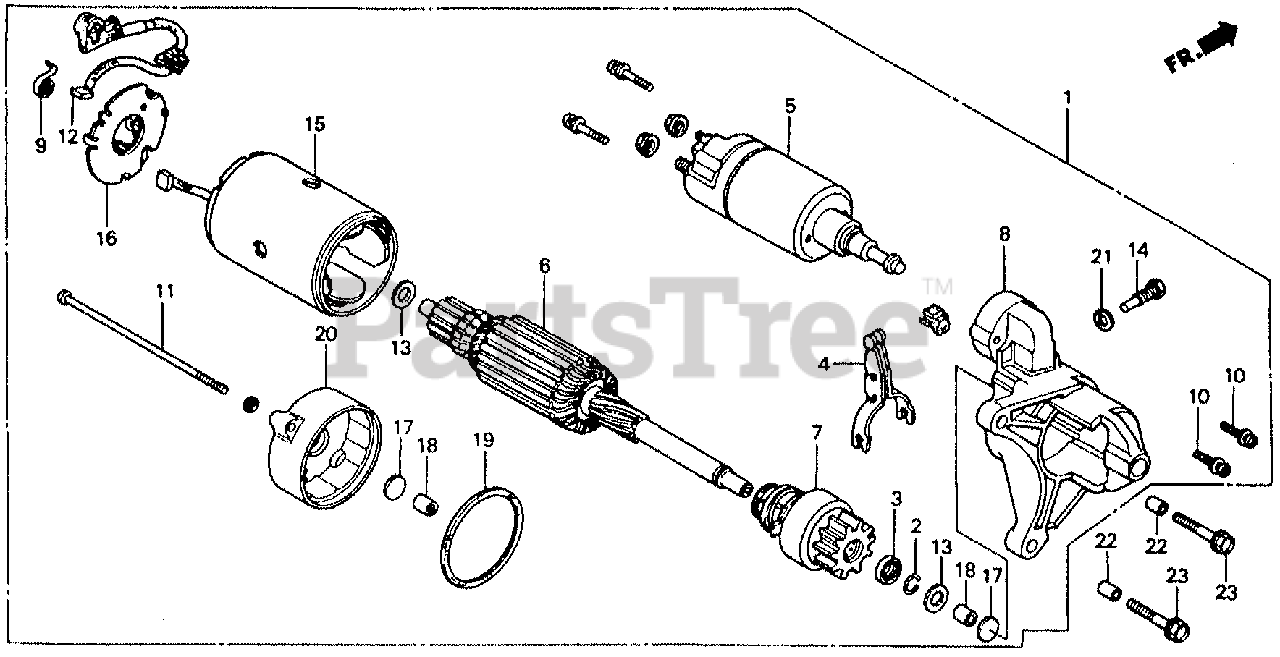

STARTER MOTOR (1) Parts Diagram

  • Title

1

Honda 31200-889-831

SEE PART DETAILS - PRI; MOTOR ASSY., STARTER (Honda Code 2473353).

Note: Use up to Engine SN 1232728.

$

$

Currently unavailable

2

Honda 31201-590-004

RING, SNAP (NOT AVAILABLE) (Honda Code 0344291).

Note: Use up to Engine SN 1232728.

$

$

Currently unavailable

3

Honda 31202-590-004

COLLAR, CLUTCH STOP (Honda Code 0344309).

Note: Use up to Engine SN 1232728.

$

$

Not available

4

Honda 31203-611-004

LEVER, PINION (NOT AVAILABLE) (Honda Code 0344317).

Note: Use up to Engine SN 1232728.

$

$

Currently unavailable

5

Honda 31204-890-801

SWITCH, MAGNETIC (Honda Code 0760975).

Note: Use up to Engine SN 1232728.

$

$

Currently unavailable

6

Honda 31206-890-801

ARMATURE (Honda Code 0760983).

Note: Use up to Engine SN 1232728.

$

$

Currently unavailable

7

Honda 31207-890-801

PINION (Honda Code 0760991).

Note: Use up to Engine SN 1232728.

$

$

Not available

8

Honda 31208-890-801

CASE, GEAR (Honda Code 0761007).

Note: Use up to Engine SN 1232728.

$

$

Not available

9

Honda 31212-611-004

SPRING, BRUSH (Honda Code 0344382).

Note: Use up to Engine SN 1232728.

$

$

Currently unavailable

10

Honda 31213-611-004

SCREW, MAGNETIC SWITCH SETTING (Honda Code 0344390).

Note: Use up to Engine SN 1232728.

$

$

Not available

11

Honda 31214-611-004

BOLT, THROUGH (Honda Code 0344408).

Note: Use up to Engine SN 1232728.

$

$

Not available

12

Honda 31215-890-801

BRUSH (Honda Code 0761015).

Note: Use up to Engine SN 1232728.

$

$

Not available

13

Honda 31216-611-004

WASHER (Honda Code 0344424).

Note: Use up to Engine SN 1232728.

$

$

Not available

14

Honda 31217-890-801

SCREW, POLE CORE SETTING (Honda Code 0761023).

Note: Use up to Engine SN 1232728.

$

$

Not available

15

Honda 31218-890-801

COIL, FIELD (Honda Code 0761031).

Note: Use up to Engine SN 1232728.

$

$

Not available

16

Honda 31231-890-801

HOLDER, BRUSH (Honda Code 0761049).

Note: Use up to Engine SN 1232728.

$

$

Not available

17

Honda 31232-611-004

COVER, BEARING (Honda Code 0344481).

Note: Use up to Engine SN 1232728.

$

$

Not available

18

Honda 31233-611-004

BUSH, BEARING (Honda Code 0344499).

Note: Use up to Engine SN 1232728.

$

$

Not available

19

Honda 31234-611-004

GASKET, RUBBER PLATE (Honda Code 0344507).

Note: Use up to Engine SN 1232728.

$

$

Not available

20

Honda 31219-611-004

SEE PART DETAILS - PRI; COVER, RR. (Honda Code 0344457).

Note: Use up to Engine SN 1232728.

$

$

Not available

21

Honda 94111-08000

SEE PART DETAILS - PRI; WASHER, SPRING (8MM) (Honda Code 0058982).

Note: Use up to Engine SN 1232728.

$1.49

$

Usually ships in 3-6 days

0

22

Honda 94301-10160

SEE PART DETAILS - PRI; PIN A, DOWEL (10X16) (Honda Code 0058206).

Note: Use up to Engine SN 1232728.

$3.49

$

In Stock, only 3 left!

0

23

Honda 95701-08035-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X35) (Honda Code 2563260).

Note: Use up to Engine SN 1232728.

$1.99

$

Usually ships in 3-6 days

0
