G300 QJ0 (G300) - Honda Engine, Made in Japan (SN: G300-1000001 - G300-1457696) MUFFLER Parts Diagram

Engine, Made in Japan

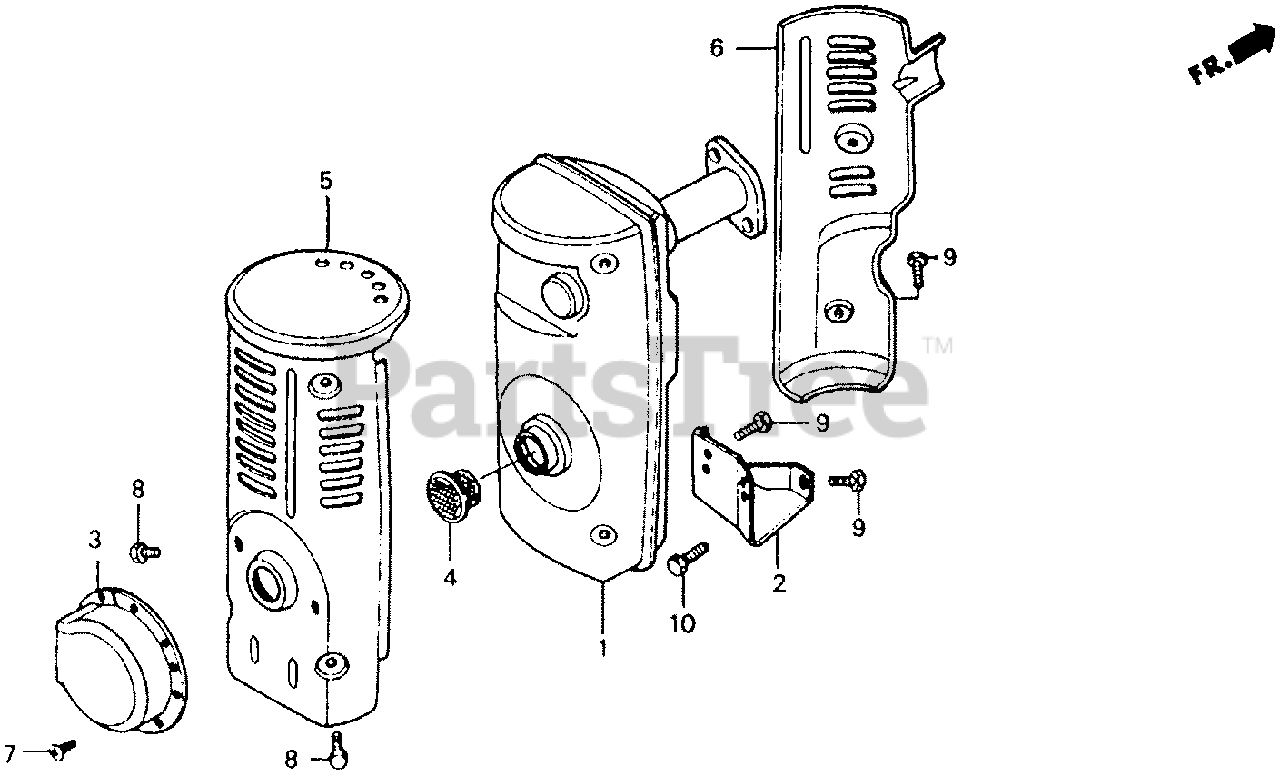

MUFFLER Parts Diagram

  • Title

1

Honda 18310-890-735

SEE PART DETAILS - PRI; MUFFLER (Honda Code 1012525).

Note: (Optional).

$

$

Not available

2

Honda 18320-890-731

SEE PART DETAILS - PRI; STAY, MUFFLER (Honda Code 1008432).

Note: (Optional).

$

$

Not available

3

Honda 18331-889-010

SEE PART DETAILS - PRI; DEFLECTOR, MUFFLER (Honda Code 0943266).

Note: (Optional).

$18.99

$

Usually ships in 3-6 days

0

4

Honda 18336-890-000

FLANGE, BAFFLE (Honda Code 1010479).

Note: (Optional). Use from Engine SN 1100476.

$

$

Not available

5

Honda 18361-890-730

PROTECTOR A, MUFFLER (Honda Code 0755538).

Note: (Optional).

$

$

Not available

6

Honda 18365-890-730

PROTECTOR B, MUFFLER (Honda Code 0755546).

Note: (Optional).

$

$

Not available

7

Honda 90183-671-003

SCREW, TAPPING (4X8) (Honda Code 0752345).
(Superseded to 90002-ZG0-003)

Note: (Optional).

$1.49

$

Usually ships in 3-6 days

0

8

Honda 90003-890-000

BOLT-WASHER (6X10) (Honda Code 0943274).

Note: (Optional). Use from Engine SN 1074048.

$

$

Currently unavailable

8

Honda 92100-06008-0B

SEE PART DETAILS - PRI; BOLT, HEX. (6X8) (Honda Code 4129730).

Note: (Optional). Use up to Engine SN 1074047.

$

$

Currently unavailable

8

Honda 92101-06008-0B

BOLT, HEX. (6X8) (Honda Code 4562096).

Note: (Optional). Use up to Engine SN 1074047.

$2.49

$

Usually ships in 3-6 days

0

9

Honda 95701-06010-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10) (Honda Code 2410876).

Note: (Optional).

$1.99

$

In Stock, Qty 7

0

10

Honda 95701-08014-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X14) (Honda Code 2411015).

Note: (Optional). Use up to Engine SN 1100097.

$2.49

$

Usually ships in 3-6 days

0

10

Honda 95701-08016-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) (Honda Code 2374767).

Note: (Optional). Use from Engine SN 1100098.

$2.49

$

In Stock, only 3 left!

0
