G300 QJ0 (G300) - Honda Engine, Made in Japan (SN: G300-1000001 - G300-1457696) FAN COVER + COMBINATION SWITCH Parts Diagram

Engine, Made in Japan

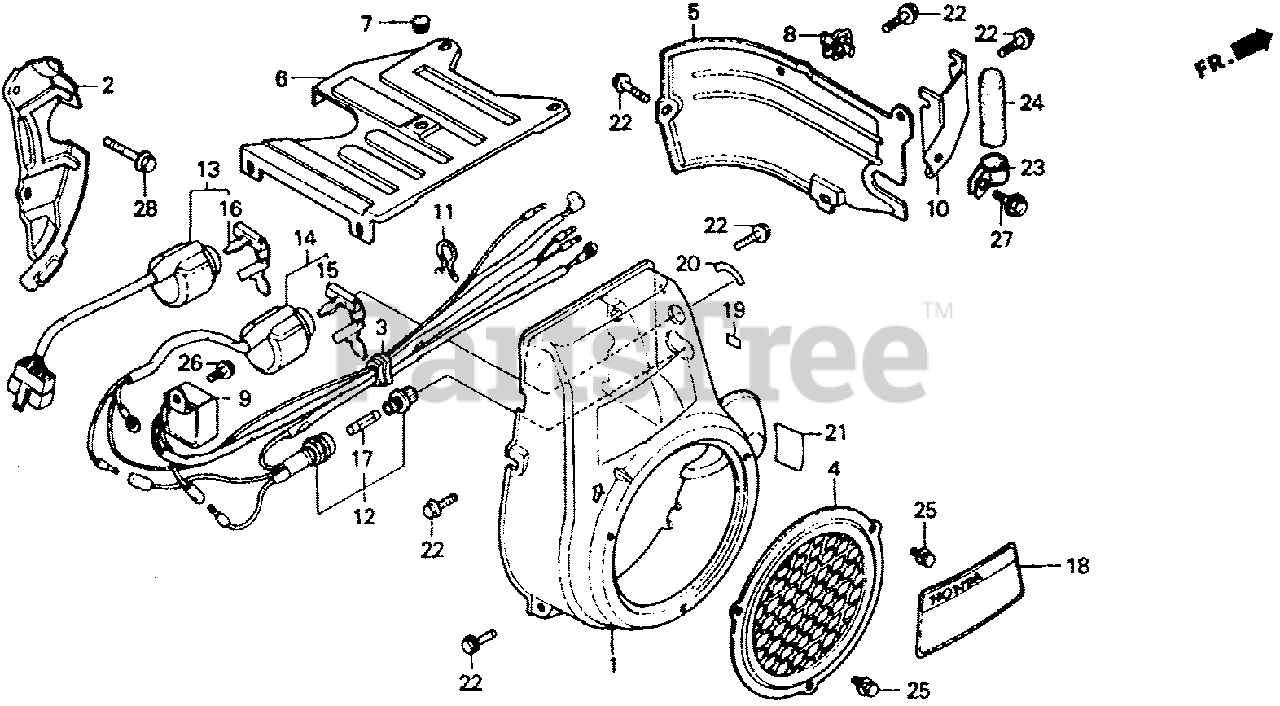

FAN COVER + COMBINATION SWITCH Parts Diagram

  • Title

1

Honda 19610-889-800ZA

SEE PART DETAILS - PRI; COVER, FAN *R8* (BRIGHT RED) (Honda Code 3719598).

$

$

Not available

2

Honda 19611-889-800

PLATE, SIDE (Honda Code 0760645).

$

$

Not available

3

Honda 19613-889-800

GROMMET, SWITCH WIRE (Honda Code 0755637).

$

$

Not available

4

Honda 19620-890-800H

SEE PART DETAILS - SUP; PROTECTOR, FAN COVER *R8* (BRIGHT RED) (Honda Code 0760660).

$

$

Currently unavailable

4

Honda 19620-890-800ZA

SEE PART DETAILS - PRI; PROTECTOR, FAN COVER *R8* (BRIGHT RED) (Honda Code 4514436).

$

$

Not available

5

Honda 19631-889-000

SHROUD (Honda Code 0755652).

$

$

Not available

6

Honda 19641-889-010

SEE PART DETAILS - PRI; COVER, TOP (Honda Code 0760678).

$36.99

$

Usually ships in 3-6 days

0

7

Honda 19643-883-010

GROMMET, TOP COVER (Honda Code 0635904).

$3.49

$

Usually ships in 3-6 days

0

8

Honda 30701-883-000

CLIP, IGNITION WIRE (8MM) (Honda Code 0636787).

$3.99

$

In Stock, only 1 left!

0

9

Honda 31700-890-801

RECTIFIER, SILICON (Honda Code 0761072).

$

$

Not available

10

Honda 32112-889-000

STAY, CLAMP (Honda Code 0794263).

$

$

Not available

11

Honda 90630-751-000

CLIP, PURSE LOCK (Honda Code 2159598).

Note: (Optional).

$2.99

$

Usually ships in 3-6 days

0

12

Honda 32130-890-003

HOLDER, FUSE (1.5A) (NOT AVAILABLE) (Honda Code 0761080).

$

$

Currently unavailable

13

Honda 35100-ZA0-013

SEE PART DETAILS - PRI; SWITCH ASSY., COMBINATION (Honda Code 3634904).
(Superseded to 35100-ZA0-023)

Note: (Optional).

$119.99

$

Usually ships in 3-6 days

0

14

Honda 35100-890-801

SWITCH ASSY., COMBINATION (Honda Code 0761098).

$

$

Not available

15

Honda 35111-862-003

KEY (Honda Code 0346130).

$9.99

$

Usually ships in 3-6 days

0

16

Honda 35111-880-003

SEE PART DETAILS - SUP; KEY (Honda Code 0485706).
(Superseded to 35111-880-013)

Note: (Optional).

$11.99

$

In Stock, only 3 left!

0

17

Honda 38201-883-003

FUSE (1.5A) (NOT AVAILABLE) (Honda Code 0761114).

$

$

Currently unavailable

18

Honda 87521-889-601

SEE PART DETAILS - PRI; EMBLEM (ENGLISH/FRENCH/SPANISH) (Honda Code 0804872).

$

$

Currently unavailable

18

Honda 87521-889-690

EMBLEM (THAI) (Honda Code 4060117).

Note: (Optional).

$

$

Not available

19

Honda 87544-889-800

MARK, FUSE (1.5A) (Honda Code 0761189).

$

$

Not available

20

Honda 87546-889-800

MARK, ENGINE SWITCH (Honda Code 0761197).

$

$

Not available

21

Honda 87594-883-000

MARK, OIL CAUTION (Honda Code 0761205).

$

$

Not available

22

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$2.49

$

In Stock, Qty 19

0

23

Honda 91405-890-780

CLIP, CORD (Honda Code 0794685).

$

$

Not available

24

Honda 91408-890-780

TUBE, CORD (25MM) (Honda Code 0803775).

$7.49

$

Usually ships in 3-6 days

0

25

Honda 95701-06008-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X8) (Honda Code 2581353).

$4.49

$

In Stock, Qty 20+

0

26

Honda 95700-06010-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10) (Honda Code 0344952).

$2.49

$

In Stock, Qty 20+

0

26

Honda 95701-06010-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10) (Honda Code 2204709).

$2.49

$

In Stock, Qty 20+

0

27

Honda 95700-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (Honda Code 0252254).

$

$

Currently unavailable

27

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (Honda Code 2170793).

$2.49

$

In Stock, Qty 9

0

28

Honda 95701-08020-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X20) (Honda Code 2440477).

$2.49

$

Usually ships in 3-6 days

0
