G300 QJ0 (G300) - Honda Engine, Made in Japan (SN: G300-1000001 - G300-1457696) CYLINDER BARREL + CYLINDER HEAD Parts Diagram

Engine, Made in Japan

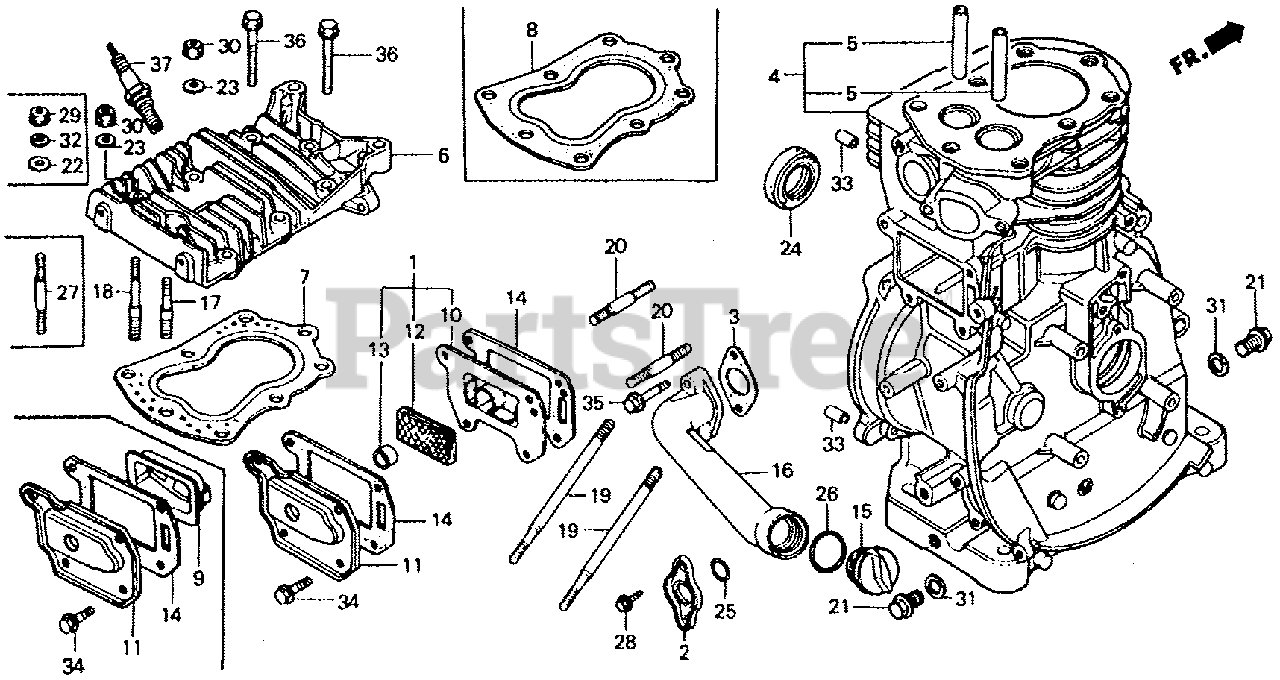

CYLINDER BARREL + CYLINDER HEAD Parts Diagram

  • Title

1

Honda 06123-889-305

CASE KIT, BREATHER (Honda Code 1083450).

Note: (Optional). Use up to Engine SN 1136497.

$

$

Currently unavailable

2

Honda 11210-822-010

COVER, OIL PAN (Honda Code 0397539).

$3.99

$

Usually ships in 3-6 days

0

3

Honda 11211-822-306

SEE PART DETAILS - PRI; GASKET, OIL PAN (Honda Code 4574539).

Note: (Optional).

$

$

Not available

4

Honda 12100-889-335

SEE PART DETAILS - PRI; CYLINDER (CRANKSHAFT P.T.O.) (Honda Code 0801746).

$

$

Not available

4

Honda 12100-889-335

SEE PART DETAILS - PRI; CYLINDER (CRANKSHAFT P.T.O.) (Honda Code 0801746).

Note: Use up to Engine SN 1103202.

$

$

Not available

4

Honda 12100-889-345

CYLINDER (Honda Code 1012434).

Note: Use from Engine SN 1103203.

$957.99

$

Usually ships in 3-6 days

0

5

Honda 12134-889-305

GUIDE, VALVE (Honda Code 0760074).

Note: (Optional).

$12.99

$

Usually ships in 3-6 days

0

6

Honda 12221-889-315

SEE PART DETAILS - PRI; CYLINDER HEAD (Honda Code 1012442).

$

$

Not available

7

Honda 12281-889-315

SEE PART DETAILS - PRI; GASKET, CYLINDER HEAD (Honda Code 1012459).

$34.99

$

Usually ships in 3-6 days

0

9

Honda 12360-889-000

CASE, BREATHER (Honda Code 0754556).

Note: Use up to Engine SN 1136497.

$

$

Currently unavailable

9

Honda 12360-889-010

CASE, BREATHER (Honda Code 1083476).

Note: Use up to Engine SN 1136497.

$

$

Not available

10

Honda 12360-889-010

CASE, BREATHER (Honda Code 1083476).

Note: Use from Engine SN 1136498.

$

$

Not available

11

Honda 12361-889-000

COVER, TAPPET (Honda Code 0754564).

$11.99

$

Usually ships in 3-6 days

0

12

Honda 12367-883-003

SEE PART DETAILS - PRI; FILTER, BREATHER (Honda Code 1083484).

Note: Use from Engine SN 1136498.

$3.99

$

Usually ships in 3-6 days

0

13

Honda 12369-883-000

SEAL, BREATHER (Honda Code 1037910).

Note: Use from Engine SN 1136498.

$4.49

$

Usually ships in 3-6 days

0

14

Honda 12375-889-000

GASKET, TAPPET COVER (Honda Code 0754580).

Note: Use up to Engine SN 1136497.

$

$

Not available

14

Honda 12375-889-000

GASKET, TAPPET COVER (Honda Code 0754580).

Note: Use from Engine SN 1136498.

$

$

Not available

15

Honda 15611-921-000

SEE PART DETAILS - PRI; CAP, OIL (Honda Code 0282806).

Note: (Optional).

$13.99

$

Usually ships in 3-6 days

0

16

Honda 15632-890-010

SEE PART DETAILS - PRI; PIPE, OIL (Honda Code 0964916).

Note: (Optional).

$

$

Not available

17

Honda 90032-889-000

BOLT, STUD (M8XM10X63) (Honda Code 1012921).

Note: Use from Engine SN 1103183.

$8.49

$

Usually ships in 3-6 days

0

18

Honda 90033-889-000

BOLT, STUD (M8XM10X81) (Honda Code 1012939).

Note: Use from Engine SN 1103183.

$9.99

$

Usually ships in 3-6 days

0

19

Honda 90042-890-010

SEE PART DETAILS - PRI; BOLT, STUD (8X110) (Honda Code 0761213).

Note: Use up to Engine SN 1106022.

$8.49

$

Usually ships in 3-6 days

0

19

Honda 90042-890-680

BOLT, STUD (8X104) (Honda Code 1009067).

Note: Use from Engine SN 1106023.

$8.99

$

Usually ships in 3-6 days

0

20

Honda 90047-883-000

BOLT, STUD (8X35) (Honda Code 0636894).

$4.99

$

Usually ships in 3-6 days

0

21

Honda 90131-883-000

SEE PART DETAILS - SUP; BOLT, DRAIN PLUG (Honda Code 0636902).

$

$

Not available

21

Honda 90131-896-650

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG (Honda Code 1986231).

$4.99

$

In Stock, Qty 12

0

22

Honda 90402-822-000

WASHER, HEAD (8MM) (Honda Code 0122101).

Note: Use up to Engine SN 1103182.

$1.99

$

Usually ships in 3-6 days

0

23

Honda 90430-657-000

WASHER (8MM) (Honda Code 0612077).

Note: Use from Engine SN 1103183.

$9.49

$

In Stock, only 1 left!

0

24

Honda 91201-Z0T-801

SEE PART DETAILS - PRI; OIL SEAL (25X41X6) (Honda Code 7352453).

$8.99

$

In Stock, Qty 8

0

24

Honda 91202-883-005

SEE PART DETAILS - SUP; OIL SEAL (25X41X6) (Honda Code 0636936).
(Superseded to 91201-Z0T-801)

$8.99

$

In Stock, Qty 8

0

25

Honda 91301-028-000

O-RING (27X2.0) (Honda Code 0013284).

$3.99

$

Usually ships in 3-6 days

0

26

Honda 91301-805-000

SEE PART DETAILS - PRI; O-RING (26X2.7) (Honda Code 0065185).

Note: (Optional).

$4.99

$

In Stock, Qty 11

0

27

Honda 92700-08080-3B

BOLT, STUD (8X80) (NOT AVAILABLE) (Honda Code 0761262).

Note: Use up to Engine SN 1003331.

$

$

Currently unavailable

27

Honda 92900-08045-3B

SEE PART DETAILS - PRI; BOLT, STUD (8X45) (Honda Code 3061991).

Note: Use from Engine SN 1003332 to 1007176.

$

$

Currently unavailable

28

Honda 93412-06012-08

SEE PART DETAILS - PRI; BOLT-WASHER (6X12) (Honda Code 3811023).

$

$

Currently unavailable

28

Honda 93482-06012-08

SEE PART DETAILS - SUP; BOLT-WASHER (6X12) (Honda Code 0995845).

$

$

Currently unavailable

29

Honda 94050-08080

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0468447).

Note: Use up to Engine SN 1103182.

$1.49

$

In Stock, Qty 15

0

30

Honda 94071-08080

NUT-WASHER (8MM) (Honda Code 0612713).

Note: Use from Engine SN 1103183.

$1.99

$

Usually ships in 3-6 days

0

31

Honda 94109-12000

SEE PART DETAILS - PRI; WASHER, DRAIN PLUG (12MM) (Honda Code 0171868).

$1.49

$

In Stock, Qty 20+

0

32

Honda 94111-08000

SEE PART DETAILS - PRI; WASHER, SPRING (8MM) (Honda Code 0058982).

Note: Use up to Engine SN 1103182.

$1.49

$

Usually ships in 3-6 days

0

33

Honda 94301-08140

SEE PART DETAILS - PRI; PIN A, DOWEL (8X14) (Honda Code 0069310).

$2.99

$

In Stock, Qty 8

0

34

Honda 95700-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (Honda Code 0252254).

$

$

Currently unavailable

34

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (Honda Code 2170793).

$2.49

$

In Stock, only 1 left!

0

35

Honda 95700-06025-08

BOLT, FLANGE (6X25) (Honda Code 0258731).

Note: (Optional).

$2.49

$

Usually ships in 3-6 days

0

35

Honda 95701-06025-08

BOLT, FLANGE (6X25) (Honda Code 2259711).

Note: (Optional).

$2.49

$

Usually ships in 3-6 days

0

36

Honda 95730-08050-08

BOLT, FLANGE (8X50) (NOT AVAILABLE) (Honda Code 0761312).

Note: Use up to Engine SN 1103182.

$

$

Currently unavailable

37

Honda 98076-54710

SPARK PLUG (B-4H) (Honda Code 0316927).

Note: (Optional).

$3.49

$

Usually ships in 3-6 days

0

37

Honda 98076-54716

SEE PART DETAILS - PRI; SPARK PLUG (BR-4HS) (NGK) (Honda Code 0649830).

Note: (Optional).

$3.49

$

In Stock, Qty 10

0

37

Honda 98076-54720

SPARK PLUG (W14F-U) (DENSO) (Honda Code 1325307).

Note: (Optional).

$3.49

$

Usually ships in 3-6 days

0

37

Honda 98076-54757

SEE PART DETAILS - PRI; SPARK PLUG (W14FR-U) (DENSO) (Honda Code 1106988).

Note: (Optional).

$3.49

$

Usually ships in 3-6 days

0

37

Honda 98076-54917

SEE PART DETAILS - PRI; SPARK PLUG (BPR4HS-10) (NGK) (Honda Code 4161691).

Note: (Optional).

$3.49

$

In Stock, only 3 left!

0

37

Honda 98076-54919

SPARK PLUG (BP4HS-10) (NGK) (Honda Code 4161659).

Note: (Optional).

$3.49

$

Usually ships in 3-6 days

0

37

Honda 98076-54921

SPARK PLUG (W14FP-UL10) (DENSO) (Honda Code 1325315).

Note: (Optional).

$3.49

$

Usually ships in 3-6 days

0

37

Honda 98076-54954

SEE PART DETAILS - PRI; SPARK PLUG (W14FPR-UL10) (DENSO) (Honda Code 1107002).

Note: (Optional).

$3.99

$

Usually ships in 3-6 days

0

37

Honda 98076-56724

SPARK PLUG (W20FS-U) (DENSO) (Honda Code 1325323).

Note: (Optional).

$3.49

$

Usually ships in 3-6 days

0

37

Honda 98076-56921

SPARK PLUG (W20FP-U10) (DENSO) (Honda Code 1325349).

Note: (Optional).

$

$

Currently unavailable
