G300 QJ0 (G300) - Honda Engine, Made in Japan (SN: G300-1000001 - G300-1457696) CAMSHAFT Parts Diagram

Engine, Made in Japan

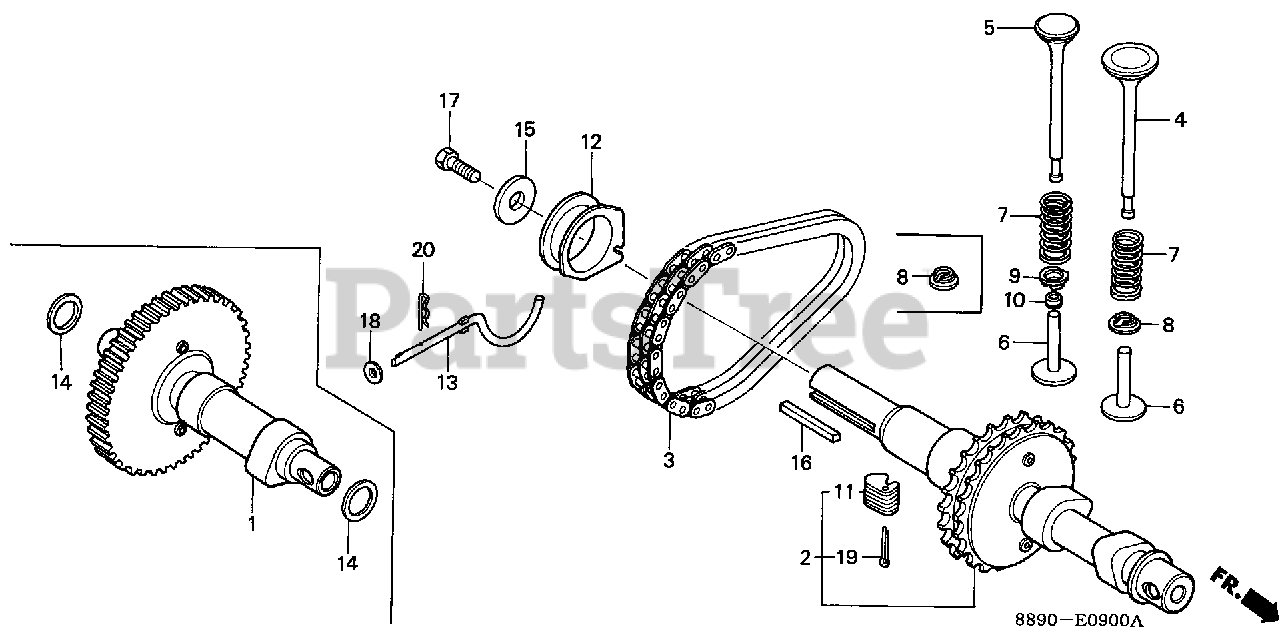

CAMSHAFT Parts Diagram

  • Title

1

Honda 14110-889-030

CAMSHAFT ASSY.

$176.99

$

Usually ships in 3-6 days

0

4

Honda 14711-889-000

VALVE, IN.

$37.99

$

Usually ships in 3-6 days

0

5

Honda 14721-889-000

VALVE, EX. (NOT AVAILABLE)

Note: Use up to Engine SN 1113122.

$43.99

$

Usually ships in 3-6 days

0

5

Honda 14721-889-010

VALVE, EX.
(Superseded to 14721-899-000)

Note: Use from Engine SN 1113123.

$61.99

$

Usually ships in 3-6 days

0

5

Honda 14721-899-000

VALVE, EX.

Note: Use from Engine SN 1113123.

$61.99

$

Usually ships in 3-6 days

0

6

Honda 14732-889-000

LIFTER, VALVE (45.89MM)

Note: (Optional).

$22.99

$

Usually ships in 3-6 days

0

6

Honda 14737-889-000

LIFTER, VALVE (46.04MM)

Note: (Optional).

$22.99

$

Usually ships in 3-6 days

0

6

Honda 14742-889-000

LIFTER, VALVE (46.19MM)

Note: (Optional).

$22.99

$

Usually ships in 3-6 days

0

6

Honda 14747-889-000

LIFTER, VALVE (46.34MM)

Note: (Optional).

$22.99

$

Usually ships in 3-6 days

0

7

Honda 14751-890-000

SPRING, VALVE (NOT AVAILABLE)

$4.49

$

Usually ships in 3-6 days

0

8

Honda 14771-883-305

RETAINER, VALVE SPRING

Note: Use up to Engine SN 1113122.

$13.99

$

Usually ships in 3-6 days

0

8

Honda 14771-883-305

RETAINER, VALVE SPRING

Note: Use from Engine SN 1113123.

$13.99

$

Usually ships in 3-6 days

0

9

Honda 14771-889-000

RETAINER, VALVE SPRING

Note: Use from Engine SN 1113123.

$4.49

$

Usually ships in 3-6 days

0

10

Honda 14781-889-000

ROTATOR, EX. VALVE (NOT AVAILABLE)

Note: Use from Engine SN 1113123.

$5.49

$

Usually ships in 3-6 days

0

11

Honda 16511-883-300

WEIGHT, GOVERNOR

$2.49

$

Usually ships in 3-6 days

0

12

Honda 16531-890-000

SLIDER, GOVERNOR

$37.99

$

Usually ships in 3-6 days

0

13

Honda 16541-889-010

SHAFT, GOVERNOR ARM

$14.99

$

In Stock, only 1 left!

0

14

Honda 90452-883-000

WASHER, THRUST (18MM)

$3.49

$

Usually ships in 3-6 days

0

18

Honda 94101-06800

WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

19

Honda 94201-30250

PIN, SPLIT (3.0X25)
(Superseded to 94201-30450)

$1.49

$

In Stock, Qty 20+

0

19

Honda 94201-30450

PIN, SPLIT (3.0X45)

$1.49

$

In Stock, Qty 20+

0

20

Honda 94251-10400

PIN, LOCK (10MM)

$1.99

$

Usually ships in 3-6 days

0
