G300 QJ0 (G300) - Honda Engine, Made in Japan (SN: G300-1000001 - G300-1457696) CAMSHAFT Parts Diagram

Engine, Made in Japan

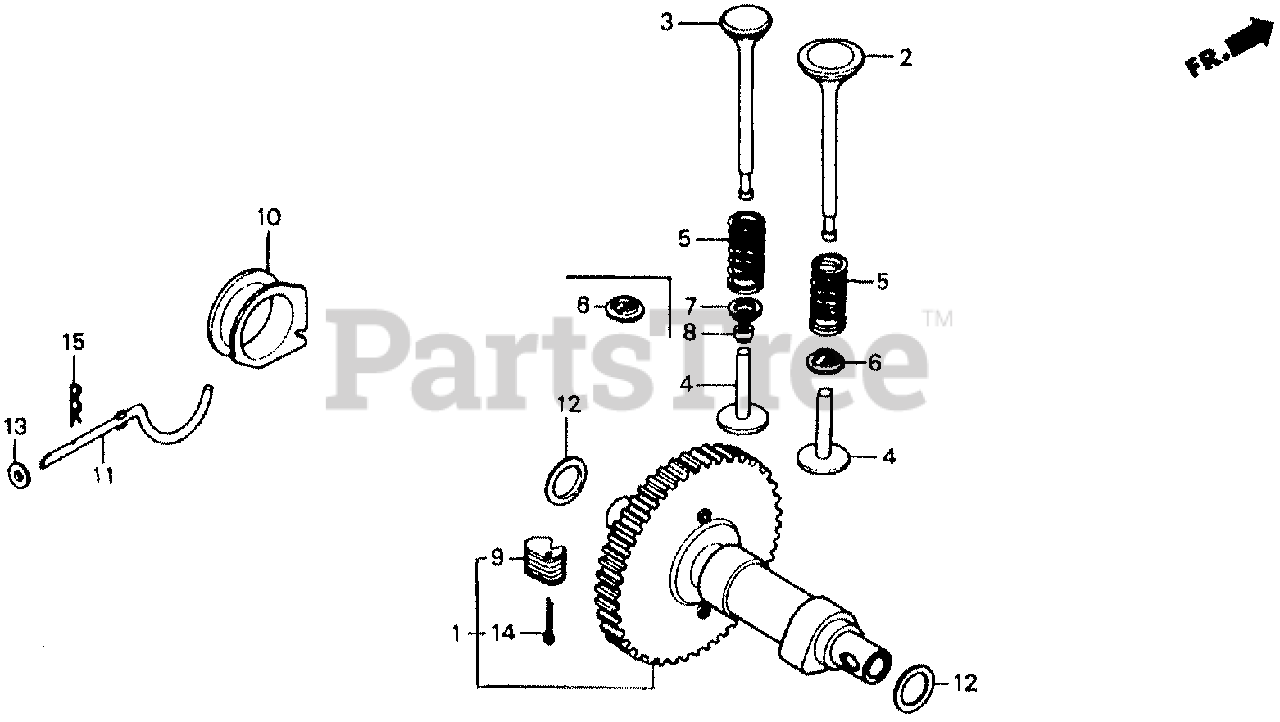

CAMSHAFT Parts Diagram

  • Title

1

Honda 14110-889-030

SEE PART DETAILS - PRI; CAMSHAFT ASSY. (Honda Code 1038033).

$176.99

$

Usually ships in 3-6 days

0

2

Honda 14711-889-000

VALVE, IN. (Honda Code 0754929).

$37.99

$

Usually ships in 3-6 days

0

3

Honda 14721-889-000

VALVE, EX. (Honda Code 0754945).

Note: Use up to Engine SN 1113122.

$43.99

$

Usually ships in 3-6 days

0

3

Honda 14721-889-010

VALVE, EX. (Honda Code 1038116).
(Superseded to 14721-899-000)

Note: Use from Engine SN 1113123.

$61.99

$

Usually ships in 3-6 days

0

3

Honda 14721-899-000

VALVE, EX. (Honda Code 1252956).

Note: Use from Engine SN 1113123.

$61.99

$

Usually ships in 3-6 days

0

4

Honda 14732-889-000

LIFTER, VALVE (45.89MM) (Honda Code 0754960).

Note: (Optional).

$22.99

$

Usually ships in 3-6 days

0

4

Honda 14737-889-000

LIFTER, VALVE (46.04MM) (Honda Code 0754978).

Note: (Optional).

$22.99

$

Usually ships in 3-6 days

0

4

Honda 14742-889-000

LIFTER, VALVE (46.19MM) (Honda Code 0754986).

Note: (Optional).

$22.99

$

Usually ships in 3-6 days

0

4

Honda 14747-889-000

LIFTER, VALVE (46.34MM) (Honda Code 0754994).

Note: (Optional).

$22.99

$

Usually ships in 3-6 days

0

5

Honda 14751-890-000

SPRING, VALVE (Honda Code 0755009).

$4.49

$

Usually ships in 3-6 days

0

6

Honda 14771-883-305

SEE PART DETAILS - PRI; RETAINER, VALVE SPRING (Honda Code 1196468).

Note: Use up to Engine SN 1113122.

$13.99

$

Usually ships in 3-6 days

0

6

Honda 14771-883-305

SEE PART DETAILS - PRI; RETAINER, VALVE SPRING (Honda Code 1196468).

Note: Use from Engine SN 1113123.

$13.99

$

Usually ships in 3-6 days

0

7

Honda 14771-889-000

RETAINER, VALVE SPRING (Honda Code 1038132).

Note: Use from Engine SN 1113123.

$4.49

$

Usually ships in 3-6 days

0

8

Honda 14781-889-000

ROTATOR, EX. VALVE (Honda Code 1038140).

Note: Use from Engine SN 1113123.

$5.49

$

Usually ships in 3-6 days

0

9

Honda 16511-883-300

WEIGHT, GOVERNOR (Honda Code 0636316).

$2.49

$

Usually ships in 3-6 days

0

10

Honda 16531-890-000

SLIDER, GOVERNOR (Honda Code 0755306).

$37.99

$

Usually ships in 3-6 days

0

11

Honda 16541-889-010

SEE PART DETAILS - PRI; SHAFT, GOVERNOR (Honda Code 0764217).

$14.99

$

In Stock, only 1 left!

0

12

Honda 90452-883-000

WASHER, THRUST (18MM) (Honda Code 0636928).

$3.49

$

Usually ships in 3-6 days

0

13

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900).

$0.99

$

In Stock, Qty 5

0

14

Honda 94201-30450

SEE PART DETAILS - PRI; PIN, COTTER (3.0X45) (Honda Code 0058453).

$1.49

$

Usually ships in 3-6 days

0

15

Honda 94251-10400

PIN, LOCK (10MM) (Honda Code 0761270).

$1.99

$

Usually ships in 3-6 days

0
