G300 PZC1 (G300) - Honda Engine, Made in Japan (SN: G300-1000001 - G300-1457696) CRANKCASE COVER (2) Parts Diagram

Engine, Made in Japan

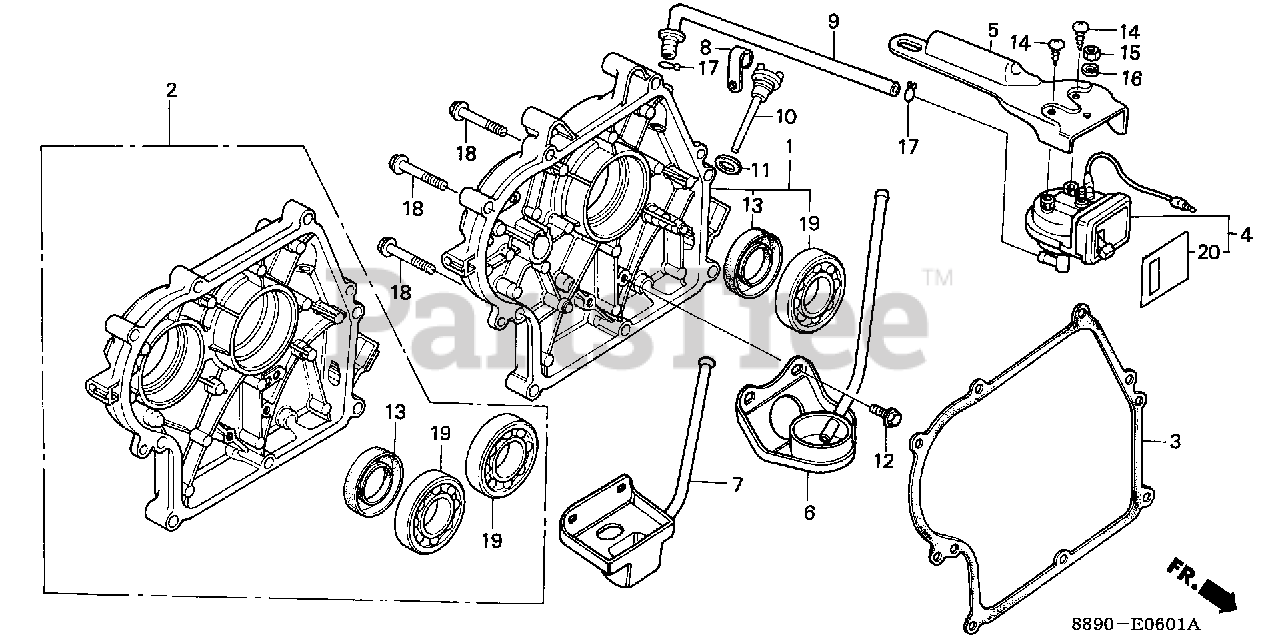

CRANKCASE COVER (2) Parts Diagram

  • Title

1

Honda 11310-889-871

COVER, CRANKCASE

$

$

Not available

3

Honda 11381-889-800

GASKET, CASE COVER

$17.99

$

Usually ships in 3-6 days

0

4

Honda 15520-883-881

SWITCH ASSY., OIL ALERT UNIT

$112.99

$

Usually ships in 3-6 days

0

5

Honda 15521-883-890

BRACKET, OIL ALERT UNIT SWITCH

$38.99

$

Usually ships in 3-6 days

0

7

Honda 15525-889-892

CUP, OIL

$22.99

$

Usually ships in 3-6 days

0

8

Honda 15529-889-890

CLAMP, TUBE

$5.99

$

Usually ships in 3-6 days

0

9

Honda 15530-889-891

TUBE, OIL ALERT

$30.99

$

Usually ships in 3-6 days

0

10

Honda 15620-890-000

CAP, OIL FILLER (YELLOW)

$

$

Not available

11

Honda 15621-896-010

GASKET, OIL FILLER CAP

$5.99

$

In Stock, Qty 5

0

12

Honda 90061-161-000

BOLT, FLANGE (6X16)

$4.49

$

Usually ships in 3-6 days

0

13

Honda 91201-890-003

OIL SEAL (30X46X8)

$11.99

$

In Stock, Qty 5

0

14

Honda 93903-25180

SCREW, TAPPING (5X10)

$1.49

$

Usually ships in 3-6 days

0

15

Honda 94001-050800S

NUT, HEX. (5MM)
(Superseded to 94001-05080-0S)

$1.49

$

Usually ships in 3-6 days

0

16

Honda 94111-05800

WASHER, SPRING (5MM)

$1.49

$

Usually ships in 3-6 days

0

17

Honda 95002-70000

CLIP, TUBE (C11)

$2.49

$

In Stock, Qty 5

0

18

Honda 95701-08040-08

BOLT, FLANGE (8X40)

$2.99

$

Usually ships in 3-6 days

0

19

Honda 96100-62060-00

BEARING, RADIAL BALL (6206)

$32.99

$

In Stock, only 1 left!

0
