G300 PB6 (G300) - Honda Engine, Made in Japan (SN: G300-1000001 - G300-1457696) FAN COVER (1) Parts Diagram

Engine, Made in Japan

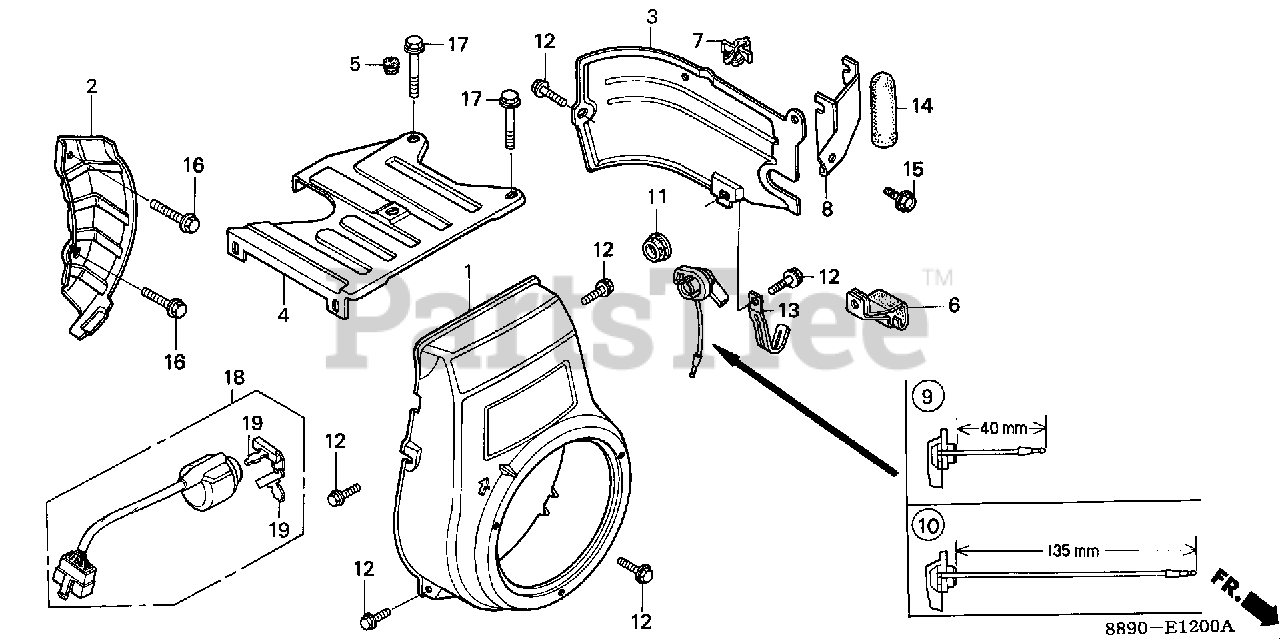

FAN COVER (1) Parts Diagram

  • Title

1

Honda 19610-YA1-V60ZA

COVER, FAN *R280* (POWER RED)

$79.99

$

Usually ships in 3-6 days

0

2

Honda 19611-889-000

PLATE, SIDE

$17.99

$

Usually ships in 3-6 days

0

3

Honda 19631-889-000

SHROUD

$

$

Not available

4

Honda 19641-889-010

COVER, TOP

$34.99

$

Usually ships in 3-6 days

0

5

Honda 19643-883-010

GROMMET, TOP COVER

$2.99

$

Usually ships in 3-6 days

0

7

Honda 30701-883-000

CLIP, IGNITION WIRE (8MM)

$3.99

$

In Stock, only 1 left!

0

10

Honda 36100-887-630

SWITCH ASSY., ENGINE STOP

Note: Use up to Engine SN 1269905.

$

$

Currently unavailable

10

Honda 36100-887-720

SWITCH ASSY., ENGINE STOP

Note: Use from Engine SN 1269906 to 1398676.

$

$

Currently unavailable

10

Honda 36100-887-721

SWITCH ASSY., ENGINE STOP

Note: Use from Engine SN 1398677.

$27.99

$

Usually ships in 3-6 days

0

12

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 20+

0

13

Honda 91406-671-000

CLIP, WIRE HARNESS

$21.99

$

Usually ships in 3-6 days

0

16

Honda 95701-08020-08

BOLT, FLANGE (8X20)

$2.49

$

Usually ships in 3-6 days

0

18

Honda 35100-ZA0-013

SEE PART DETAILS - SUP; SWITCH ASSY., COMBINATION
(Superseded to 35100-ZA0-023)

Note: (Optional). Use up to Engine SN 1440678.

$111.99

$

Usually ships in 3-6 days

0

18

Honda 35100-ZA0-023

SEE PART DETAILS - PRI; SWITCH ASSY., COMBINATION

Note: (Optional). Use up to Engine SN 1440678.

$111.99

$

Usually ships in 3-6 days

0

18

Honda 35100-880-673

SWITCH ASSY., COMBINATION (NOT AVAILABLE)

Note: (Optional). Use from Engine SN 1440679.

$

$

Currently unavailable

19

Honda 35111-880-013

KEY (HONDALOCK)

Note: (Optional).

$11.99

$

In Stock, only 3 left!

0
