G300 HQB6 (G300) - Honda Engine, Made in Japan (SN: G300-1000001 - G300-1457696) FUEL TANK (1) Parts Diagram

Engine, Made in Japan

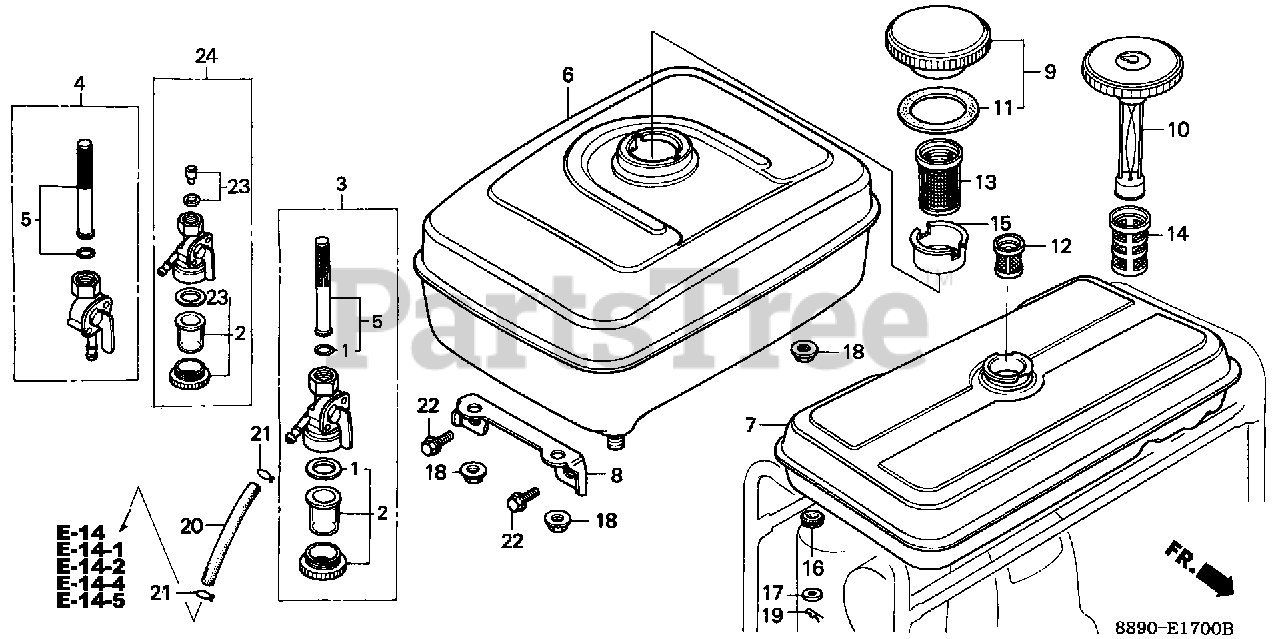

FUEL TANK (1) Parts Diagram

  • Title

1

Honda 16080-883-005

GASKET SET, PETCOCK

$14.99

$

In Stock, only 1 left!

0

2

Honda 16081-471-831

SEE PART DETAILS - PRI; CUP, FUEL STRAINER

$32.99

$

Usually ships in 3-6 days

0

2

Honda 16081-883-015

SEE PART DETAILS - SUP; CUP SET, FUEL STRAINER
(Superseded to 16081-471-831)

$32.99

$

Usually ships in 3-6 days

0

3

Honda 16950-898-633

SEE PART DETAILS - PRI; PETCOCK ASSY.

$62.99

$

In Stock, only 1 left!

0

4

Honda 16950-883-663

SEE PART DETAILS - PRI; PETCOCK ASSY.

$51.99

$

In Stock, only 2 left!

0

4

Honda 16950-889-015

PETCOCK ASSY. (NOT AVAILABLE)

$

$

Not available

5

Honda 16952-883-005

SCREEN SET

$20.99

$

In Stock, only 1 left!

0

6

Honda 17510-890-030ZA

TANK, FUEL *NH31* (MCKINLEY WHITE)

Note: Use up to Engine SN 1375543.

$

$

Not available

6

Honda 17510-890-690XC

TANK, FUEL (LONG TAIL) (NOT AVAILABLE)

Note: Use up to Engine SN 2015021.

$

$

Currently unavailable

6

Honda 17510-890-691ZA

TANK, FUEL *NH31* (MCKINLEY WHITE) (NOT AVAILABLE)

Note: Use from Engine SN 2015022.

$

$

Currently unavailable

8

Honda 17516-890-000

STAY, FUEL TANK (NOT AVAILABLE)

$

$

Not available

9

Honda 17620-ZH7-023

CAP, FUEL FILLER (BLACK)
(Superseded to 17620-Z0T-305)

Note: Use from Engine SN 1099093 to 1407166.

$

$

Not available

9

Honda 17620-ZH7-023

CAP, FUEL FILLER (BLACK)
(Superseded to 17620-Z0T-305)

Note: Use from Engine SN 1407167.

$

$

Not available

9

Honda 17620-402-010

SEE PART DETAILS - PRI; CAP, FUEL FILLER
(Superseded to 17620-402-020)

Note: Use up to Engine SN 1099092.

$22.99

$

In Stock, only 1 left!

0

10

Honda 17630-890-692

GAUGE, FUEL (ENGLISH)

$

$

Not available

11

Honda 17631-329-003

GASKET, FUEL FILLER CAP (39X58X3)
(Superseded to 17631-329-013)

$

$

Not available

13

Honda 17672-880-000

FILTER, FUEL

$15.99

$

Usually ships in 3-6 days

0

15

Honda 17673-893-000

HOLDER, FUEL FILTER

$15.99

$

In Stock, only 2 left!

0

18

Honda 94050-08080

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

20

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X85)

$57.99

$

In Stock, only 3 left!

0

21

Honda 95002-02080

CLIP, TUBE (B8)

$2.49

$

In Stock, Qty 20+

0

22

Honda 95701-08016-08

BOLT, FLANGE (8X16)

$2.49

$

In Stock, only 3 left!

0

23

Honda 16080-890-691

GASKET SET, PETCOCK (NOT AVAILABLE)

$

$

Currently unavailable

24

Honda 16950-890-693

PETCOCK ASSY.

$

$

Not available
