G300 HQB6 (G300) - Honda Engine, Made in Japan (SN: G300-1000001 - G300-1457696) FAN COVER + SIDE PLATE Parts Diagram

Engine, Made in Japan

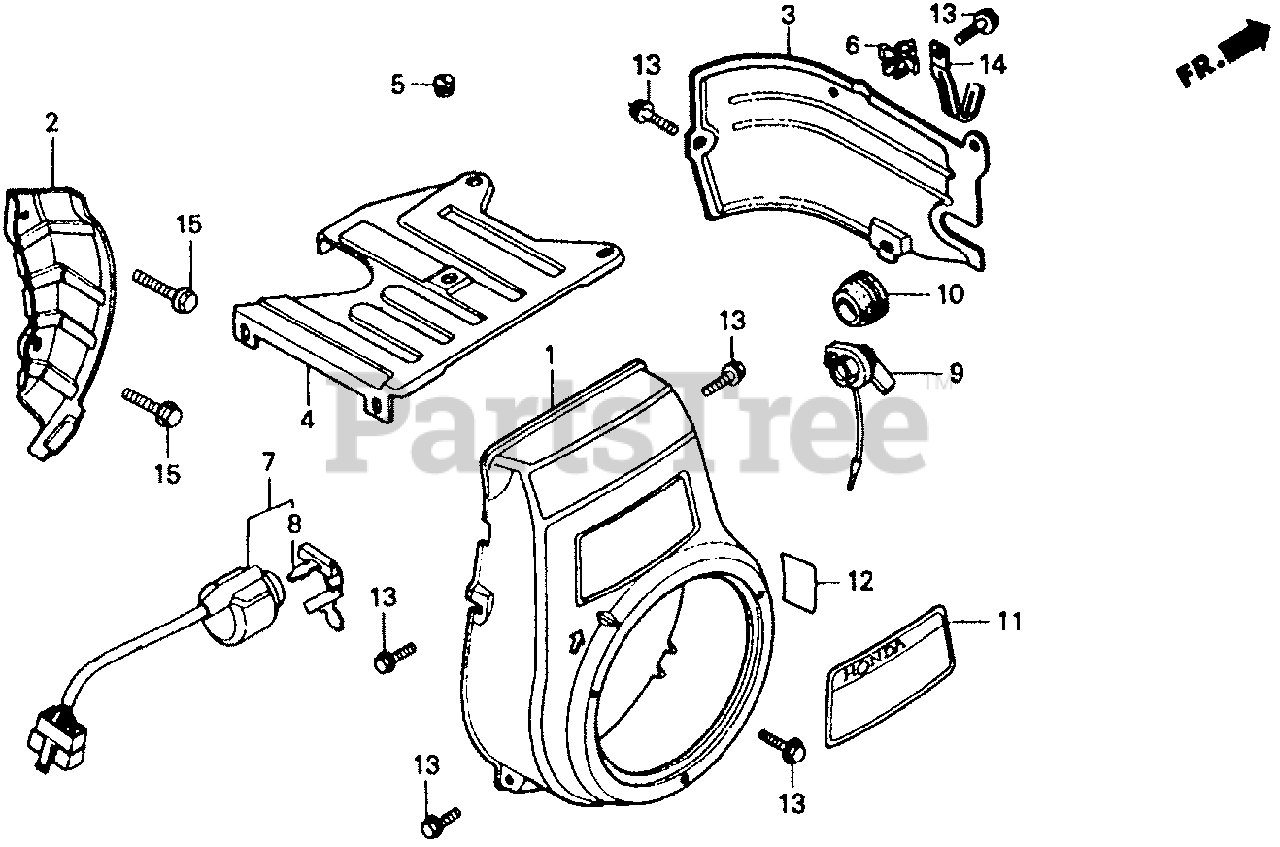

FAN COVER + SIDE PLATE Parts Diagram

  • Title

1

Honda 19610-889-000ZA

SEE PART DETAILS - SUP; COVER, FAN *R8* (BRIGHT RED) (Honda Code 3537248).

$

$

Currently unavailable

2

Honda 19611-889-000

PLATE, SIDE (Honda Code 0755611).

$17.99

$

Usually ships in 3-6 days

0

3

Honda 19631-889-000

SHROUD (Honda Code 0755652).

$

$

Not available

4

Honda 19641-889-010

SEE PART DETAILS - PRI; COVER, TOP (Honda Code 0760678).

$34.99

$

Usually ships in 3-6 days

0

5

Honda 19643-883-010

GROMMET, TOP COVER (Honda Code 0635904).

$2.99

$

Usually ships in 3-6 days

0

6

Honda 30701-883-000

CLIP, IGNITION WIRE (8MM) (Honda Code 0636787).

$3.99

$

In Stock, only 1 left!

0

7

Honda 35100-ZA0-013

SEE PART DETAILS - PRI; SWITCH ASSY., COMBINATION (Honda Code 3634904).
(Superseded to 35100-ZA0-023)

Note: (Optional). Use up to Engine SN 1440678.

$111.99

$

Usually ships in 3-6 days

0

7

Honda 35100-880-673

SWITCH ASSY., COMBINATION (Honda Code 4608345).

Note: (Optional). Use from Engine SN 1440679.

$

$

Currently unavailable

8

Honda 35111-880-003

SEE PART DETAILS - SUP; KEY (Honda Code 0485706).
(Superseded to 35111-880-013)

Note: (Optional).

$11.99

$

In Stock, only 3 left!

0

9

Honda 36100-887-630

SEE PART DETAILS - SUP; SWITCH ASSY., ENGINE STOP (Honda Code 0761106).

Note: Use up to Engine SN 1398676.

$

$

Currently unavailable

9

Honda 36100-887-721

SWITCH ASSY., ENGINE STOP (Honda Code 2960235).

Note: (Optional). Use from Engine SN 1398677.

$27.99

$

Usually ships in 3-6 days

0

11

Honda 87521-889-601

SEE PART DETAILS - PRI; EMBLEM (ENGLISH/FRENCH/SPANISH) (Honda Code 0804872).

$

$

Currently unavailable

12

Honda 87594-883-000

MARK, OIL CAUTION (Honda Code 0761205).

$

$

Not available

13

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$1.99

$

In Stock, Qty 20+

0

14

Honda 91406-671-000

CLIP, WIRE HARNESS (Honda Code 0621367).

$21.99

$

Usually ships in 3-6 days

0

15

Honda 95701-08020-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X20) (Honda Code 2440477).

$2.49

$

Usually ships in 3-6 days

0
