G300 HQB6 (G300) - Honda Engine, Made in Japan (SN: G300-1000001 - G300-1457696) CARBURETOR (1) Parts Diagram

Engine, Made in Japan

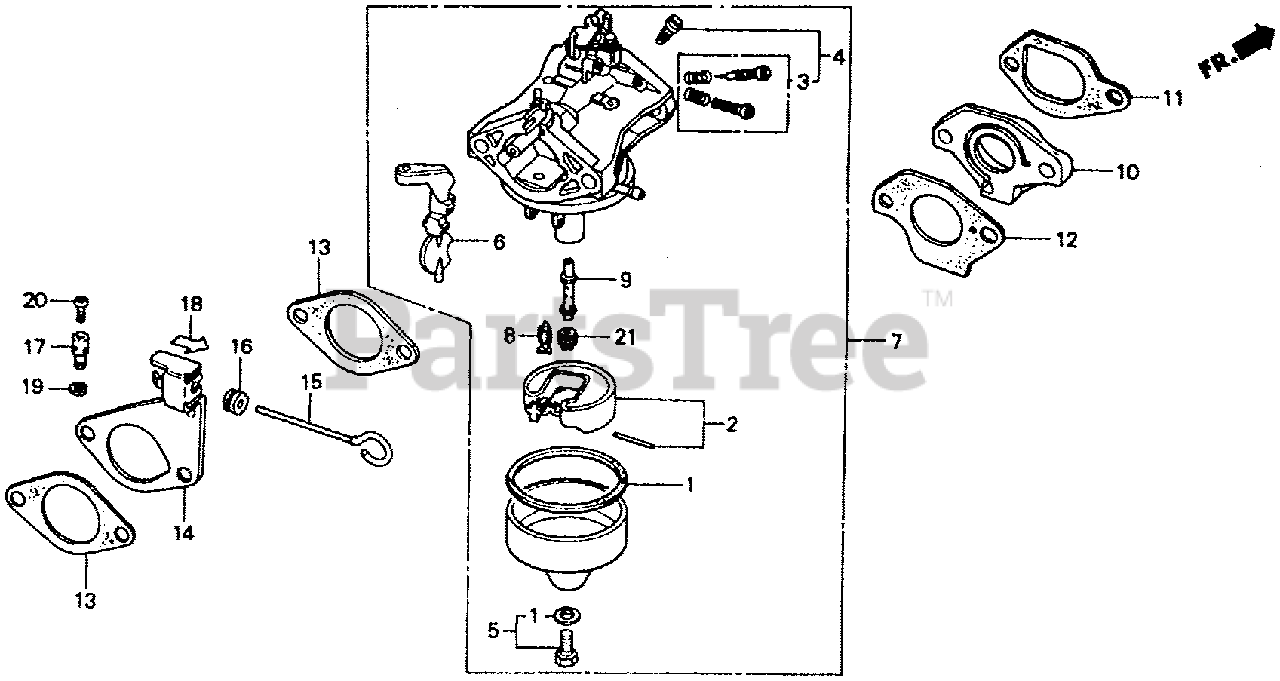

CARBURETOR (1) Parts Diagram

  • Title

1

Honda 16010-883-015

SEE PART DETAILS - PRI; GASKET SET (Honda Code 3088416).

Note: Use up to Engine SN BB33A B.

$12.99

$

In Stock, only 2 left!

0

2

Honda 16013-883-005

FLOAT SET (Honda Code 0636258).

Note: Use up to Engine SN BB33A B.

$38.99

$

Usually ships in 3-6 days

0

3

Honda 16016-883-661

SEE PART DETAILS - SUP; SCREW SET A (Honda Code 1007442).

Note: Use up to Engine SN BB33A A.

$

$

Currently unavailable

4

Honda 16016-890-015

SEE PART DETAILS - PRI; SCREW SET A (NOT AVAILABLE) (Honda Code 0906131).

Note: Use from Engine SN BB33A B to BB33A B.

$

$

Not available

5

Honda 16028-ZE0-005

SEE PART DETAILS - PRI; SCREW SET B (Honda Code 1441518).
(Superseded to 16028-ZK7-S91)

Note: Use up to Engine SN BB33A B.

$13.99

$

In Stock, only 1 left!

0

5

Honda 16028-883-005

SEE PART DETAILS - SUP; SCREW SET B (Honda Code 0636274).

Note: Use up to Engine SN BB33A B.

$

$

Not available

6

Honda 16044-889-005

CHOKE SET (Honda Code 0760355).

Note: Use up to Engine SN BB33A B.

$39.99

$

Usually ships in 3-6 days

0

7

Honda 16100-889-055

SEE PART DETAILS - PRI; CARBURETOR ASSY. (Honda Code 3062445).

Note: Use up to Engine SN 1094287.

$

$

Currently unavailable

8

Honda 16155-883-005

SEE PART DETAILS - PRI; VALVE, FLOAT (Honda Code 0636282).

Note: Use up to Engine SN BB33A B.

$26.99

$

Usually ships in 3-6 days

0

9

Honda 16166-889-005

NOZZLE, MAIN (Honda Code 0760397).

Note: Use up to Engine SN BB33A B.

$34.99

$

Usually ships in 3-6 days

0

10

Honda 16211-889-000

INSULATOR, CARBURETOR (Honda Code 0755140).

Note: Use up to Engine SN 1094287.

$16.99

$

Usually ships in 3-6 days

0

11

Honda 16212-889-800

SEE PART DETAILS - PRI; GASKET, INSULATOR (Honda Code 4510947).

Note: Use up to Engine SN 1094287.

$2.49

$

In Stock, only 1 left!

0

12

Honda 16221-890-306

SEE PART DETAILS - SUP; GASKET, CARBURETOR (Honda Code 4425021).
(Superseded to 16221-890-800)

Note: Use up to Engine SN 1094287.

$2.99

$

In Stock, only 4 left!

0

12

Honda 16221-890-800

SEE PART DETAILS - PRI; GASKET, CARBURETOR (Honda Code 4428330).

Note: Use up to Engine SN 1094287.

$2.99

$

In Stock, only 4 left!

0

13

Honda 16269-890-306

SEE PART DETAILS - SUP; GASKET, AIR CLEANER (Honda Code 4434916).
(Superseded to 16269-890-800)

Note: Use up to Engine SN 1094287.

$1.99

$

In Stock, only 3 left!

0

13

Honda 16269-890-800

SEE PART DETAILS - PRI; GASKET, AIR CLEANER (Honda Code 4435285).

Note: Use up to Engine SN 1094287.

$1.99

$

In Stock, only 3 left!

0

14

Honda 16598-889-731

STAY, CHOKE CONTROL (Honda Code 0760439).

Note: Use up to Engine SN 1094287.

$

$

Not available

15

Honda 16611-889-000

ROD, CHOKE CONTROL (Honda Code 0760447).

Note: Use up to Engine SN 1094287.

$

$

Not available

16

Honda 16613-890-000

GROMMET, CHOKE ROD (Honda Code 0755413).

Note: Use up to Engine SN 1094287.

$2.99

$

Usually ships in 3-6 days

0

17

Honda 16617-890-010

SEE PART DETAILS - PRI; HOLDER, CABLE (Honda Code 0760462).

Note: Use up to Engine SN 1094287.

$8.49

$

In Stock, only 1 left!

0

18

Honda 87528-883-661

SEE PART DETAILS - PRI; MARK, CHOKE (Honda Code 0761163).

Note: Use up to Engine SN 1094287.

$2.49

$

Usually ships in 3-6 days

0

19

Honda 90605-230-000

CIRCLIP (5MM) (Honda Code 0138768).

Note: Use up to Engine SN 1094287.

$3.99

$

In Stock, only 3 left!

0

20

Honda 93500-04008-0A

SEE PART DETAILS - PRI; SCREW, PAN (4X8) (Honda Code 0156463).

Note: Use up to Engine SN 1094287.

$1.49

$

In Stock, only 4 left!

0

21

Honda 99101-124-0750

JET, MAIN (#75) (Honda Code 0761353).

Note: (Optional). Use up to Engine SN BB33A B.

$11.99

$

Usually ships in 3-6 days

0

21

Honda 99101-124-0780

JET, MAIN (#78) (Honda Code 0639831).

Note: (Optional). Use up to Engine SN BB33A B.

$11.99

$

Usually ships in 3-6 days

0

21

Honda 99101-124-0800

JET, MAIN (#80) (Honda Code 0714519).

Note: (Optional). Use up to Engine SN BB33A B.

$11.99

$

Usually ships in 3-6 days

0

21

Honda 99101-124-0820

JET, MAIN (#82) (Honda Code 0714527).

Note: (Optional). Use up to Engine SN BB33A B.

$11.99

$

Usually ships in 3-6 days

0

21

Honda 99101-124-0850

JET, MAIN (#85) (Honda Code 0761361).

Note: Use up to Engine SN BB33A B.

$11.99

$

Usually ships in 3-6 days

0
