G300 HQB6 (G300) - Honda Engine, Made in Japan (SN: G300-1000001 - G300-1457696) C.D.I. UNIT Parts Diagram

Engine, Made in Japan

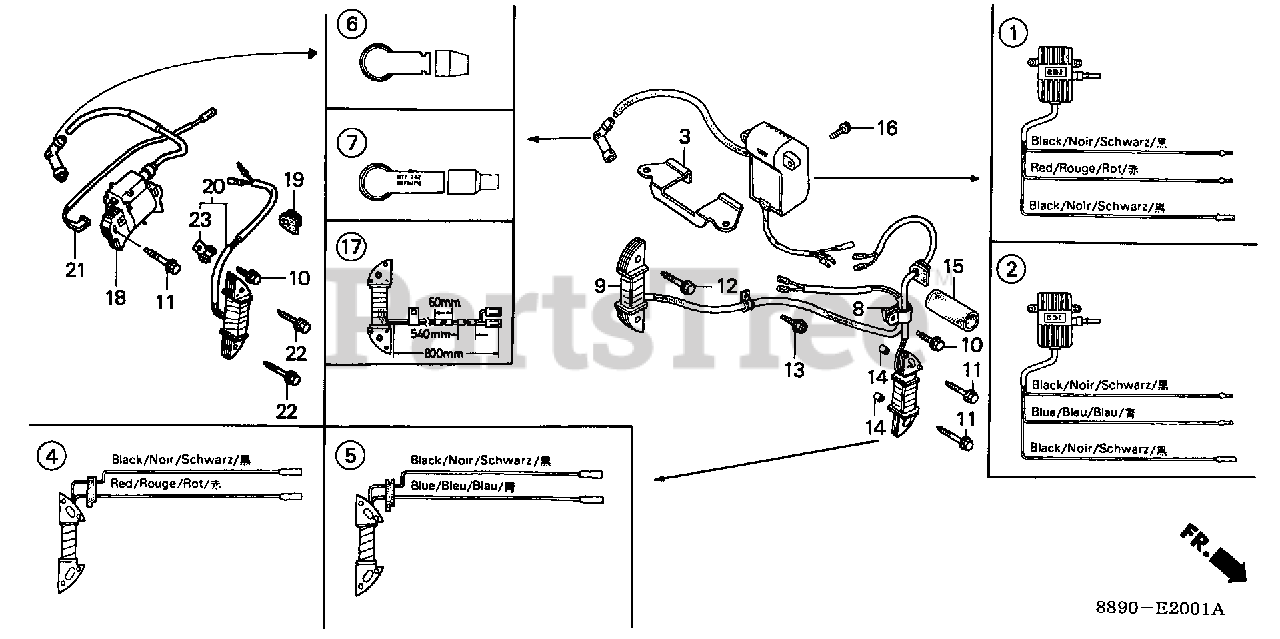

C.D.I. UNIT Parts Diagram

  • Title

1

Honda 30580-889-733

MODULE, IGNITION CONTROL (CDI)

$382.99

$

Usually ships in 3-6 days

0

3

Honda 30586-889-730

STAY, IGNITION CONTROL MODULE (CDI)

$13.99

$

Usually ships in 3-6 days

0

4

Honda 30590-889-732

COIL ASSY., EXCITER

$

$

Not available

6

Honda 30600-841-000

TERMINAL ASSY., IGNITION (NOT AVAILABLE)

Note: Use up to Engine SN 1440678.

$

$

Not available

6

Honda 30600-889-003

TERMINAL ASSY., IGNITION

Note: Use from Engine SN 1440679.

$23.99

$

Usually ships in 3-6 days

0

7

Honda 30700-865-013

CAP ASSY., NOISE SUPPRESSOR

Note: (Optional).

$

$

Not available

8

Honda 30702-890-000

CLAMP, IGNITION WIRE

$7.49

$

Usually ships in 3-6 days

0

10

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$2.49

$

In Stock, Qty 17

0

11

Honda 90015-883-000

BOLT, FLANGE (6X28) (CT200)

$3.99

$

In Stock, Qty 8

0

14

Honda 94301-08140

PIN, DOWEL (8X14)

$2.99

$

In Stock, Qty 8

0

15

Honda 95003-60001-10M

HOSE, BULK (22X27X1000) (22X27X60)

$

$

Not available

16

Honda 95701-06012-08

BOLT, FLANGE (6X12)

$2.49

$

In Stock, only 1 left!

0
