G300 HQB6 (G300) - Honda Engine, Made in Japan (SN: G300-1000001 - G300-1457696) 1/6 REDUCTION Parts Diagram

Engine, Made in Japan

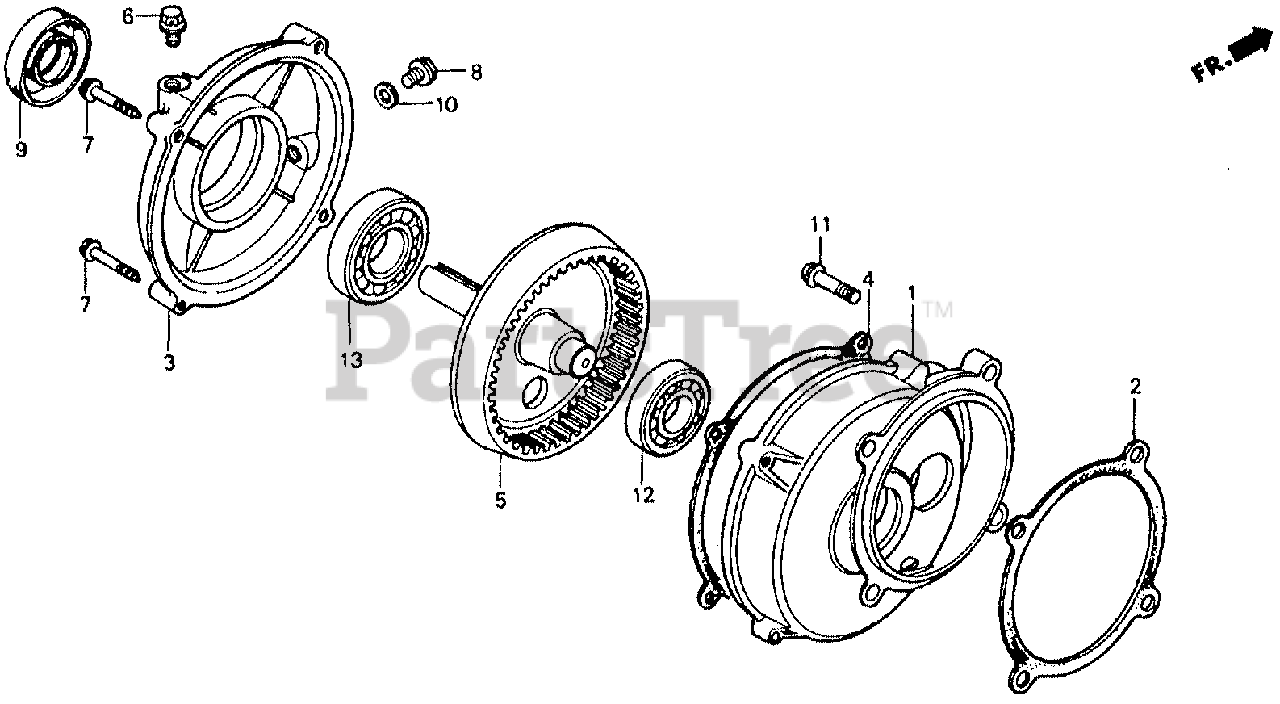

1/6 REDUCTION Parts Diagram

  • Title

1

Honda 21521-889-305

CASE, REDUCTION (Honda Code 0760694).

Note: Use up to Engine SN 1148826.

$

$

Not available

1

Honda 21521-889-741

CASE, REDUCTION (Honda Code 1114875).

Note: Use from Engine SN 1148827.

$

$

Not available

2

Honda 21591-889-306

SEE PART DETAILS - PRI; GASKET, REDUCTION CASE (Honda Code 5393343).

$7.49

$

Usually ships in 3-6 days

0

3

Honda 21621-889-740

COVER, REDUCTION (Honda Code 0808063).

Note: Use up to Engine SN 1148826.

$

$

Not available

3

Honda 21621-889-741

COVER, REDUCTION (Honda Code 1114883).

Note: Use from Engine SN 1148827.

$

$

Not available

4

Honda 21692-ZH8-800

SEE PART DETAILS - PRI; GASKET, REDUCTION COVER (Honda Code 3683844).

Note: Use from Engine SN 1148827.

$10.99

$

In Stock, Qty 10

0

4

Honda 21692-883-740

SEE PART DETAILS - SUP; GASKET, REDUCTION COVER (Honda Code 0674366).

Note: Use up to Engine SN 1148826.

$

$

Currently unavailable

5

Honda 23710-889-740

SHAFT, P.T.O. (Honda Code 0760769).

$

$

Currently unavailable

6

Honda 90002-883-740

BOLT, BREATHING (Honda Code 0674382).

$5.99

$

Usually ships in 3-6 days

0

7

Honda 90017-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X32) (Honda Code 0636076).

Note: Use up to Engine SN 1148826.

$3.49

$

In Stock, only 1 left!

0

7

Honda 95701-08035-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X35) (Honda Code 2724029).

Note: Use from Engine SN 1148827.

$2.99

$

In Stock, only 3 left!

0

8

Honda 90131-883-000

SEE PART DETAILS - SUP; BOLT, DRAIN PLUG (Honda Code 0636902).

$

$

Not available

8

Honda 90131-896-650

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG (Honda Code 1986231).

$4.99

$

In Stock, only 2 left!

0

9

Honda 91201-890-003

OIL SEAL (30X46X8) (Honda Code 0756494).

$11.99

$

Usually ships in 3-6 days

0

10

Honda 94109-12000

SEE PART DETAILS - PRI; WASHER, DRAIN PLUG (12MM) (Honda Code 0171868).

$1.49

$

In Stock, only 4 left!

0

11

Honda 95701-08032-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X32) (Honda Code 2602241).

$2.99

$

Usually ships in 3-6 days

0

12

Honda 96100-62040-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6204) (Honda Code 0674390).

$16.99

$

In Stock, only 2 left!

0

13

Honda 96100-62060-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6206) (Honda Code 0636118).

$30.99

$

In Stock, only 1 left!

0
