G30 A (G30) - Honda Engine, Made in Japan (SN: G30-105103 - G30-999999) RECOIL STARTER Parts Diagram

Engine, Made in Japan

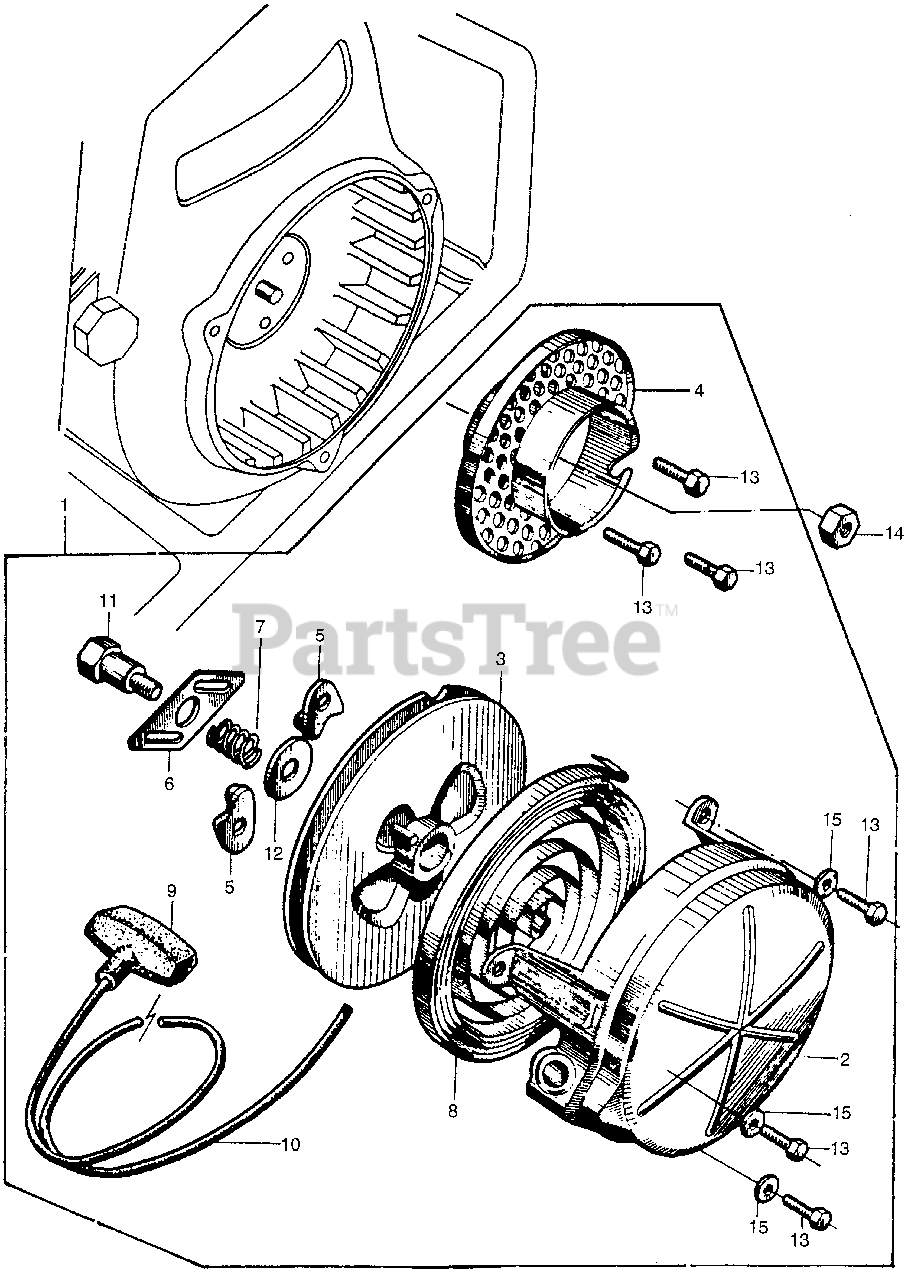

RECOIL STARTER Parts Diagram

  • Title

1

Honda 28400-806-305C

STARTER ASSY., RECOIL *R2* (SCARLET) (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 28410-806-810

CASE, RECOIL STARTER (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 28420-806-810

PULLEY, RECOIL STARTER

$

$

Not available

4

Honda 28426-805-830

PULLEY, STARTER RATCHET (NA USE ALT:28400-806-305C)

$

$

Currently unavailable

5

Honda 28441-806-820

RATCHET, STARTER

$

$

Not available

6

Honda 28445-805-811

PLATE, FRICTION

$

$

Not available

7

Honda 28446-806-810

SPRING, FRICTION

$

$

Not available

8

Honda 28451-805-810

SPRING, STARTER RETURN (NOT AVAILABLE)

$

$

Currently unavailable

9

Honda 28461-823-810

SEE PART DETAILS - SUP; KNOB, STARTER

$

$

Currently unavailable

10

Honda 28462-ZE8-811

ROPE, STARTER (N/A: USE ALT P/N 08560-ZG921-11)

$

$

Currently unavailable

11

Honda 90081-805-811

BOLT, SPECIAL (8MM)

Note: Use from Engine SN 1033507.

$

$

Not available

11

Honda 90081-806-810

BOLT, SPECIAL (8MM)

Note: Use from Engine SN 1000130 to 1033506.

$

$

Not available

12

Honda 90474-806-810

WASHER (8MM) (NOT AVAILABLE)

$

$

Currently unavailable

13

Honda 92101-06008-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X8)

$1.99

$

Usually ships in 3-6 days

0

14

Honda 94030-08000

NUT, HEX. (8MM)

$1.49

$

Usually ships in 3-6 days

0

15

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0
