G30 A (G30) - Honda Engine, Made in Japan (SN: G30-105103 - G30-999999) OIL PAN + CAMSHAFT Parts Diagram

Engine, Made in Japan

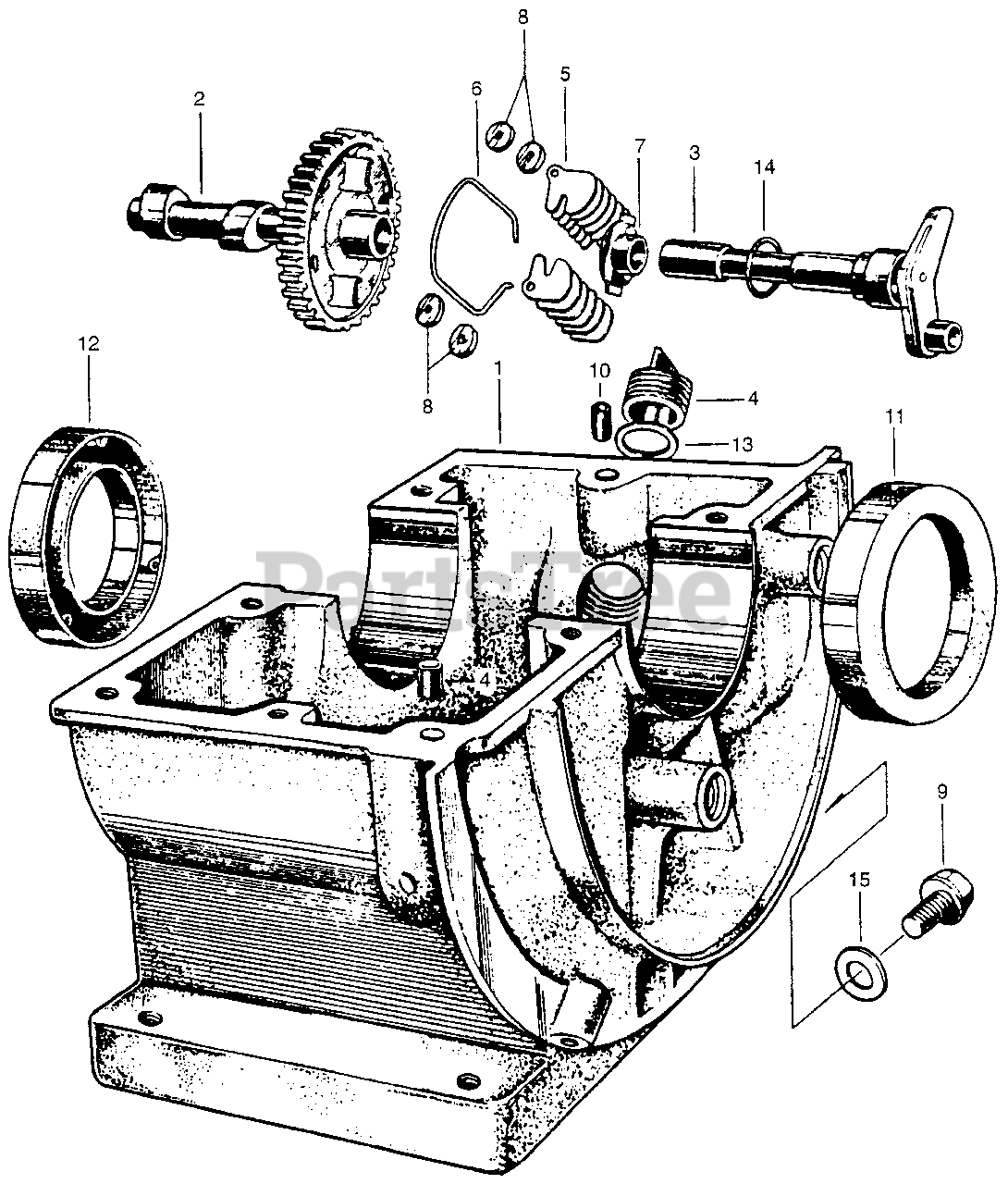

OIL PAN + CAMSHAFT Parts Diagram

  • Title

1

Honda 11200-807-640

PAN, OIL

Note: Use from Engine SN 1000130 to 1000080.

$

$

Not available

1

Honda 11200-807-642

PAN, OIL

Note: Use from Engine SN 1000081.

$

$

Not available

2

Honda 14101-805-030

CAMSHAFT

$

$

Not available

3

Honda 14210-805-000

CENTER, CAMSHAFT (NOT AVAILABLE)

$

$

Currently unavailable

4

Honda 15611-921-000

CAP, OIL (YELLOW)

$13.99

$

Usually ships in 3-6 days

0

5

Honda 16511-805-000

WEIGHT, GOVERNOR

$

$

Not available

6

Honda 16515-805-000

CENTER, GOVERNOR WEIGHT

$

$

Currently unavailable

7

Honda 16521-805-000

SLIDER, GOVERNOR

Note: Use from Engine SN 1000130 to 1245650.

$

$

Not available

7

Honda 16521-805-010

SLIDER, GOVERNOR

Note: Use from Engine SN 1245660 to 1007634.

$

$

Not available

7

Honda 16521-805-040

SLIDER, GOVERNOR

Note: Use from Engine SN 1007635.

$

$

Not available

8

Honda 16523-805-000

COLLAR, DISTANCE

Note: Use from Engine SN 1029926.

$

$

Not available

9

Honda 90015-807-640

BOLT, DRAIN PLUG

$

$

Not available

10

Honda 90701-200-000

PIN, KNOCK (8.5X11) (NOT AVAILABLE)

$

$

Currently unavailable

11

Honda 91201-805-000

OIL SEAL (PJ255510) (NOT AVAILABLE)

$15.99

$

Usually ships in 3-6 days

0

12

Honda 91204-805-003

OIL SEAL (30X65X10) (NOT AVAILABLE)

$

$

Currently unavailable

13

Honda 91301-805-000

O-RING (26X2.7)

$4.99

$

Usually ships in 3-6 days

0

14

Honda 91302-KG4-003

O-RING (20X2)

$

$

Currently unavailable

15

Honda 94109-12000

WASHER, DRAIN PLUG (12MM)

$1.49

$

In Stock, only 3 left!

0
