G30 A (G30) - Honda Engine, Made in Japan (SN: G30-105103 - G30-999999) CYLINDER Parts Diagram

Engine, Made in Japan

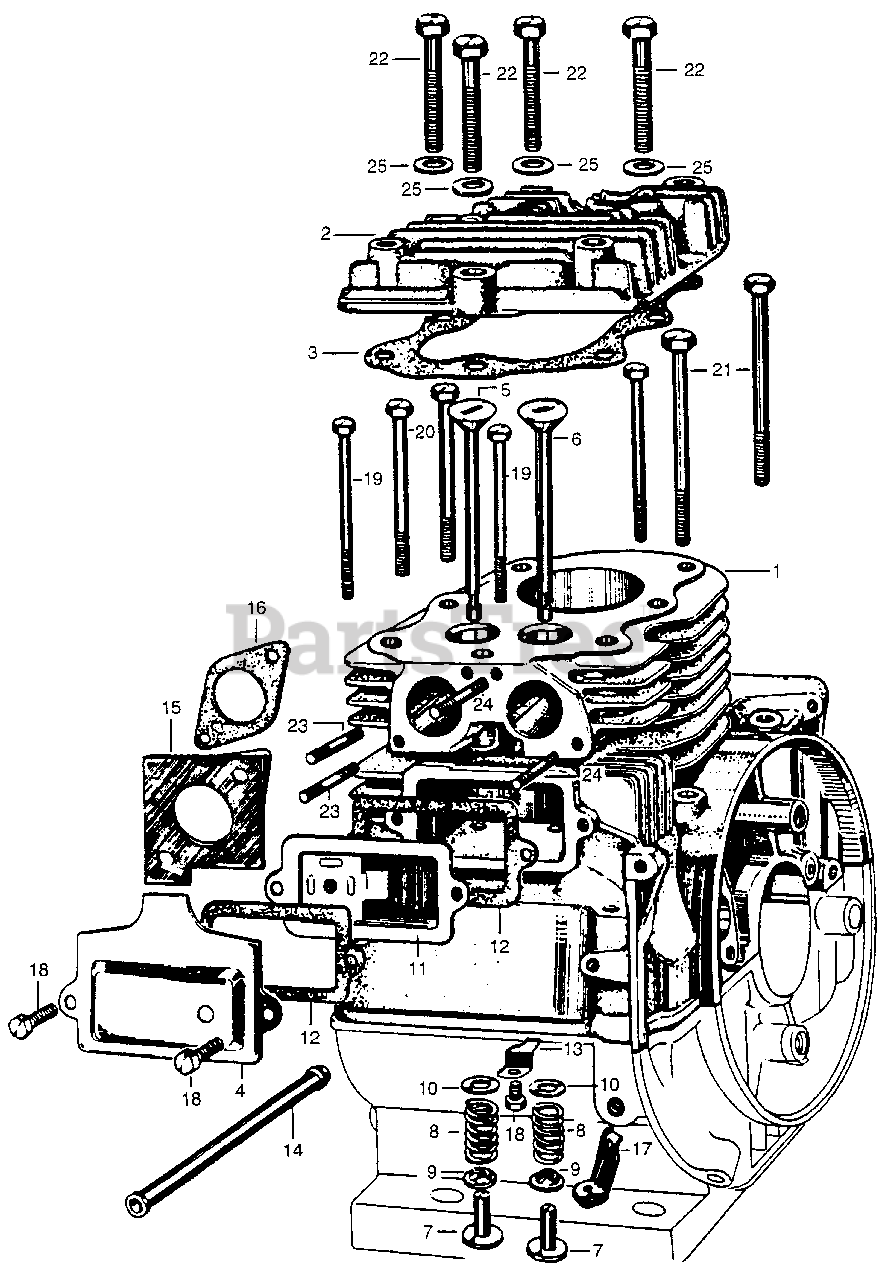

CYLINDER Parts Diagram

  • Title

1

Honda 12100-805-060

CYLINDER

Note: Use from Engine SN 1035755.

$

$

Not available

1

Honda 12100-806-020

CYLINDER

Note: Use from Engine SN 1000130 to 1035754.

$

$

Not available

2

Honda 12201-806-000

CYLINDER HEAD

$

$

Not available

3

Honda 12251-805-000

GASKET, CYLINDER HEAD (NOT AVAILABLE)

$

$

Currently unavailable

4

Honda 12361-805-020

COVER, TAPPET

$

$

Not available

5

Honda 14711-805-000

VALVE, IN. (NOT AVAILABLE)

$

$

Currently unavailable

6

Honda 14721-805-000

VALVE, EX. (NOT AVAILABLE)

$

$

Currently unavailable

7

Honda 14731-805-000

LIFTER, VALVE

$

$

Not available

8

Honda 14751-805-000

SPRING, VALVE

$

$

Currently unavailable

9

Honda 14771-883-305

RETAINER, VALVE SPRING

$14.99

$

Usually ships in 3-6 days

0

10

Honda 14775-805-010

SEAT, VALVE SPRING

$

$

Not available

11

Honda 15710-805-000

PLATE, BREATHER (NOT AVAILABLE)

$

$

Currently unavailable

12

Honda 15719-805-000

GASKET, BREATHER CASE (NOT AVAILABLE)

$

$

Currently unavailable

13

Honda 15751-805-000

SEPARATOR, OIL

$

$

Not available

14

Honda 15761-805-010

PIPE, BREATHER

Note: Use from Engine SN 1000130 to 1021746.

$

$

Not available

14

Honda 15761-805-020

PIPE, BREATHER

Note: Use from Engine SN 1021747.

$

$

Not available

15

Honda 16211-805-020

INSULATOR, CARBURETOR (NOT AVAILABLE)

$

$

Currently unavailable

16

Honda 16229-805-000

GASKET, CARBURETOR INSULATOR (NOT AVAILABLE)

$

$

Currently unavailable

17

Honda 16591-805-000

HOLDER, WIRE

$

$

Not available

18

Honda 92101-06012-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X12)

$1.99

$

Usually ships in 3-6 days

0

19

Honda 92101-06070-0A

BOLT, HEX. (6X70)

$3.49

$

Usually ships in 3-6 days

0

20

Honda 92000-08070-0A

BOLT, HEX. (8X70)

$

$

Currently unavailable

20

Honda 92200-08070-0A

BOLT, HEX. (8X70) (NOT AVAILABLE)

$

$

Currently unavailable

21

Honda 92101-08095-0A

BOLT, HEX. (8X95)

$4.49

$

Usually ships in 3-6 days

0

22

Honda 92101-10050-0A

BOLT, HEX. (10X50)

$3.99

$

Usually ships in 3-6 days

0

23

Honda 92900-06025-0B

SEE PART DETAILS - PRI; BOLT, STUD (6X25)

$2.49

$

Usually ships in 3-6 days

0

24

Honda 92900-06018-0B

SEE PART DETAILS - PRI; BOLT, STUD (6X18)

$2.49

$

Usually ships in 3-6 days

0

25

Honda 94101-10000

WASHER, PLAIN (10MM)

$1.49

$

Usually ships in 3-6 days

0
