G30 A (G30) - Honda Engine, Made in Japan (SN: G30-105103 - G30-999999) CRANKSHAFT + PISTON Parts Diagram

Engine, Made in Japan

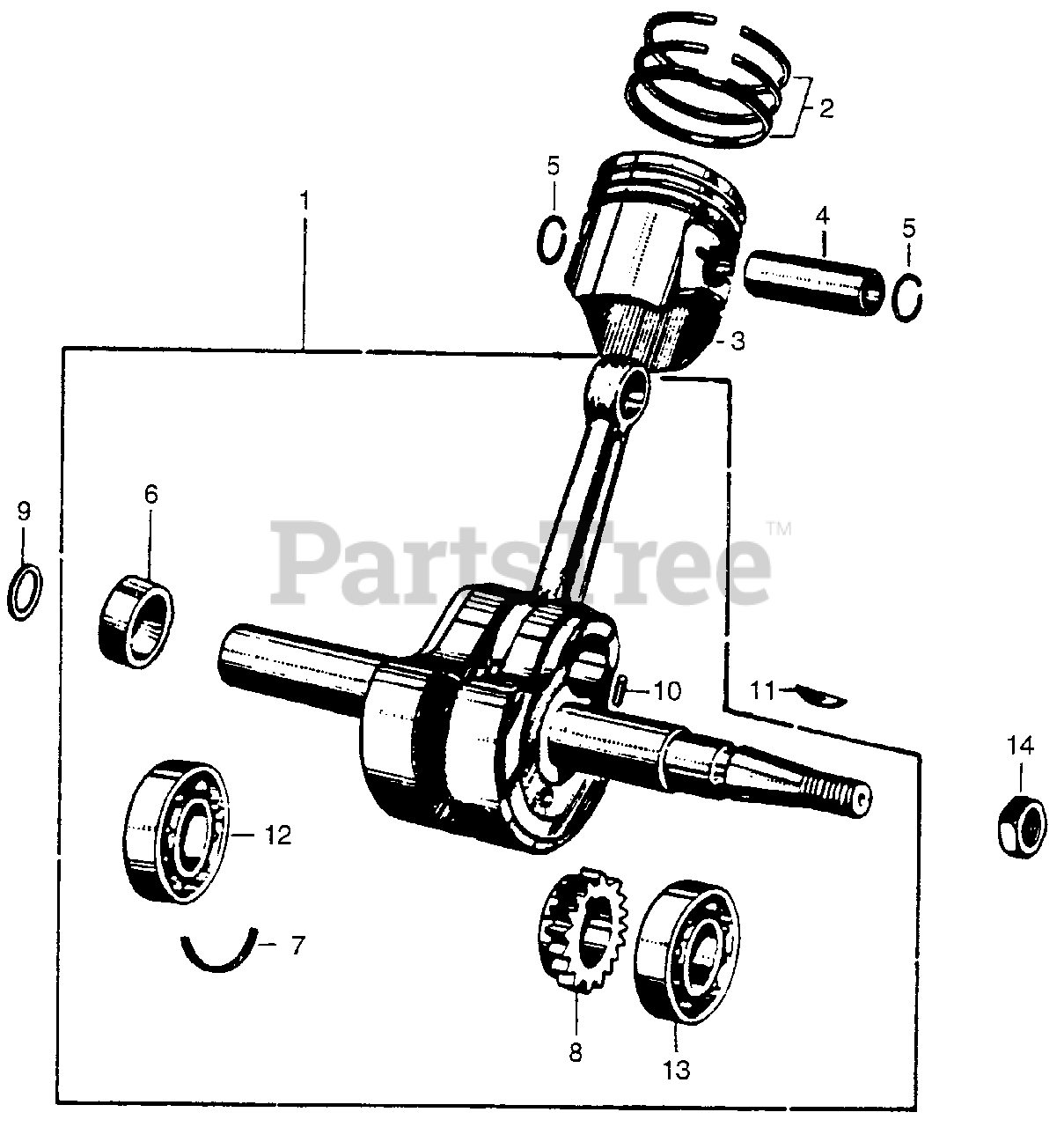

CRANKSHAFT + PISTON Parts Diagram

  • Title

1

Honda 13000-807-692

CRANKSHAFT ASSY. (N/A: SEE COMPONENTS)

$

$

Currently unavailable

2

Honda 13011-805-000

RING SET, PISTON (STD)

$

$

Not available

2

Honda 13021-805-000

RING SET, PISTON (OVER SIZE)

$

$

Not available

2

Honda 13031-805-000

RING SET, PISTON (OVER SIZE)

$

$

Not available

2

Honda 13041-805-000

RING SET, PISTON (OVER SIZE)

$

$

Not available

3

Honda 13101-805-000

PISTON (STD)

$71.99

$

Usually ships in 3-6 days

0

3

Honda 13102-805-000

PISTON (OVER SIZE) (0.25)

$

$

Not available

3

Honda 13103-805-000

PISTON (OVER SIZE) (0.50)

$

$

Not available

3

Honda 13104-805-000

PISTON (OVER SIZE) (0.75)

$

$

Not available

4

Honda 13111-805-000

PIN, PISTON (NOT AVAILABLE)

$

$

Not available

5

Honda 94601-18000

CLIP, PISTON PIN (18MM)

$1.49

$

Usually ships in 3-6 days

0

6

Honda 13325-805-820

COLLAR, CRANKSHAFT (NOT AVAILABLE)

$

$

Currently unavailable

7

Honda 13491-701-000

RING, BALL BEARING SET (NOT AVAILABLE)

$

$

Currently unavailable

8

Honda 14311-805-000

GEAR, TIMING

$

$

Not available

9

Honda 90534-706-010

WASHER, LOCK (8MM)

$6.99

$

Usually ships in 3-6 days

0

10

Honda 90719-200-000

PIN, TIMING SPROCKET KNOCK (NOT AVAILABLE)

$

$

Currently unavailable

11

Honda 90741-253-000

KEY, WOODRUFF

$

$

Not available

12

Honda 91001-701-000

BEARING, BALL (6305SHS)

$

$

Not available

12

Honda 91002-805-000

BEARING, RADIAL BALL (6206SHS)

$

$

Not available

13

Honda 91001-805-000

BALL BEARING (62055)

$

$

Not available

14

Honda 94001-14000-0S

NUT, HEX. (14MM)

$2.99

$

Usually ships in 3-6 days

0
