G26LRV (960730027) - Husqvarna 26" Grass Catcher (2010-05) Repair Parts Parts Diagram

26" Grass Catcher

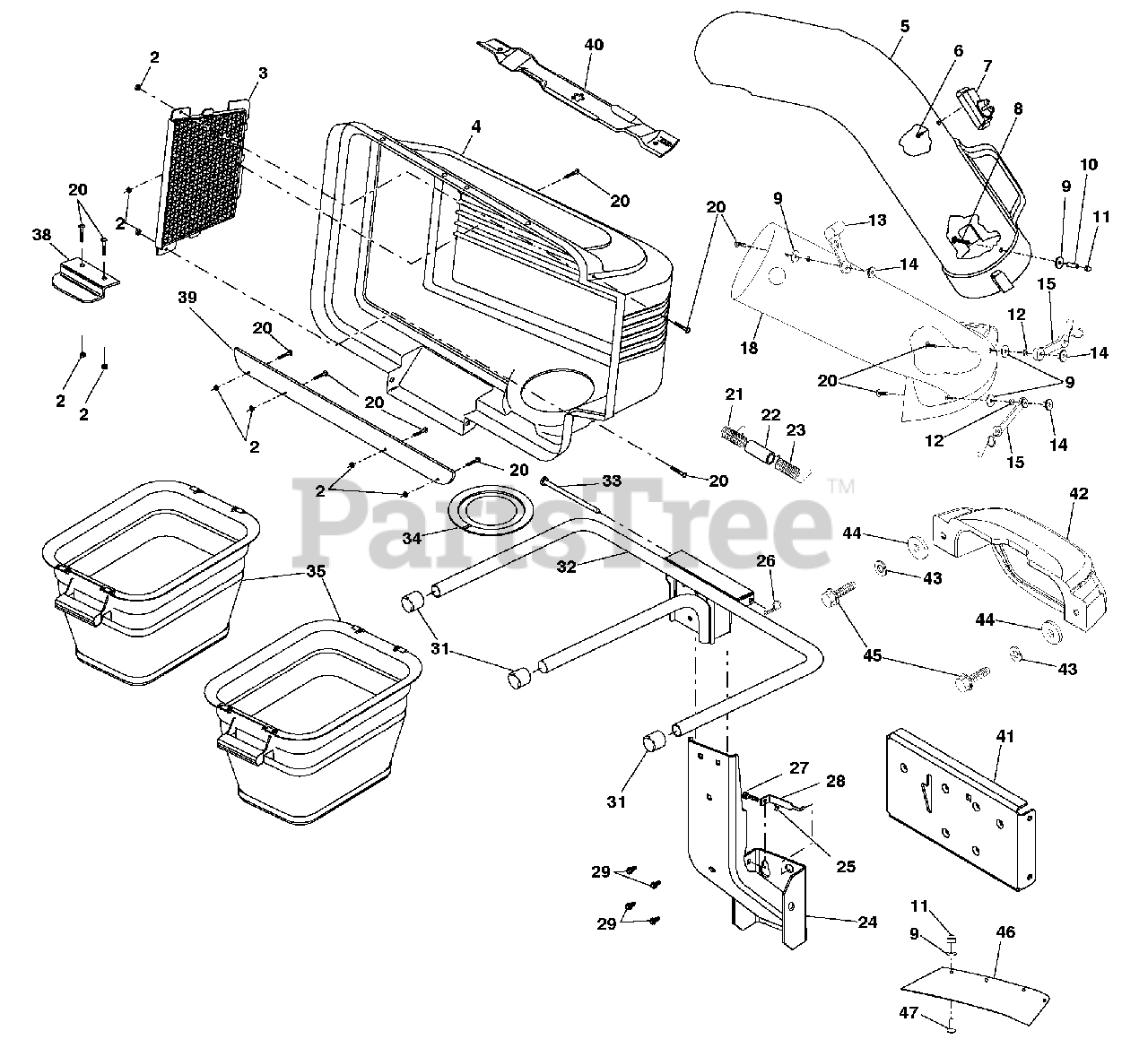

Repair Parts Parts Diagram

  • Title

2

Husqvarna 532069180

Nut, Crown Lock #10-24

$6.49

$

Usually ships in 3-10 days

0

3

Husqvarna 532127533

Screen, Cover

$18.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532171061

Cover Assembly

Note: (Includes 3, 38, 39)

$121.99

$

In Stock, only 1 left!

0

5

Husqvarna 532411397

Chute, Upper

$91.99

$

Usually ships in 3-10 days

0

6

Husqvarna 818021008

Screw, Special #10-14 X 1/2

$5.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532130933

Full Bag Indicator

$7.99

$

In Stock, only 2 left!

0

8

Husqvarna 532087175

Screw, #10-24 X 1-1/8
(Superseded to 874981024)

$9.99

$

In Stock, Qty 9

0

9

Husqvarna 532052784

Washer 3/16 X 3/4 X 16 Ga.
(Superseded to 819061216)

$4.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532171345

Spacer, Split
(Superseded to 532007206)

$7.49

$

In Stock, Qty 6

0

11

Husqvarna 532060867

Nut, Acorn #10-24
(Superseded to 539108086)

$4.99

$

In Stock, Qty 20+

0

12

Husqvarna 810071000

Washer, Lock

$4.99

$

In Stock, Qty 11

0

13

Husqvarna 532109808

Latch, Chute

$6.99

$

In Stock, Qty 13

0

14

Husqvarna 532125004

Nut, Weld
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

15

532160793

Latch, Hook

$

$

Not available

18

Husqvarna 532428148

Chute, Lower

$84.99

$

Usually ships in 3-10 days

0

20

Husqvarna 871081010

Screw #10-24 X 5/8
(Superseded to 596039001)

$3.99

$

In Stock, Qty 17

0

21

Husqvarna 532132796

Spring, Cover L.H. (Black)

$6.99

$

In Stock, only 1 left!

0

22

Husqvarna 532133235

Spacer, Cover

$7.49

$

In Stock, only 1 left!

0

23

Husqvarna 532132983

Spring, Cover R.H. (Gray)

$6.99

$

In Stock, only 1 left!

0

24

Husqvarna 532180923

Support Assemble

$72.99

$

Usually ships in 3-10 days

0

25

Husqvarna 873800400

Locknut
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

26

Husqvarna 532124670

Spring, Retainer

$

$

Not available

27

Husqvarna 872140405

Bolt

$7.49

$

In Stock, Qty 7

0

28

Husqvarna 532179745

Bracket, Lock

$5.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532170165

Bolt, Shoulder 5/16-18

$4.99

$

In Stock, Qty 5

0

31

Husqvarna 532174083

Plug, Tubing End

$7.49

$

In Stock, only 3 left!

0

32

Husqvarna 532179746

Bagger, Frame

$121.99

$

In Stock, only 1 left!

0

33

Husqvarna 532192786

Pin, Hinge

$17.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532127534

Gasket, Cover

$13.99

$

In Stock, only 2 left!

0

35

Husqvarna 532429113

Container

$

$

Not available

38

Husqvarna 532130895

Latch Handle, Cover

$7.49

$

Usually ships in 3-10 days

0

39

Husqvarna 532155042

Strip, Reinforcement

$18.99

$

In Stock, only 1 left!

0

40

Husqvarna 532428580

Blade

$42.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532433968

Drawbar
(Superseded to 532437335)

$54.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532433461

Counterweight

$

$

Not available

43

Husqvarna 819111216

Washer
(Superseded to 734116301)

$3.99

$

In Stock, Qty 11

0

44

Husqvarna 810040500

Lock Washer
(Superseded to 596238801)

$3.99

$

In Stock, only 2 left!

0

45

Husqvarna 874780516

Bolt

$6.49

$

Usually ships in 3-10 days

0

46

Husqvarna 532436333

Deflector Guard

$

$

Not available

47

Husqvarna 871191008

Screw, #10-24 X 1/2

$6.49

$

Usually ships in 3-10 days

0

Husqvarna 532434660

Owner'S Manual, English/French

$

$

Not available

Husqvarna 532434661

Owner'S Manual, Spanish

$

$

Not available
