G2600 (8836-0) - Generac 2,400 Watt Portable Generator Carburetor Parts Diagram

2,400 Watt Portable Generator

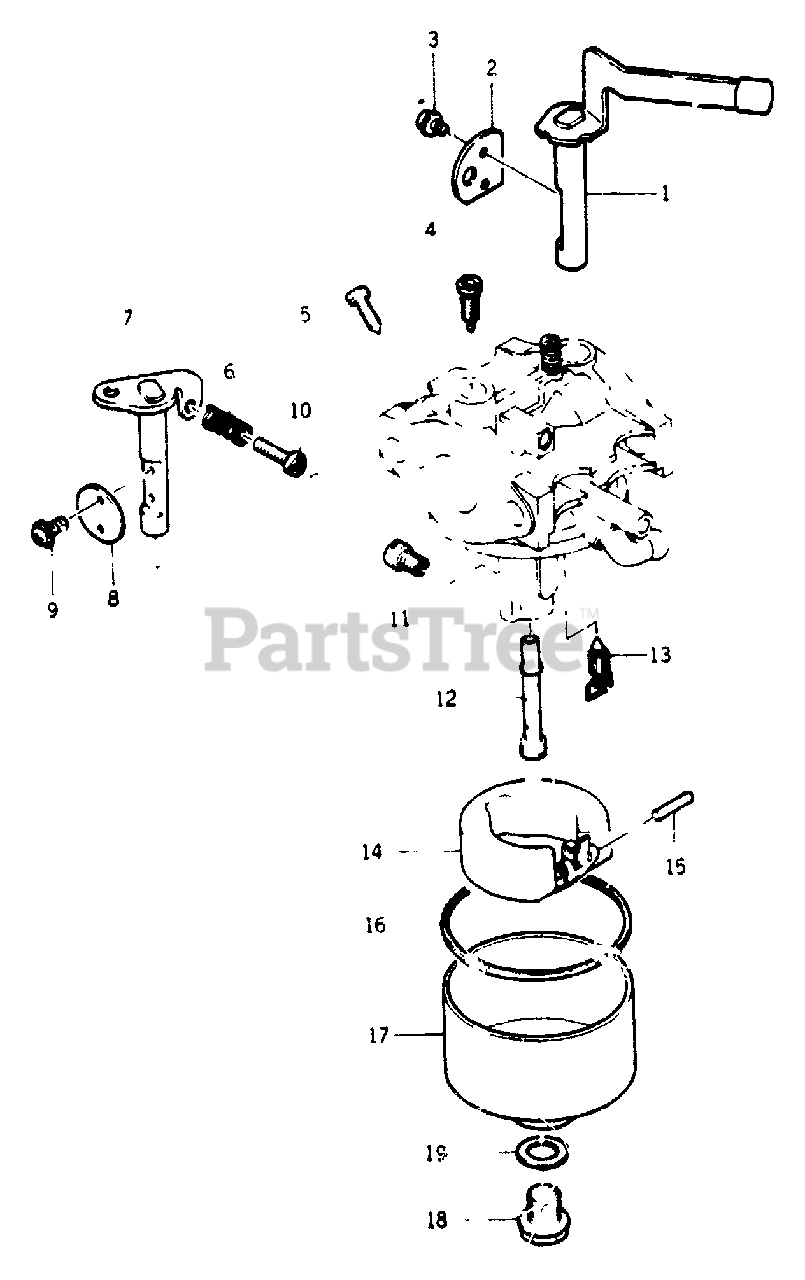

Carburetor Parts Diagram

  • Title

Briggs & Stratton 14865188

CARBURETOR ASSEMBLY

Note: Contact Generac for quantity required

$

$

Currently unavailable

1

Briggs & Stratton 20965188

SHAFT, Choke

Note: Contact Generac for quantity required

$

$

Not available

2

Briggs & Stratton 21065188

VALVE, Choke

Note: Contact Generac for quantity required

$

$

Currently unavailable

3

Briggs & Stratton 21165188

SCREW

Note: Contact Generac for quantity required

$

$

Currently unavailable

4

Briggs & Stratton 21265188

JET, Pilot (#37.5)

Note: Contact Generac for quantity required

$

$

Not available

5

Briggs & Stratton 21365188

SCREW, Pilot

Note: Contact Generac for quantity required

$

$

Currently unavailable

6

Briggs & Stratton 21465188

SPRING

Note: Contact Generac for quantity required

$

$

Currently unavailable

7

Briggs & Stratton 21565188

SHAFT Throttle

Note: Contact Generac for quantity required

$

$

Currently unavailable

8

Briggs & Stratton 21665188

VALVE Throttle

Note: Contact Generac for quantity required

$

$

Currently unavailable

9

Briggs & Stratton 21765188

SCREW

Note: Contact Generac for quantity required

$

$

Currently unavailable

10

Briggs & Stratton 21865188

SCREW, Stop

Note: Contact Generac for quantity required

$

$

Not available

11

Briggs & Stratton 21965188

JET, Main (#77.5)

Note: Contact Generac for quantity required

$

$

Currently unavailable

12

Briggs & Stratton 22065188

NOZZLE, Main (#5A)

Note: Contact Generac for quantity required

$

$

Not available

13

Briggs & Stratton 22165188

VALVE, Needle

Note: Contact Generac for quantity required

$

$

Not available

14

Briggs & Stratton 22265188

FLOAT

Note: Contact Generac for quantity required

$

$

Currently unavailable

15

Briggs & Stratton 22365188

PIN, Float
(Superseded to 22365188GS)

Note: Contact Generac for quantity required

$7.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 22465188

GASKET

Note: Contact Generac for quantity required

$

$

Currently unavailable

17

Briggs & Stratton 22565188

CHAMBER, Float

Note: Contact Generac for quantity required

$

$

Currently unavailable

18

Briggs & Stratton 22665188

BOLT

Note: Contact Generac for quantity required

$

$

Currently unavailable

19

Briggs & Stratton 22765188

GASKET

Note: Contact Generac for quantity required

$

$

Currently unavailable
