G200 VA5 (G200) - Honda Engine, Made in Japan (SN: G200-1000001 - G200-2344556) PISTON + + CONNECTING ROD Parts Diagram

Engine, Made in Japan

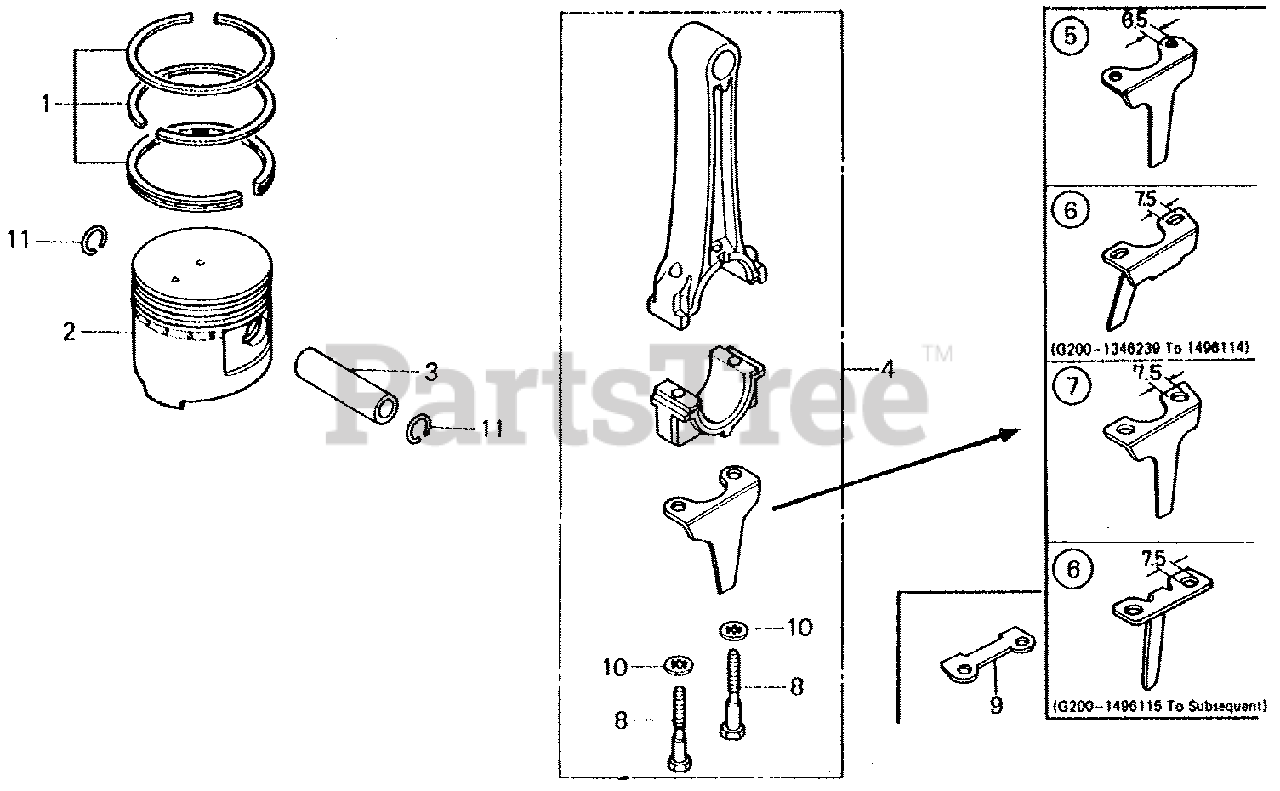

PISTON + + CONNECTING ROD Parts Diagram

  • Title

1

Honda 13010-YA0-004

SEE PART DETAILS - PRI; RING SET, PISTON (STD) (Honda Code 3098761).

$45.99

$

Usually ships in 3-6 days

0

1

Honda 13010-883-003

SEE PART DETAILS - SUP; RING SET, PISTON (STD) (Honda Code 0649087).

Note: Use up to Engine SN 1152170.

$

$

Currently unavailable

1

Honda 13010-883-010

SEE PART DETAILS - SUP; RING SET, PISTON (STD) (Honda Code 0751370).

Note: Use up to Engine SN 1477816.

$

$

Currently unavailable

1

Honda 13010-894-004

SEE PART DETAILS - SUP; RING SET, PISTON (STD) (Honda Code 0905299).

Note: Use from Engine SN 1477817.

$

$

Not available

1

Honda 13011-YA0-004

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.25) (Honda Code 2957850).

Note: (Optional).

$

$

Not available

1

Honda 13011-894-003

SEE PART DETAILS - SUP; RING SET, PISTON (OS 0.25) (Honda Code 1021625).
(Superseded to 13011-YA0-004)

Note: (Optional). Use up to Engine SN 1477816.

$

$

Not available

1

Honda 13011-894-004

SEE PART DETAILS - SUP; RING SET, PISTON (OS 0.25) (Honda Code 0905307).
(Superseded to 13011-YA0-004)

Note: (Optional). Use from Engine SN 1477817.

$

$

Not available

1

Honda 13012-YA0-004

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.50) (Honda Code 3100484).

Note: (Optional).

$50.99

$

Usually ships in 3-6 days

0

1

Honda 13012-883-003

RING SET, PISTON (OS 0.50) (Honda Code 0649103).

Note: (Optional). Use up to Engine SN 1152170.

$

$

Currently unavailable

1

Honda 13012-894-003

RING SET, PISTON (OS 0.50) (Honda Code 1024272).

Note: (Optional). Use from Engine SN 1152171 to 1477816.

$

$

Currently unavailable

1

Honda 13013-YA0-004

SEE PART DETAILS - PRI; RING SET, PISTON (0.75) (Honda Code 3109006).

Note: (Optional).

$50.99

$

Usually ships in 3-6 days

0

1

Honda 13013-894-004

SEE PART DETAILS - SUP; RING SET, PISTON (0.75) (Honda Code 0905323).

Note: (Optional). Use from Engine SN 1477817.

$

$

Currently unavailable

2

Honda 13101-883-003

SEE PART DETAILS - PRI; PISTON (STD) (Honda Code 0649129).

$79.99

$

Usually ships in 3-6 days

0

2

Honda 13102-883-003

PISTON (OS 0.25) (Honda Code 0649137).

Note: (Optional).

$

$

Not available

2

Honda 13103-883-003

PISTON (OS 0.50) (Honda Code 0649145).

Note: (Optional).

$

$

Not available

2

Honda 13104-883-003

PISTON (0.75) (Honda Code 0649152).

Note: (Optional).

$57.99

$

Usually ships in 3-6 days

0

3

Honda 13111-883-000

PIN, PISTON (Honda Code 0636183).

$12.99

$

In Stock, only 1 left!

0

4

Honda 13200-883-040

SEE PART DETAILS - SUP; ROD ASSY., CONNECTING (Honda Code 0875773).
(Superseded to 13200-883-060)

$

$

Not available

4

Honda 13200-883-040

SEE PART DETAILS - SUP; ROD ASSY., CONNECTING (Honda Code 0875773).
(Superseded to 13200-883-060)

Note: Use up to Engine SN 1346238.

$

$

Not available

4

Honda 13200-883-060

SEE PART DETAILS - PRI; ROD ASSY., CONNECTING (Honda Code 6052765).

$

$

Not available

4

Honda 13200-883-060

SEE PART DETAILS - PRI; ROD ASSY., CONNECTING (Honda Code 6052765).

Note: Use up to Engine SN 1346238.

$

$

Not available

4

Honda 13200-883-506

SEE PART DETAILS - PRI; ROD ASSY., CONNECTING (UNDER SIZE) (Honda Code 5722053).

Note: (Optional).

$

$

Currently unavailable

5

Honda 13281-883-000

SEE PART DETAILS - SUP; DIPPER, CONNECTING ROD (Honda Code 0635664).

Note: Use up to Engine SN 1179851.

$

$

Currently unavailable

5

Honda 13281-883-010

SEE PART DETAILS - PRI; DIPPER, CONNECTING ROD (NOT AVAILABLE) (Honda Code 0751412).

Note: Use from Engine SN 1179852 to 1346238.

$

$

Not available

6

Honda 13281-883-030

DIPPER, CONNECTING ROD (Honda Code 0875799).

Note: Use from Engine SN 1346239.

$13.99

$

Usually ships in 3-6 days

0

7

Honda 13281-883-328

DIPPER, CONNECTING ROD (NOT AVAILABLE) (Honda Code 0875807).

Note: Use up to Engine SN 1346238.

$

$

Currently unavailable

8

Honda 90001-883-000

SEE PART DETAILS - SUP; BOLT, CONNECTING ROD (6MM) (Honda Code 0636837).

Note: Use up to Engine SN 1269498.

$4.99

$

Usually ships in 3-6 days

0

8

Honda 90001-883-010

SEE PART DETAILS - PRI; BOLT, CONNECTING ROD (6MM) (NOT AVAILABLE) (Honda Code 0809145).

Note: Use from Engine SN 1269499 to 1346238.

$

$

Currently unavailable

8

Honda 90001-883-020

SEE PART DETAILS - PRI; BOLT, CONNECTING ROD (7MM) (Honda Code 0821272).

Note: Use from Engine SN 1346239.

$4.49

$

Usually ships in 3-6 days

0

9

Honda 90431-883-000

WASHER B, CONNECTING ROD (Honda Code 0636910).

Note: Use up to Engine SN 1269498.

$3.49

$

In Stock, only 2 left!

0

10

Honda 90432-883-000

WASHER, LOCK (6MM) (N/A: SEE ASSEMBLY) (Honda Code 0809160).

Note: Use from Engine SN 1269499 to 1346238.

$

$

Currently unavailable

10

Honda 90432-889-003

SEE PART DETAILS - PRI; WASHER, LOCK (7MM) (Honda Code 0821280).

Note: Use from Engine SN 1346239.

$1.99

$

Usually ships in 3-6 days

0

11

Honda 90551-883-000

SEE PART DETAILS - SUP; CLIP, PISTON PIN (15MM) (Honda Code 0747808).
(Superseded to 94601-15000)

Note: Use from Engine SN 1029555.

$1.49

$

Usually ships in 3-6 days

0

11

Honda 94601-15000

SEE PART DETAILS - PRI; CLIP, PISTON PIN (15MM) (Honda Code 0156018).

$1.49

$

Usually ships in 3-6 days

0
