G200 VA5 (G200) - Honda Engine, Made in Japan (SN: G200-1000001 - G200-2344556) CYLINDER + CYLINDER HEAD Parts Diagram

Engine, Made in Japan

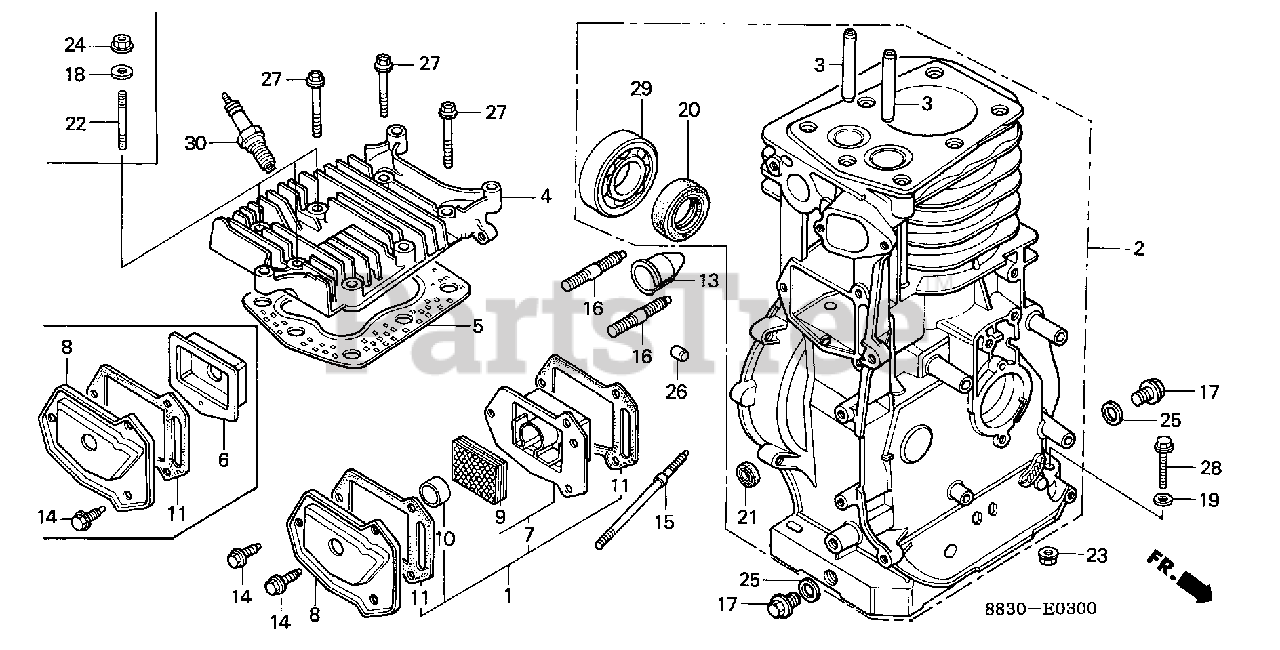

CYLINDER + CYLINDER HEAD Parts Diagram

  • Title

1

Honda 06123-883-305

CASE KIT, BREATHER Use up to Engine SN 1556857.

$12.99

$

Usually ships in 3-6 days

0

2

Honda 120A0-883-630

CYLINDER ASSY.

Note: Use up to Engine SN 1269468.

$

$

Not available

2

Honda 120A0-883-630

CYLINDER ASSY.

Note: Use from Engine SN 1269469.

$

$

Not available

3

Honda 12133-883-306

SEE PART DETAILS - PRI; GUIDE, VALVE (OVER SIZE)

$18.99

$

Usually ships in 3-6 days

0

3

Honda 12134-883-305

SEE PART DETAILS - SUP; GUIDE, VALVE (OVER SIZE)
(Superseded to 12133-883-306)

$18.99

$

Usually ships in 3-6 days

0

4

Honda 122A2-883-030

SEE PART DETAILS - PRI; CYLINDER HEAD

$

$

Not available

4

Honda 12221-883-325

SEE PART DETAILS - SUP; CYLINDER HEAD

$

$

Currently unavailable

5

Honda 12281-883-306

SEE PART DETAILS - SUP; GASKET, CYLINDER HEAD
(Superseded to 12281-883-801)

$31.99

$

Usually ships in 3-6 days

0

5

Honda 12281-883-800

SEE PART DETAILS - PRI; GASKET, CYLINDER HEAD
(Superseded to 12281-883-801)

$31.99

$

Usually ships in 3-6 days

0

5

Honda 12281-883-801

SEE PART DETAILS - PRI; GASKET, CYLINDER HEAD

$31.99

$

Usually ships in 3-6 days

0

6

Honda 12360-883-010

CASE, BREATHER

Note: Use up to Engine SN 1556857.

$14.99

$

Usually ships in 3-6 days

0

7

Honda 12360-883-010

CASE, BREATHER

Note: Use from Engine SN 1556858.

$14.99

$

Usually ships in 3-6 days

0

8

Honda 12361-883-000

COVER, TAPPET ROOM

$16.99

$

Usually ships in 3-6 days

0

9

Honda 12367-883-003

FILTER, BREATHER

Note: Use from Engine SN 1556858.

$3.99

$

Usually ships in 3-6 days

0

10

Honda 12369-883-000

SEAL, BREATHER

Note: Use from Engine SN 1556858.

$4.49

$

Usually ships in 3-6 days

0

11

Honda 12375-883-000

GASKET, TAPPET COVER

Note: Use up to Engine SN 1556857.

$4.49

$

In Stock, only 2 left!

0

11

Honda 12375-883-000

GASKET, TAPPET COVER

Note: Use from Engine SN 1556858.

$4.49

$

In Stock, only 2 left!

0

14

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$2.49

$

In Stock, Qty 17

0

15

Honda 90043-883-010

BOLT, STUD (6X95)

Note: Use up to Engine SN 1537217.

$7.49

$

Usually ships in 3-6 days

0

15

Honda 90043-883-681

SEE PART DETAILS - PRI; BOLT, STUD (6X89)

Note: Use from Engine SN 1537218.

$7.49

$

Usually ships in 3-6 days

0

16

Honda 90047-883-000

BOLT, STUD (8X35)

$5.49

$

Usually ships in 3-6 days

0

17

Honda 90131-883-000

SEE PART DETAILS - SUP; BOLT, DRAIN PLUG (12X15)

$

$

Not available

17

Honda 90131-896-650

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG (12X15)

$5.49

$

In Stock, Qty 11

0

20

Honda 91201-Z0T-801

SEE PART DETAILS - PRI; OIL SEAL (25X41X6)

$9.49

$

In Stock, Qty 11

0

20

Honda 91202-883-005

SEE PART DETAILS - SUP; OIL SEAL (25X41X6)
(Superseded to 91201-Z0T-801)

$9.49

$

In Stock, Qty 11

0

25

Honda 94109-12000

WASHER, DRAIN PLUG (12MM)

$1.49

$

In Stock, Qty 20+

0

26

Honda 94301-08140

PIN, DOWEL (8X14)

$2.99

$

In Stock, Qty 8

0

27

Honda 95700-08045-08

BOLT, FLANGE (8X45)
(Superseded to 95701-08045-08)

$2.99

$

In Stock, Qty 8

0

27

Honda 95701-08045-08

BOLT, FLANGE (8X45)

$2.99

$

In Stock, Qty 8

0

29

Honda 96100-62050-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6205)

$25.99

$

In Stock, only 1 left!

0

30

Honda 98076-54716

SPARK PLUG (BR-4HS) (NGK)

$3.99

$

In Stock, Qty 7

0

30

Honda 98076-54720

SPARK PLUG (W14F-U) (DENSO)

$3.49

$

Usually ships in 3-6 days

0

30

Honda 98076-54757

SPARK PLUG (W14FR-U)

$3.49

$

Usually ships in 3-6 days

0

30

Honda 98076-54911

SPARK PLUG (BP-4HS-10) (NGK)

$3.49

$

Usually ships in 3-6 days

0

30

Honda 98076-54914

SEE PART DETAILS - SUP; SPARK PLUG (BPR-4HS-10) (NGK)
(Superseded to 98076-54917)

$3.99

$

In Stock, only 3 left!

0

30

Honda 98076-54917

SEE PART DETAILS - PRI; SPARK PLUG (BPR4HS-10)

$3.99

$

In Stock, only 3 left!

0

30

Honda 98076-54919

SPARK PLUG (BP4HS-10)

$

$

Not available

30

Honda 98076-54921

SPARK PLUG (W14FP-UL10)

$3.49

$

Usually ships in 3-6 days

0

30

Honda 98076-54954

SPARK PLUG (W14FPR-UL10)

$3.99

$

Usually ships in 3-6 days

0

30

Honda 98076-56710

SEE PART DETAILS - SUP; SPARK PLUG (B6HS) (NGK)

$

$

Not available

30

Honda 98076-56716

SPARK PLUG (BR6HS) (NGK)

$4.49

$

In Stock, Qty 10

0

30

Honda 98076-56724

SPARK PLUG (W20FS-U) (DENSO)

$3.49

$

Usually ships in 3-6 days

0

30

Honda 98076-56740

SEE PART DETAILS - PRI; SPARK PLUG (B6HS) (NGK)

$

$

Not available

30

Honda 98076-56927

SEE PART DETAILS - PRI; SPARK PLUG (W20FPR-U10)

$3.99

$

Usually ships in 3-6 days

0
