G200 VA5 (G200) - Honda Engine, Made in Japan (SN: G200-1000001 - G200-2344556) CONTROL Parts Diagram

Engine, Made in Japan

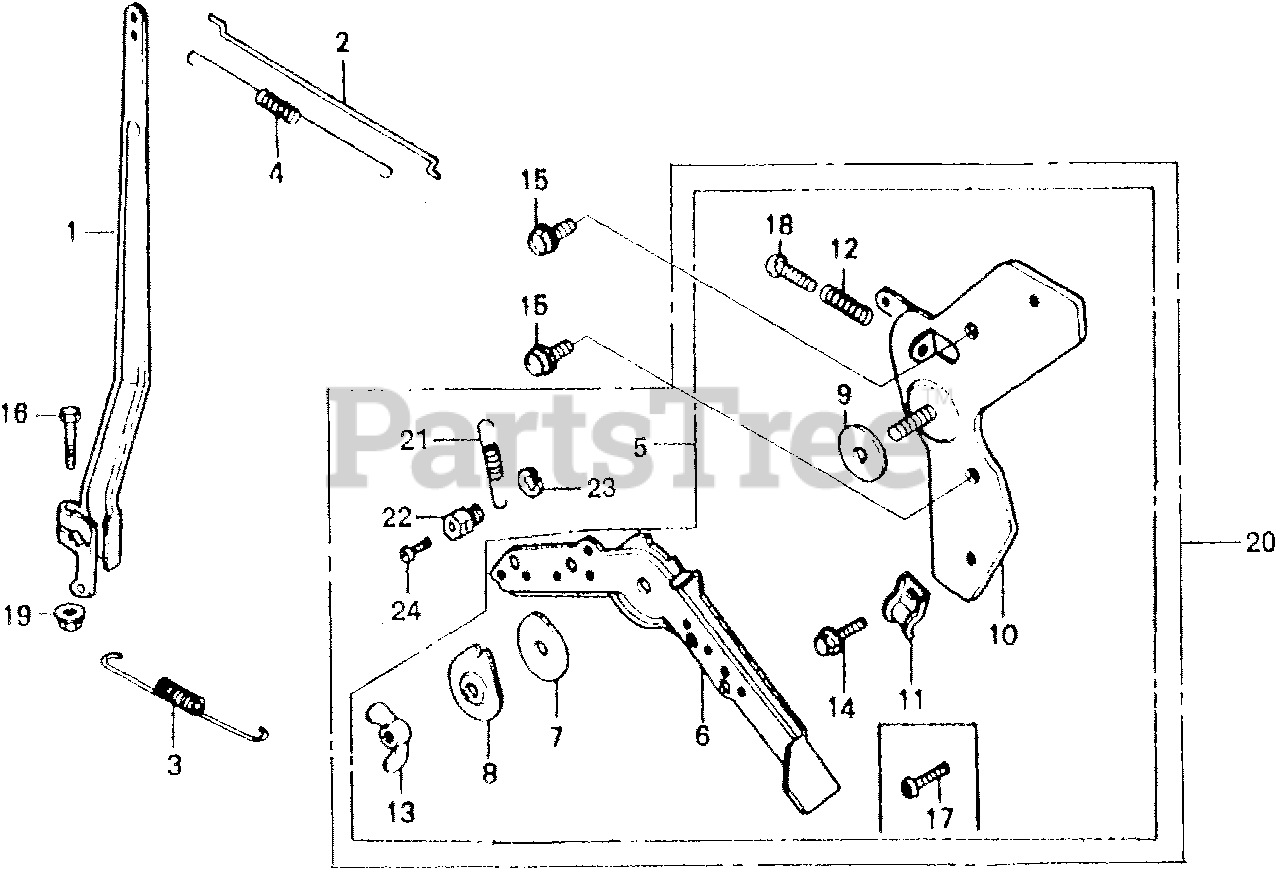

CONTROL Parts Diagram

  • Title

1

Honda 16551-883-000

ARM, GOVERNOR (Honda Code 0635789).

$13.99

$

Usually ships in 3-6 days

0

2

Honda 16555-883-010

SEE PART DETAILS - PRI; ROD, GOVERNOR (Honda Code 0957092).

$

$

Not available

3

Honda 16561-883-010

SEE PART DETAILS - PRI; SPRING, GOVERNOR (Honda Code 0649236).

$6.49

$

In Stock, only 1 left!

0

4

Honda 16562-883-000

SPRING, THROTTLE RETURN (Honda Code 0635805).

Note: Use up to Engine SN 1251483.

$

$

Not available

4

Honda 16562-883-010

SPRING, THROTTLE RETURN (Honda Code 0807719).

Note: Use from Engine SN 1251484.

$4.99

$

In Stock, Qty 8

0

5

Honda 16570-883-W10

SEE PART DETAILS - PRI; CONTROL ASSY. (Honda Code 6880348).

$49.99

$

Usually ships in 3-6 days

0

6

Honda 16571-883-300

SEE PART DETAILS - SUP; LEVER, CONTROL (Honda Code 0636373).

Note: (Optional). Use from Engine SN 2327377.

$24.99

$

Usually ships in 3-6 days

0

6

Honda 16571-883-300

SEE PART DETAILS - SUP; LEVER, CONTROL (Honda Code 0636373).

Note: Use up to Engine SN 2327376.

$24.99

$

Usually ships in 3-6 days

0

7

Honda 16574-883-300

SPRING, LEVER (Honda Code 0636381).

Note: Use up to Engine SN 2327376.

$4.49

$

In Stock, only 1 left!

0

7

Honda 16574-883-300

SPRING, LEVER (Honda Code 0636381).

Note: (Optional). Use from Engine SN 2327377.

$4.49

$

In Stock, only 1 left!

0

8

Honda 16575-883-300

WASHER, CONTROL LEVER (Honda Code 0636399).

Note: Use up to Engine SN 2327376.

$4.99

$

Usually ships in 3-6 days

0

8

Honda 16575-883-300

WASHER, CONTROL LEVER (Honda Code 0636399).

Note: (Optional). Use from Engine SN 2327377.

$4.99

$

Usually ships in 3-6 days

0

9

Honda 16576-883-300

SPACER, CONTROL LEVER (Honda Code 0636407).

Note: Use up to Engine SN 2327376.

$5.99

$

Usually ships in 3-6 days

0

9

Honda 16576-883-300

SPACER, CONTROL LEVER (Honda Code 0636407).

Note: (Optional). Use from Engine SN 2327377.

$5.99

$

Usually ships in 3-6 days

0

10

Honda 16581-883-320

SEE PART DETAILS - PRI; BASE, CONTROL LEVER (Honda Code 0724484).

Note: Use up to Engine SN 2327376.

$

$

Not available

10

Honda 16581-883-320

SEE PART DETAILS - PRI; BASE, CONTROL LEVER (Honda Code 0724484).

Note: (Optional). Use from Engine SN 2327377.

$

$

Not available

11

Honda 16582-883-300

HOLDER, CONTROL CABLE (Honda Code 0636423).

Note: Use up to Engine SN 2327376.

$4.49

$

Usually ships in 3-6 days

0

11

Honda 16582-883-300

HOLDER, CONTROL CABLE (Honda Code 0636423).

Note: (Optional). Use from Engine SN 2327377.

$4.49

$

Usually ships in 3-6 days

0

12

Honda 16584-883-300

SPRING, CONTROL ADJUSTING (Honda Code 0636431).

Note: Use up to Engine SN 2327376.

$5.49

$

In Stock, Qty 6

0

12

Honda 16584-883-300

SPRING, CONTROL ADJUSTING (Honda Code 0636431).

Note: (Optional). Use from Engine SN 2327377.

$5.49

$

In Stock, Qty 6

0

13

Honda 82111-567-831

WINGNUT (6MM) (Honda Code 0672873).
(Superseded to 90352-883-003)

Note: Use up to Engine SN 1094580.

$

$

Not available

13

Honda 90352-883-003

WINGNUT (6MM) (Honda Code 0724492).

Note: Use from Engine SN 1094581 to 2327376.

$

$

Not available

13

Honda 90352-883-003

WINGNUT (6MM) (Honda Code 0724492).

Note: (Optional). Use from Engine SN 2327377.

$

$

Not available

14

Honda 90002-892-000

BOLT, FLANGE (5X10) (Honda Code 0928051).

Note: Use from Engine SN 1575772 to 2327376.

$1.99

$

In Stock, Qty 5

0

14

Honda 90002-892-000

BOLT, FLANGE (5X10) (Honda Code 0928051).

Note: (Optional). Use from Engine SN 2327377.

$1.99

$

In Stock, Qty 5

0

15

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$2.49

$

In Stock, Qty 17

0

16

Honda 90015-ZE5-010

SEE PART DETAILS - PRI; BOLT, GOVERNOR ARM (Honda Code 2418671).

$3.49

$

In Stock, only 3 left!

0

17

Honda 93500-05010-0A

SEE PART DETAILS - PRI; SCREW, PAN (5X10) (Honda Code 0156976).

Note: Use up to Engine SN 1575771.

$1.49

$

In Stock, Qty 8

0

18

Honda 93500-05022-0A

SEE PART DETAILS - PRI; SCREW, PAN (5X22) (Honda Code 0171801).

Note: Use up to Engine SN 2327376.

$0.99

$

Usually ships in 3-6 days

0

18

Honda 93500-05022-0A

SEE PART DETAILS - PRI; SCREW, PAN (5X22) (Honda Code 0171801).

Note: (Optional). Use from Engine SN 2327377.

$0.99

$

Usually ships in 3-6 days

0

19

Honda 94050-06080

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0612689).

$0.99

$

In Stock, only 3 left!

0

20

Honda 16570-883-010

CONTROL ASSY. (Honda Code 0636357).

Note: (Optional). Use from Engine SN 2327377.

$

$

Not available

21

Honda 16592-883-310

SEE PART DETAILS - PRI; SPRING, CABLE RETURN (Honda Code 0743203).

Note: (Optional). Use from Engine SN 2327377.

$3.49

$

Usually ships in 3-6 days

0

22

Honda 16594-883-010

SEE PART DETAILS - PRI; HOLDER, WIRE (Honda Code 2686558).

Note: (Optional). Use from Engine SN 2327377.

$9.49

$

In Stock, only 3 left!

0

23

Honda 90605-230-000

CIRCLIP (5MM) (Honda Code 0138768).

Note: (Optional). Use from Engine SN 2327377.

$4.49

$

In Stock, only 2 left!

0

24

Honda 93500-04006-0H

SEE PART DETAILS - PRI; SCREW, PAN (4X6) (Honda Code 0285627).

Note: (Optional). Use from Engine SN 2327377.

$1.49

$

In Stock, Qty 7

0
