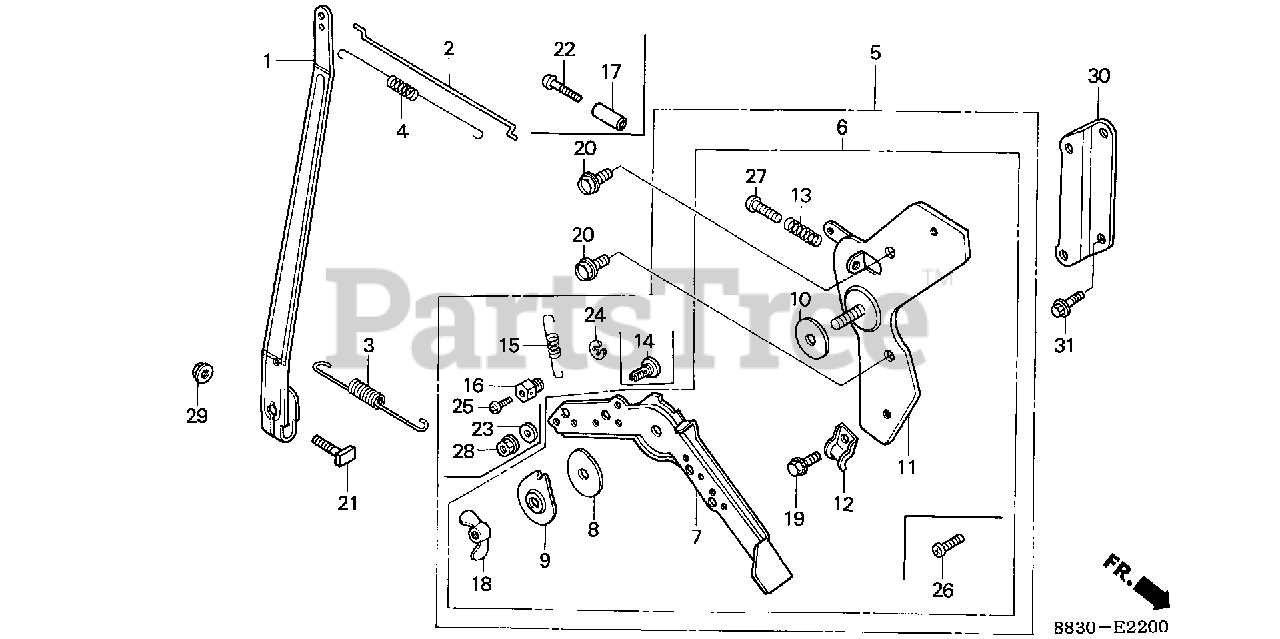

G200 VA5 (G200) - Honda Engine, Made in Japan (SN: G200-1000001 - G200-2344556) CONTROL (1) Parts Diagram

Engine, Made in Japan

CONTROL (1) Parts Diagram

  • Title

1

Honda 16551-883-000

ARM, GOVERNOR

$13.99

$

Usually ships in 3-6 days

0

2

Honda 16555-883-010

ROD, GOVERNOR

$

$

Not available

3

Honda 16561-883-010

SPRING, GOVERNOR

$6.49

$

In Stock, only 1 left!

0

4

Honda 16562-883-000

SPRING, THROTTLE RETURN

Note: Use up to Engine SN 1251483.

$

$

Not available

4

Honda 16562-883-010

SPRING, THROTTLE RETURN

Note: Use from Engine SN 1251484.

$4.99

$

In Stock, Qty 8

0

5

Honda 16570-883-010

CONTROL ASSY. Use from Engine SN 2327377.

$

$

Not available

6

Honda 16570-883-W10

SEE PART DETAILS - PRI; CONTROL ASSY.

$49.99

$

Usually ships in 3-6 days

0

7

Honda 16571-883-300

SEE PART DETAILS - SUP; LEVER, CONTROL

$24.99

$

Usually ships in 3-6 days

0

7

Honda 16571-883-300

SEE PART DETAILS - SUP; LEVER, CONTROL Use from Engine SN 2327377.

$24.99

$

Usually ships in 3-6 days

0

8

Honda 16574-883-300

SPRING, LEVER

$4.49

$

In Stock, only 1 left!

0

8

Honda 16574-883-300

SPRING, LEVER Use from Engine SN 2327377.

$4.49

$

In Stock, only 1 left!

0

9

Honda 16575-883-300

WASHER, CONTROL LEVER

$4.99

$

Usually ships in 3-6 days

0

9

Honda 16575-883-300

WASHER, CONTROL LEVER Use from Engine SN 2327377.

$4.99

$

Usually ships in 3-6 days

0

10

Honda 16576-883-300

SPACER, CONTROL LEVER

$5.99

$

Usually ships in 3-6 days

0

10

Honda 16576-883-300

SPACER, CONTROL LEVER Use from Engine SN 2327377.

$5.99

$

Usually ships in 3-6 days

0

11

Honda 16581-883-320

BASE, CONTROL LEVER Use up to Engine SN 1094580.

$

$

Not available

11

Honda 16581-883-320

BASE, CONTROL LEVER

Note: Use from Engine SN 1094581.

$

$

Not available

11

Honda 16581-883-320

BASE, CONTROL LEVER Use from Engine SN 2327377.

$

$

Not available

12

Honda 16582-883-300

HOLDER, CONTROL CABLE

$4.49

$

Usually ships in 3-6 days

0

12

Honda 16582-883-300

HOLDER, CONTROL CABLE Use from Engine SN 2327377.

$4.49

$

Usually ships in 3-6 days

0

13

Honda 16584-883-300

SPRING, CONTROL ADJUSTING

$5.49

$

In Stock, Qty 7

0

13

Honda 16584-883-300

SPRING, CONTROL ADJUSTING Use from Engine SN 2327377.

$5.49

$

In Stock, Qty 7

0

15

Honda 16592-883-310

SPRING, CABLE RETURN Use from Engine SN 2327377.

$3.49

$

Usually ships in 3-6 days

0

16

Honda 16594-883-010

HOLDER, WIRE Use from Engine SN 2327377.

$9.49

$

In Stock, only 3 left!

0

18

Honda 82111-567-831

WINGNUT (6MM) Use up to Engine SN 1094580.
(Superseded to 90352-883-003)

$

$

Not available

18

Honda 90352-883-003

WINGNUT (6MM) Use from Engine SN 2327377.

$

$

Not available

19

Honda 90002-892-000

BOLT, FLANGE (5X10)

Note: Use from Engine SN 1575772.

$1.99

$

In Stock, Qty 5

0

19

Honda 90002-892-000

BOLT, FLANGE (5X10) Use from Engine SN 2327377.

$1.99

$

In Stock, Qty 5

0

20

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$2.49

$

In Stock, Qty 17

0

21

Honda 90015-ZE5-010

BOLT, GOVERNOR ARM

$3.49

$

In Stock, only 3 left!

0

24

Honda 90605-230-000

CIRCLIP (5MM) Use from Engine SN 2327377.

$4.49

$

In Stock, only 2 left!

0

25

Honda 93500-04006-0H

SCREW, PAN (4X6) Use from Engine SN 2327377.

$1.49

$

In Stock, Qty 7

0

26

Honda 93500-05010-0A

SCREW, PAN (5X10) Use up to Engine SN 1575771.

$1.49

$

In Stock, Qty 8

0

27

Honda 93500-05022-0A

SCREW, PAN (5X22)

$0.99

$

Usually ships in 3-6 days

0

27

Honda 93500-05022-0A

SCREW, PAN (5X22) Use from Engine SN 2327377.

$0.99

$

Usually ships in 3-6 days

0

28

Honda 94050-06080

NUT, FLANGE (6MM)

$0.99

$

In Stock, only 3 left!

0
