G200 SZDW (G200) - Honda Engine, Made in Japan (SN: G200-1000001 - G200-2344556) FAN COVER + SIDE COVER Parts Diagram

Engine, Made in Japan

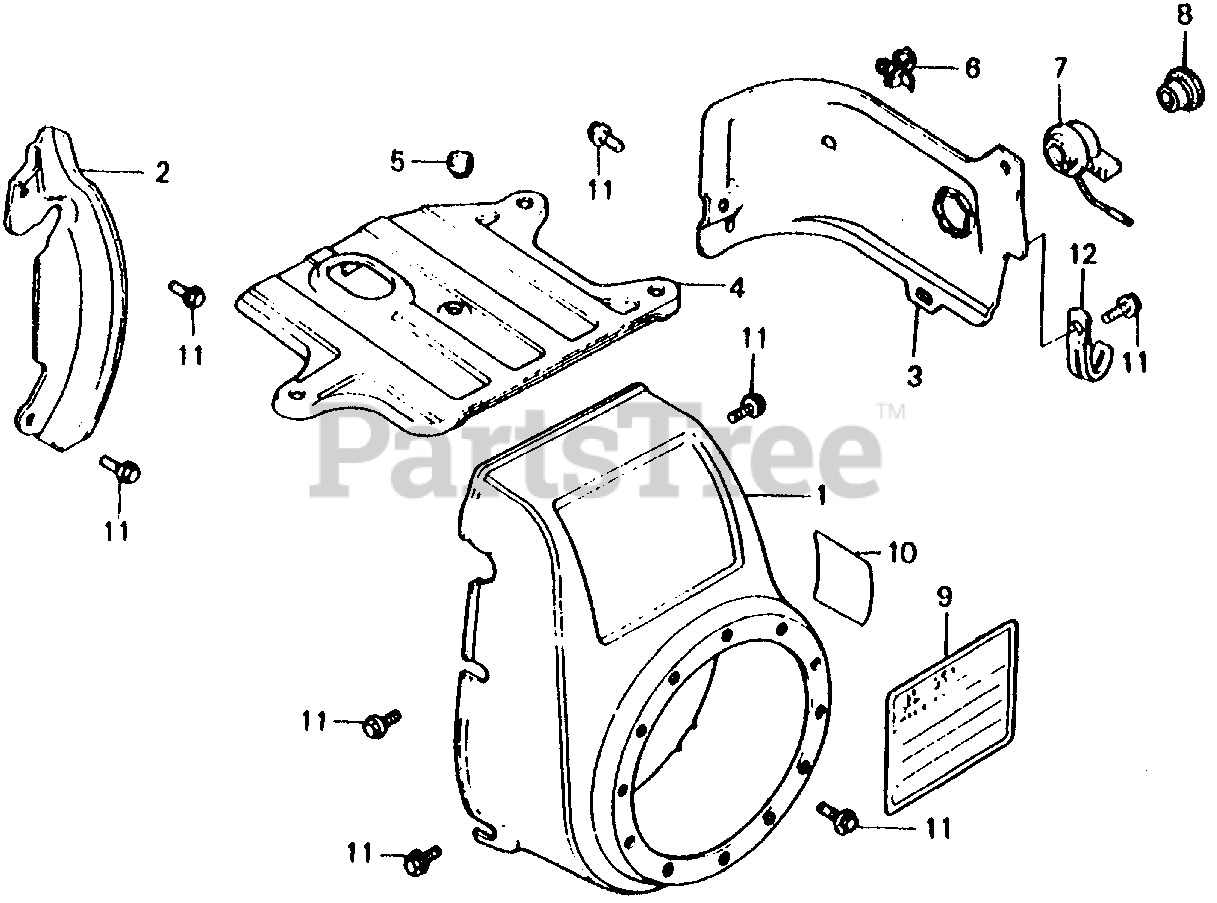

FAN COVER + SIDE COVER Parts Diagram

  • Title

1

Honda 19610-883-020ZA

SEE PART DETAILS - SUP; COVER, FAN *R8* (BRIGHT RED) (Honda Code 3476827).

$

$

Currently unavailable

1

Honda 19610-883-020ZB

SEE PART DETAILS - SUP; COVER, FAN *R8* (BRIGHT RED) (Honda Code 7660954).

$

$

Currently unavailable

2

Honda 19611-883-000

PLATE, SIDE (Honda Code 0635870).

$18.99

$

Usually ships in 3-6 days

0

3

Honda 19631-883-010

SHROUD (Honda Code 0649376).

$33.99

$

Usually ships in 3-6 days

0

4

Honda 19641-883-010

COVER, TOP (Honda Code 0635896).
(Superseded to 19641-883-020)

$35.99

$

Usually ships in 3-6 days

0

5

Honda 19643-883-010

GROMMET, TOP COVER (Honda Code 0635904).

$3.49

$

Usually ships in 3-6 days

0

6

Honda 30701-883-000

CLIP, IGNITION WIRE (8MM) (Honda Code 0636787).

$3.99

$

In Stock, only 1 left!

0

7

Honda 36100-ZE1-015

SEE PART DETAILS - PRI; SWITCH ASSY., ENGINE STOP (Honda Code 2787869).

Note: (Optional). Use up to Engine SN 2092215.

$21.99

$

In Stock, only 1 left!

0

7

Honda 36100-ZE1-015

SEE PART DETAILS - PRI; SWITCH ASSY., ENGINE STOP (Honda Code 2787869).

Note: (Optional). Use up to Engine SN 2092216.

$21.99

$

In Stock, only 1 left!

0

7

Honda 36100-883-812

SWITCH ASSY., ENGINE STOP (Honda Code 3478773).

Note: (Optional). Use from Engine SN 2359127.

$29.99

$

Usually ships in 3-6 days

0

8

Honda 81329-567-020

SEE PART DETAILS - PRI; GROMMET, DRAIN HOLE (Honda Code 0677773).

$5.99

$

Usually ships in 3-6 days

0

9

Honda 87521-883-661

SEE PART DETAILS - PRI; EMBLEM (ENGLISH/FRENCH)(SPANISH) (Honda Code 0764258).

$

$

Not available

10

Honda 87594-883-000

MARK, OIL CAUTION (Honda Code 0761205).

$

$

Not available

11

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$2.49

$

In Stock, Qty 17

0

12

Honda 91405-671-000

CLIP, CABLE (Honda Code 0612549).

$12.99

$

Usually ships in 3-6 days

0
