G200 SCY (G200) - Honda Engine, Made in Japan (SN: G200-1000001 - G200-2344556) MUFFLER (2) Parts Diagram

Engine, Made in Japan

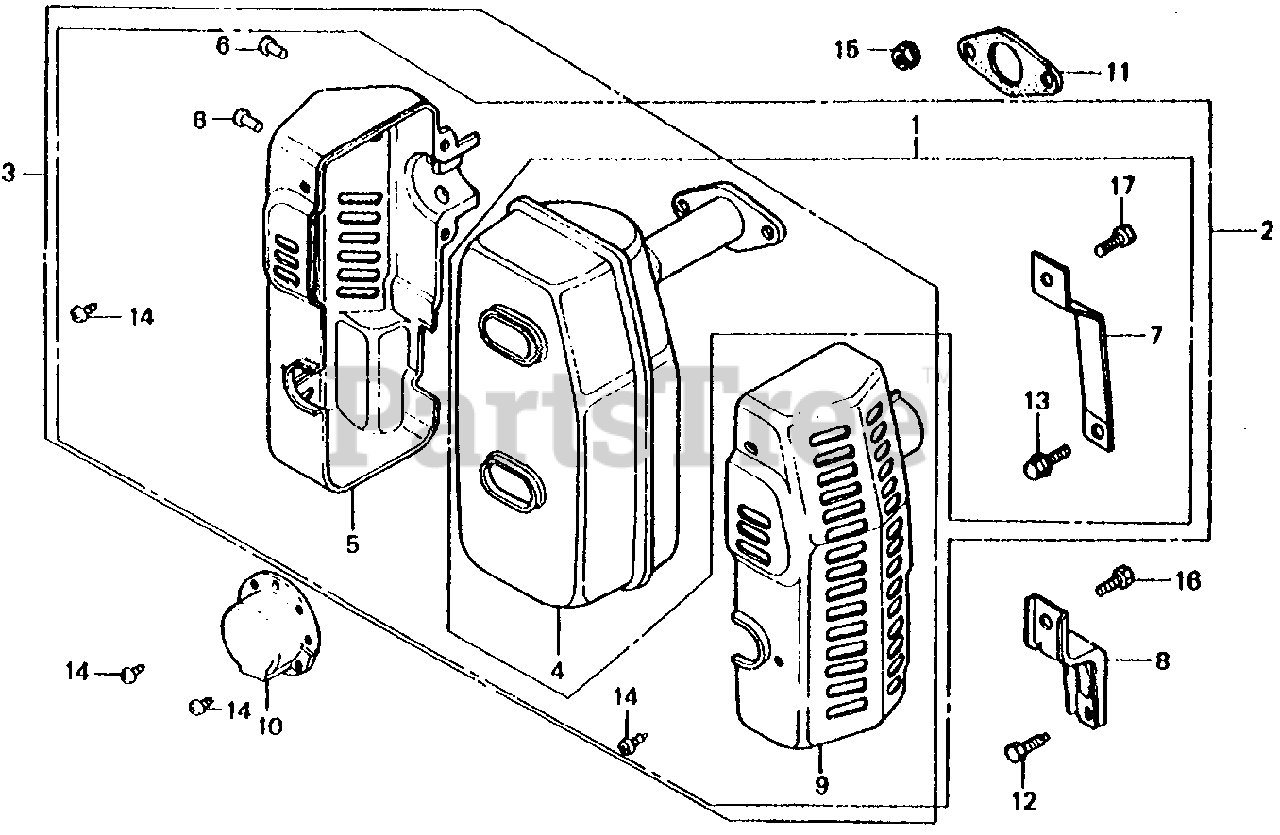

MUFFLER (2) Parts Diagram

  • Title

1

Honda 18030-883-000

MUFFLER KIT (Honda Code 1065788).

Note: (Optional). Use up to Engine SN 1543277.

$

$

Currently unavailable

2

Honda 18031-883-000

MUFFLER KIT (NOT AVAILABLE) (Honda Code 1063676).

Note: (Optional). Use up to Engine SN 1543277.

$

$

Currently unavailable

3

Honda 18300-883-600

MUFFLER ASSY. (Honda Code 1010396).

Note: Use from Engine SN 1543278 to 2342662.

$

$

Currently unavailable

4

Honda 18310-883-600

MUFFLER (Honda Code 1010404).

Note: Use from Engine SN 1543278.

$

$

Not available

5

Honda 18320-883-600

PROTECTOR, L. MUFFLER (Honda Code 1010438).

Note: Use from Engine SN 1543278.

$

$

Not available

6

Honda 18321-883-300

RIVET (4X5) (Honda Code 0636555).

Note: Use from Engine SN 1543278.

$1.99

$

Usually ships in 3-6 days

0

7

Honda 18324-883-305

SEE PART DETAILS - PRI; STAY, MUFFLER (Honda Code 1065846).

Note: (Optional). Use up to Engine SN 1543277.

$

$

Not available

8

Honda 18324-883-600

STAY, MUFFLER (Honda Code 1010446).

Note: Use from Engine SN 1543278.

$

$

Not available

9

Honda 18325-883-600

PROTECTOR, R. MUFFLER (Honda Code 1010453).

Note: Use from Engine SN 1543278.

$

$

Not available

10

Honda 18331-883-810

CAP, MUFFLER (Honda Code 0636563).

Note: Use from Engine SN 1543278.

$10.99

$

In Stock, Qty 12

0

11

Honda 18381-883-800

SEE PART DETAILS - PRI; GASKET, MUFFLER (Honda Code 4327581).

Note: Use from Engine SN 1543278.

$4.99

$

Usually ships in 3-6 days

0

12

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

Note: Use from Engine SN 1543278.

$1.99

$

In Stock, Qty 20+

0

13

Honda 90032-883-000

BOLT, FLANGE (8X18) (NOT AVAILABLE) (Honda Code 1063965).

Note: (Optional). Use up to Engine SN 1543277.

$

$

Currently unavailable

14

Honda 90183-671-003

SCREW, TAPPING (4X8) (Honda Code 0752345).
(Superseded to 90002-ZG0-003)

Note: Use from Engine SN 1543278.

$1.49

$

Usually ships in 3-6 days

0

15

Honda 94050-08080

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0468447).

Note: Use from Engine SN 1543278.

$1.49

$

In Stock, Qty 15

0

16

Honda 95700-06010-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10) (Honda Code 0344952).

Note: Use from Engine SN 1543278.

$2.49

$

In Stock, Qty 20+

0

16

Honda 95701-06010-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10) (Honda Code 2204709).

Note: Use from Engine SN 1543278.

$2.49

$

In Stock, Qty 20+

0

17

Honda 95700-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (Honda Code 0487025).

Note: (Optional). Use up to Engine SN 1543277.

$

$

Not available

17

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (Honda Code 2105799).

Note: (Optional). Use up to Engine SN 1543277.

$2.49

$

In Stock, Qty 20+

0
