G200 SCY (G200) - Honda Engine, Made in Japan (SN: G200-1000001 - G200-2344556) FUEL TANK (1) Parts Diagram

Engine, Made in Japan

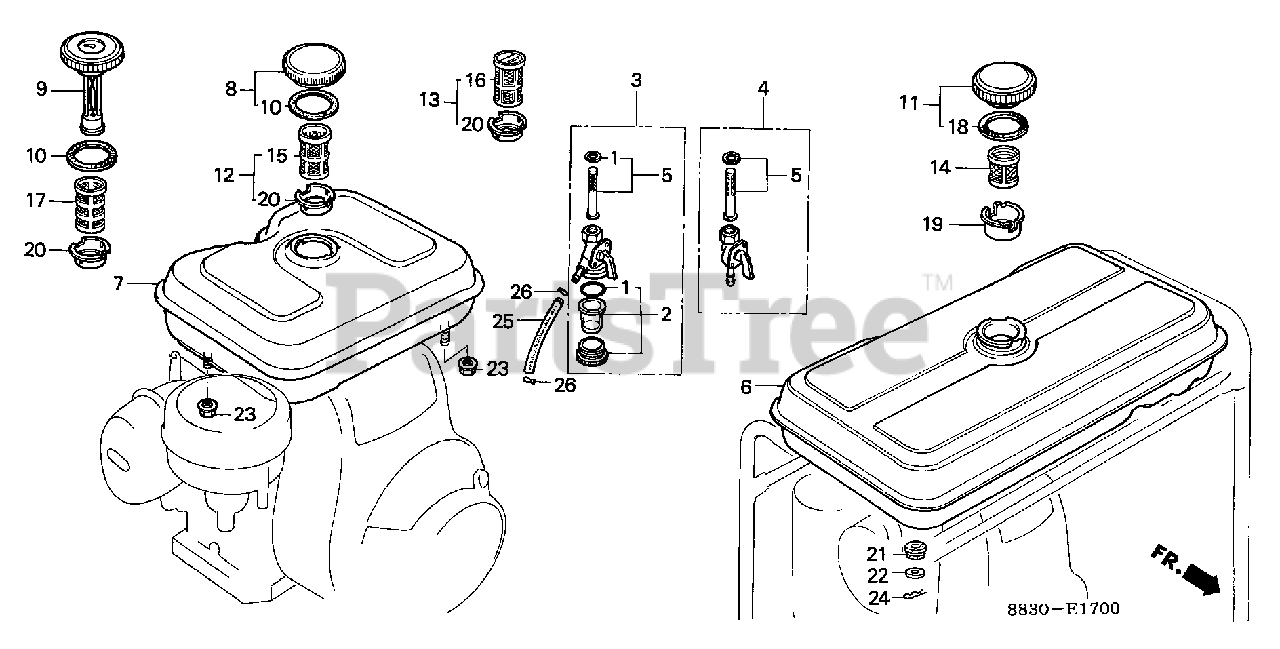

FUEL TANK (1) Parts Diagram

  • Title

1

Honda 16080-883-005

GASKET SET, PETCOCK

$12.99

$

In Stock, only 1 left!

0

2

Honda 16081-471-831

SEE PART DETAILS - PRI; CUP, FUEL STRAINER

$30.99

$

In Stock, only 1 left!

0

2

Honda 16081-883-015

SEE PART DETAILS - SUP; CUP SET, FUEL STRAINER
(Superseded to 16081-471-831)

$30.99

$

In Stock, only 1 left!

0

3

Honda 16950-883-035

SEE PART DETAILS - SUP; PETCOCK ASSY.

$

$

Currently unavailable

5

Honda 16952-883-005

SCREEN SET

$18.99

$

In Stock, only 1 left!

0

6

Honda 17500-876-010XC

TANK, FUEL Use up to Engine SN 1211507.

$

$

Currently unavailable

6

Honda 17500-876-020ZA

TANK, FUEL *NH31* Use from Engine SN 1211508.

$

$

Currently unavailable

7

Honda 06172-883-305XC

TANK, FUEL *NH31* Use up to Engine SN 1121978.

$

$

Not available

7

Honda 06172-883-305XC

TANK, FUEL *NH31* (MCKINLEY WHITE)

Note: Use from Engine SN 1252367 to 1543257.

$

$

Not available

7

Honda 17510-883-050XC

SEE PART DETAILS - SUP; TANK, FUEL
(Superseded to 17510-883-070ZA)

Note: Use from Engine SN 1543258 to 2266822.

$

$

Not available

7

Honda 17510-883-070ZA

SEE PART DETAILS - PRI; TANK, FUEL *NH31* (MCKINLEY WHITE)

Note: Use from Engine SN 1543258 to 2266822.

$

$

Not available

8

Honda 17620-ZH7-023

SEE PART DETAILS - PRI; CAP, FUEL FILLER (BLACK)
(Superseded to 17620-Z0T-305)

Note: Use from Engine SN 1543258 to 2342662.

$

$

Not available

8

Honda 17620-ZH7-023

SEE PART DETAILS - PRI; CAP, FUEL FILLER (BLACK) Use from Engine SN 2342663.
(Superseded to 17620-Z0T-305)

$

$

Not available

8

Honda 17620-044-010

SEE PART DETAILS - SUP; CAP, FUEL FILLER Use up to Engine SN 1543257.
(Superseded to 17620-102-730)

$

$

Not available

8

Honda 17620-102-730

SEE PART DETAILS - PRI; CAP, SUB-TANK Use up to Engine SN 1543257.

$

$

Not available

9

Honda 17630-883-692

GAUGE, FUEL (ENGLISH)

$

$

Not available

10

Honda 17631-096-701

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP Use up to Engine SN 1543257.
(Superseded to 17631-096-702)

$3.49

$

In Stock, only 2 left!

0

10

Honda 17631-329-003

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP Use from Engine SN 1543258.
(Superseded to 17631-329-013)

$

$

Not available

11

Honda 17620-ZH7-023

SEE PART DETAILS - PRI; CAP, FUEL FILLER (BLACK) Use from Engine SN 1518839.
(Superseded to 17620-Z0T-305)

$

$

Not available

11

Honda 17620-402-010

SEE PART DETAILS - PRI; CAP, FUEL FILLER Use from Engine SN 1211508 to 1518838.
(Superseded to 17620-402-020)

$19.99

$

In Stock, only 1 left!

0

11

Honda 17650-805-750

CAP, FUEL TANK Use up to Engine SN 1211507.

$

$

Not available

12

Honda 17670-883-000

FILTER, FUEL Use up to Engine SN 1543257.

$

$

Not available

14

Honda 17670-880-000

FILTER, FUEL Use from Engine SN 1211508.

$

$

Currently unavailable

14

Honda 17672-876-000

FILTER, FUEL Use up to Engine SN 1211507.

$

$

Currently unavailable

15

Honda 17672-880-000

FILTER, FUEL

Note: Use from Engine SN 1543258.

$13.99

$

Usually ships in 3-6 days

0

15

Honda 17672-883-300

FILTER, FUEL Use up to Engine SN 1543257.

$

$

Not available

18

Honda 17631-329-003

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP Use from Engine SN 1211508.
(Superseded to 17631-329-013)

$

$

Not available

18

Honda 17673-703-030

GASKET, FUEL FILTER Use up to Engine SN 1211507.

$

$

Not available

19

Honda 17673-893-000

HOLDER, FUEL FILTER Use from Engine SN 1211508.

$14.99

$

In Stock, only 1 left!

0

20

Honda 17673-883-300

SEE PART DETAILS - PRI; HOLDER, FUEL FILTER Use up to Engine SN 1543257.

$9.49

$

In Stock, only 4 left!

0

20

Honda 17673-893-000

HOLDER, FUEL FILTER

Note: Use from Engine SN 1543258.

$14.99

$

In Stock, only 1 left!

0

21

Honda 17682-817-020

RUBBER, TANK CUSHION

$

$

Not available

23

Honda 94050-06080

NUT, FLANGE (6MM)

$0.99

$

In Stock, only 3 left!

0

25

Honda 95001-45003-50M

SEE PART DETAILS - PRI; BULK HOSE, FUEL (4.5X3000) (4.5X70)

$82.99

$

In Stock, only 1 left!

0

26

Honda 95002-02080

CLIP, TUBE (B8)

$2.49

$

In Stock, only 4 left!

0
