G200 SAG (G200) - Honda Engine, Made in Japan (SN: G200-1000001 - G200-2344556) POINTS + IGNITION COIL Parts Diagram

Engine, Made in Japan

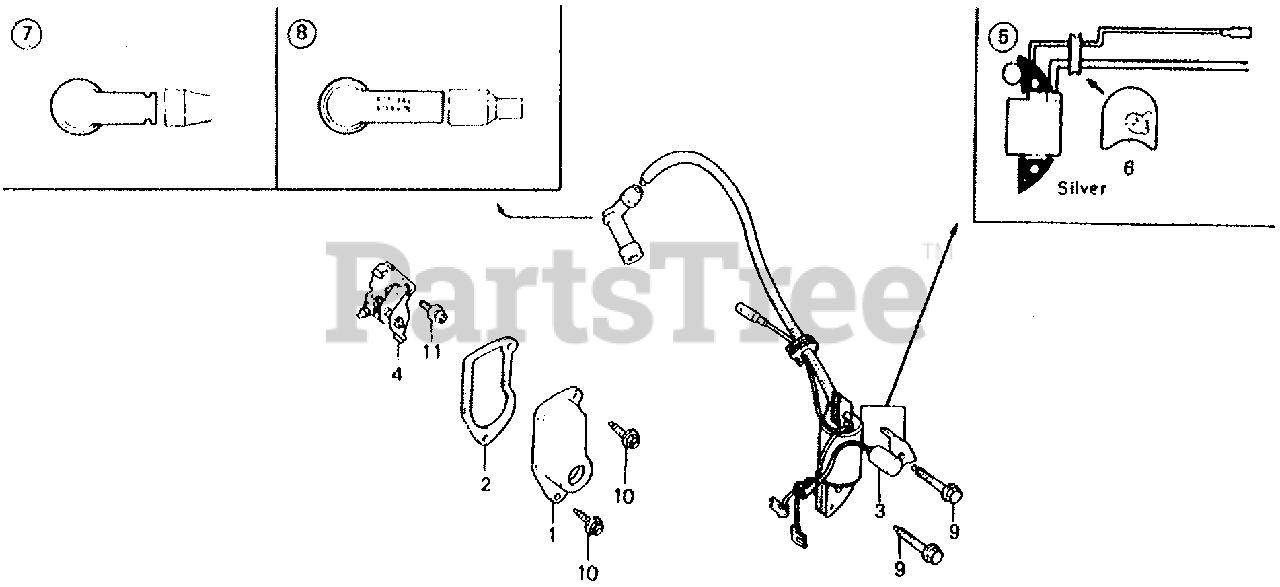

POINTS + IGNITION COIL Parts Diagram

  • Title

1

Honda 30211-883-000

COVER, POINTS (Honda Code 0636720).

$

$

Not available

2

Honda 30215-883-306

SEE PART DETAILS - PRI; GASKET, POINT COVER (Honda Code 4357380).

$

$

Not available

3

Honda 30251-883-003

CONDENSER (Honda Code 1002237).

Note: Use from Engine SN 1546272.

$21.99

$

Usually ships in 3-6 days

0

4

Honda 30280-883-005

POINTS ASSY. (Honda Code 0636746).

$33.99

$

Usually ships in 3-6 days

0

5

Honda 30560-732-000

SEE PART DETAILS - SUP; COIL ASSY., IGNITION (Honda Code 1315332).

Note: Use up to Engine SN 1071267.

$

$

Currently unavailable

5

Honda 30560-883-015

SEE PART DETAILS - PRI; COIL ASSY., IGNITION (Honda Code 0649491).

$138.99

$

Usually ships in 3-6 days

0

6

Honda 30563-883-000

GROMMET, WIRE (Honda Code 0636753).

$

$

Currently unavailable

6

Honda 30563-883-790

SEE PART DETAILS - PRI; GROMMET, WIRE (Honda Code 1063817).

$

$

Currently unavailable

7

Honda 30600-841-000

TERMINAL ASSY., IGNITION (Honda Code 0181289).

$

$

Not available

9

Honda 90017-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X32) (Honda Code 0636076).

$3.49

$

In Stock, only 1 left!

0

10

Honda 90019-883-000

BOLT, FLANGE (5X10) (Honda Code 0636878).

$3.49

$

Usually ships in 3-6 days

0

11

Honda 90051-883-000

SCREW-WASHER (5X12) (Honda Code 0649699).

$2.49

$

Usually ships in 3-6 days

0
