G200 QZDV (G200) - Honda Engine, Made in Japan (SN: G200-1000001 - G200-2344556) RECOIL STARTER Parts Diagram

Engine, Made in Japan

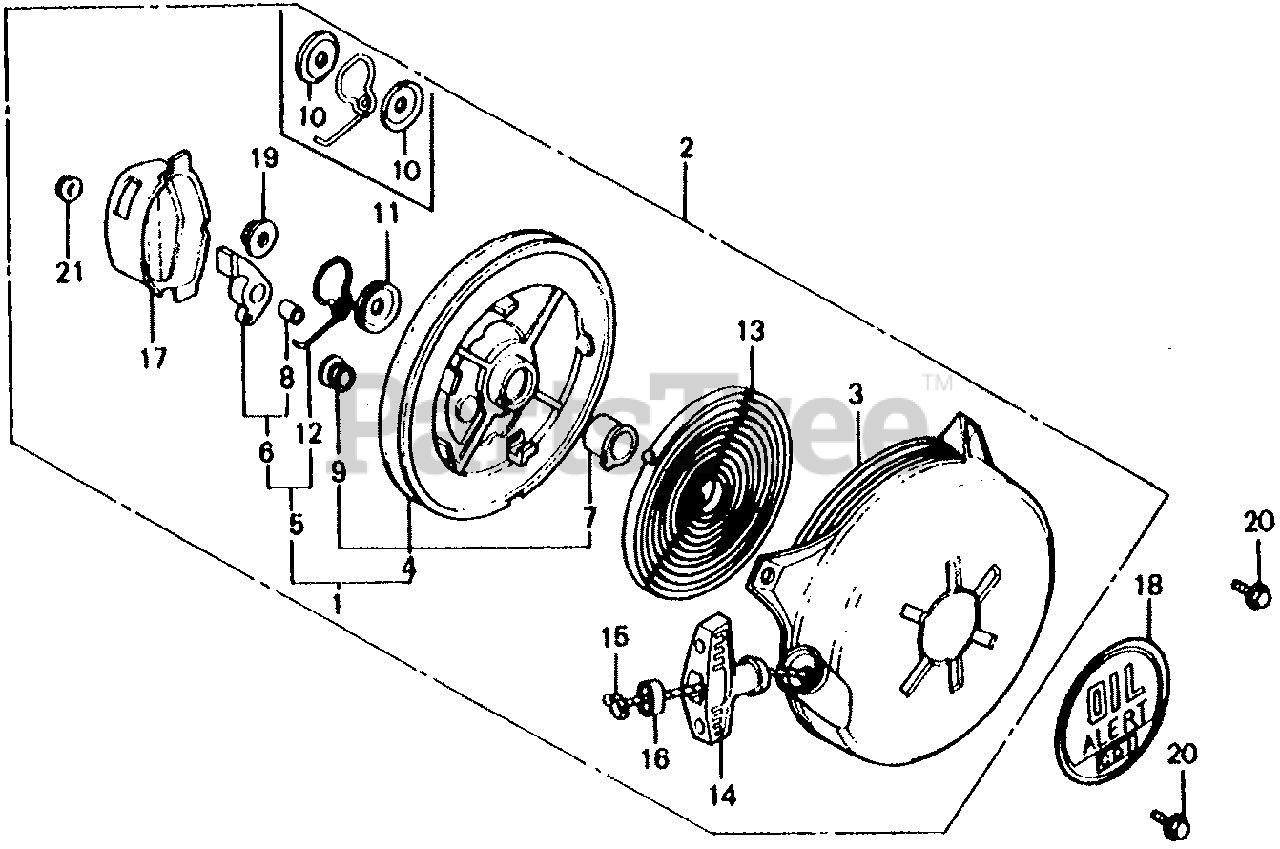

RECOIL STARTER Parts Diagram

  • Title

2

Honda 28400-883-040ZB

SEE PART DETAILS - SUP; STARTER ASSY., RECOIL *R8* (BRIGHT RED) (Honda Code 3488467).

$

$

Currently unavailable

3

Honda 28410-883-030ZB

CASE, STARTER *R8* (BRIGHT RED) (Honda Code 3488475).

$96.99

$

Usually ships in 0 days

0

4

Honda 28420-889-010

SEE PART DETAILS - PRI; REEL, STARTER (Honda Code 1002179).

$36.99

$

In Stock, only 1 left!

0

6

Honda 28422-883-020

SEE PART DETAILS - PRI; RATCHET (Honda Code 1002187).

$

$

Not available

7

Honda 28424-883-000

SEE PART DETAILS - PRI; BOSS, REEL (Honda Code 1000124).

$5.99

$

Usually ships in 3-6 days

0

8

Honda 28425-889-300

BUSH, RATCHET (Honda Code 0755801).

$4.99

$

Usually ships in 3-6 days

0

9

Honda 28427-883-300

BUSH, REEL STARTER (Honda Code 0743260).

$5.99

$

Usually ships in 3-6 days

0

11

Honda 28432-883-000

PLATE, FRICTION (Honda Code 1002195).

$5.49

$

Usually ships in 3-6 days

0

12

Honda 28441-883-020

SEE PART DETAILS - PRI; SPRING, FRICTION (Honda Code 1002203).

$9.99

$

In Stock, only 1 left!

0

13

Honda 28442-883-000

SPRING, RETURN (Honda Code 0636670).

$21.99

$

In Stock, only 1 left!

0

14

Honda 28461-883-000

GRIP, STARTER (Honda Code 0636688).

$11.99

$

In Stock, only 1 left!

0

15

Honda 28462-883-000

SEE PART DETAILS - SUP; ROPE, STARTER (#5X55") (Honda Code 0636696).

$

$

Currently unavailable

16

Honda 28463-883-000

SUPPORT, GRIP (Honda Code 0636704).

$3.99

$

Usually ships in 3-6 days

0

17

Honda 28474-883-010

SEE PART DETAILS - PRI; COVER, REEL STARTER (Honda Code 1000140).
(Superseded to 28474-YA0-N40)

$11.99

$

Usually ships in 3-6 days

0

18

Honda 87531-883-890

LABEL, OIL ALERT (Honda Code 1237650).

$2.99

$

Usually ships in 3-6 days

0

19

Honda 90115-659-003

NUT, SELF-LOCK (8MM) (Honda Code 0599480).

$0.99

$

In Stock, Qty 20+

0

20

Honda 95701-06008-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X8) (Honda Code 2581353).

$3.49

$

Usually ships in 3-6 days

0

21

Honda 94050-05000

NUT, FLANGE (5MM) (Honda Code 0636951).

$1.99

$

In Stock, Qty 20+

0
