G200 QZDV (G200) - Honda Engine, Made in Japan (SN: G200-1000001 - G200-2344556) MUFFLER (1) Parts Diagram

Engine, Made in Japan

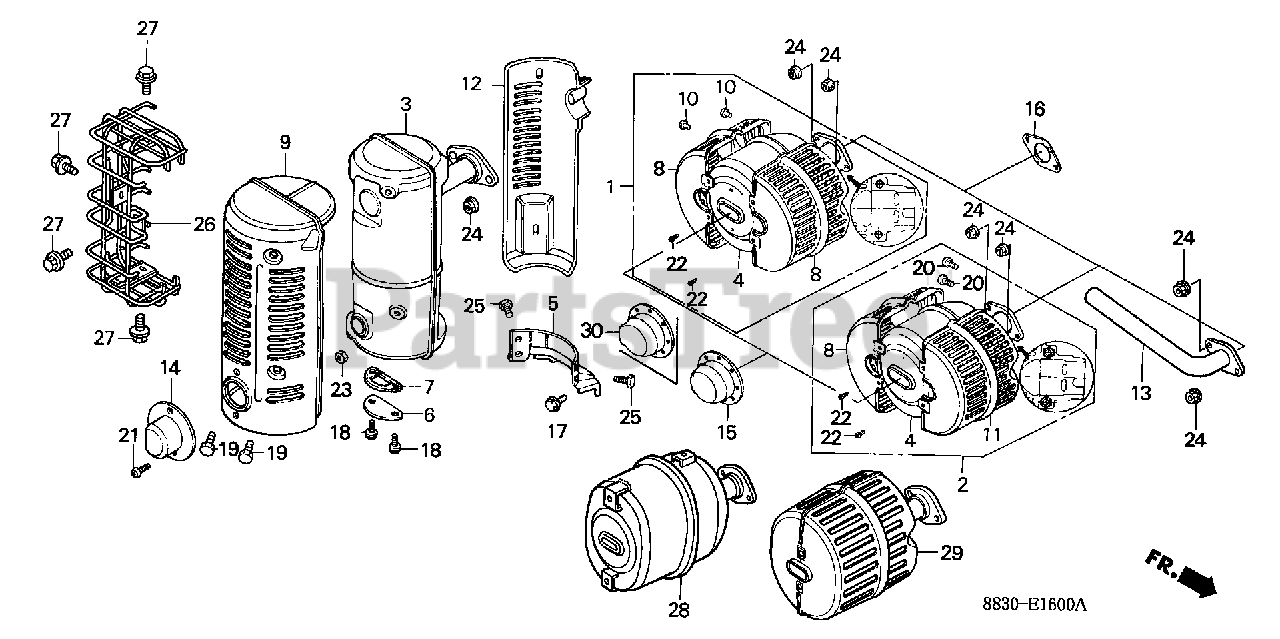

MUFFLER (1) Parts Diagram

  • Title
3

Honda 18300-883-671

MUFFLER (MUFFLER LID)

$

$

Not available

5

Honda 18315-883-672

STAY, MUFFLER

$

$

Not available

6

Honda 18316-883-670

LID, MUFFLER

$

$

Currently unavailable

7

Honda 18317-883-306

GASKET, MUFFLER LID

$3.99

$

Usually ships in 3-6 days

0

9

Honda 18320-883-670

PROTECTOR A, MUFFLER

$

$

Not available

12

Honda 18325-883-671

PROTECTOR B, MUFFLER

$

$

Not available

14

Honda 18331-883-670

DEFLECTOR, EX. MUFFLER

$

$

Currently unavailable

17

Honda 90031-883-000

BOLT, FLANGE (8X16)

$5.99

$

In Stock, only 1 left!

0

18

Honda 92101-06012-0B

BOLT, HEX. (6X12)

$1.99

$

Usually ships in 3-6 days

0

19

Honda 93101-06006-0B

BOLT, HEX. (6X6)

$

$

Not available

20

Honda 93500-04006-0B

SCREW, PAN (4X6)

$

$

Currently unavailable

23

Honda 94001-04080-0S

NUT, HEX. (4MM)

$1.49

$

Usually ships in 3-6 days

0

25

Honda 95700-06010-08

BOLT, FLANGE (6X10)

$2.49

$

In Stock, Qty 20+

0

25

Honda 95701-06010-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10)

$2.49

$

In Stock, Qty 20+

0
