G200 QCX (G200) - Honda Engine, Made in Japan (SN: G200-1000001 - G200-2344556) CARBURETOR (1) Parts Diagram

Engine, Made in Japan

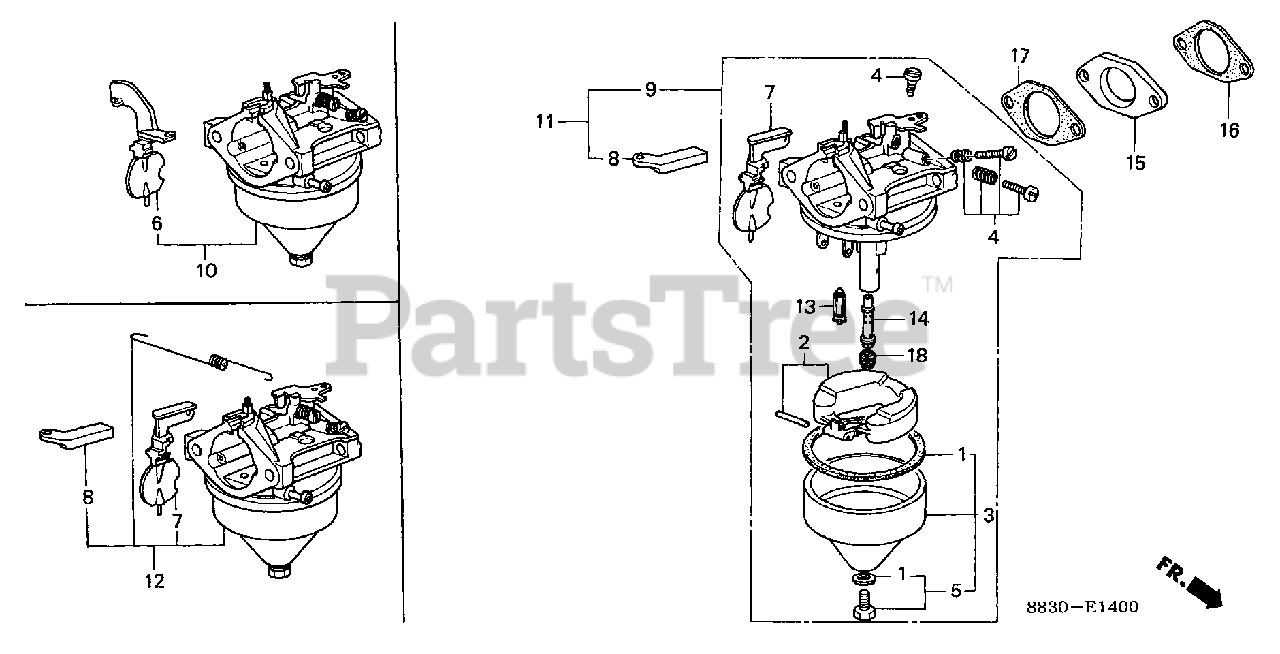

CARBURETOR (1) Parts Diagram

  • Title

1

Honda 16010-883-015

GASKET SET

Note: Use up to Engine SN BB30A D.

$12.99

$

In Stock, only 2 left!

0

2

Honda 16013-883-005

FLOAT SET (CARBURETOR NO.)

Note: Use up to Engine SN BB30A D.

$38.99

$

Usually ships in 3-6 days

0

3

Honda 16015-896-505

CHAMBER SET, FLOAT

Note: Use up to Engine SN BB30A D.

$39.99

$

Usually ships in 3-6 days

0

4

Honda 16016-148-610

SCREW SET A (CARBURETOR NO.)

Note: Use up to Engine SN BB30A C.

$22.99

$

Usually ships in 3-6 days

0

4

Honda 16016-148-611

SEE PART DETAILS - SUP; SCREW SET A (CARBURETOR NO.)
(Superseded to 16016-890-015)

Note: Use from Engine SN BB30A D to BB30A D.

$

$

Not available

5

Honda 16028-ZE0-005

SEE PART DETAILS - SUP; SCREW SET
(Superseded to 16028-ZK7-S91)

Note: Use up to Engine SN BB30A D.

$13.99

$

In Stock, only 1 left!

0

5

Honda 16028-ZK7-S91

SEE PART DETAILS - PRI; SCREW SET

Note: Use up to Engine SN BB30A D.

$13.99

$

In Stock, only 1 left!

0

6

Honda 16044-883-005

CHOKE SET (CARBURETOR NO.)

Note: Use up to Engine SN BB30A A.

$

$

Not available

7

Honda 16044-883-015

CHOKE SET (CARBURETOR NO.)

Note: Use from Engine SN BB30A B to BB30A D.

$39.99

$

Usually ships in 3-6 days

0

8

Honda 16046-883-005

ARM, CHOKE LEVER (CARBURETOR NO.)

Note: Use from Engine SN BB30A B to BB30A D.

$

$

Not available

9

Honda 16100-883-095

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BB30A G)

Note: Use from Engine SN 1208718 to 1484486.

$

$

Not available

9

Honda 16100-883-105

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BB30A D)

Note: Use from Engine SN 1208718 to 1484486.

$78.99

$

Usually ships in 3-6 days

0

9

Honda 16100-883-355

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BB30A D)

Note: Use from Engine SN 1208718 to 1346002.

$75.99

$

Usually ships in 3-6 days

0

10

Honda 16100-883-095

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BB30A G)

Note: Use up to Engine SN 1208717.

$

$

Not available

10

Honda 16100-883-105

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BB30A A)

Note: Use up to Engine SN 1208717.

$78.99

$

Usually ships in 3-6 days

0

10

Honda 16100-883-355

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BB30A D)

Note: Use up to Engine SN 1208717.

$75.99

$

Usually ships in 3-6 days

0

11

Honda 16100-883-095

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BB30A G)

Note: Use up to Engine SN 1208717.

$

$

Not available

11

Honda 16100-883-105

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BB30A B)

Note: Use up to Engine SN 1208717.

$78.99

$

Usually ships in 3-6 days

0

11

Honda 16100-883-355

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BB30A D)

Note: Use up to Engine SN 1208717.

$75.99

$

Usually ships in 3-6 days

0

12

Honda 16100-883-095

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BB30A G)

Note: Use up to Engine SN 1249094.

$

$

Not available

12

Honda 16100-883-095

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BB30A G)

Note: Use up to Engine SN 1346002.

$

$

Not available

12

Honda 16100-883-105

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BB30A D)

Note: Use up to Engine SN 1249094.

$78.99

$

Usually ships in 3-6 days

0

12

Honda 16100-883-105

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BB30A D)

Note: Use up to Engine SN 1346002.

$78.99

$

Usually ships in 3-6 days

0

12

Honda 16100-883-355

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BB30A D)

Note: Use up to Engine SN 1249094.

$75.99

$

Usually ships in 3-6 days

0

12

Honda 16100-883-355

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BB30A D)

Note: Use up to Engine SN 1346002.

$75.99

$

Usually ships in 3-6 days

0

13

Honda 16155-883-005

VALVE, FLOAT (CARBURETOR NO.)

Note: Use up to Engine SN BB30A D.

$26.99

$

Usually ships in 3-6 days

0

14

Honda 16166-883-005

NOZZLE, MAIN (CARBURETOR NO.)

Note: Use up to Engine SN BB30A D.

$12.99

$

Usually ships in 3-6 days

0

15

Honda 16211-883-000

INSULATOR, CARBURETOR

Note: Use up to Engine SN 1484486.

$16.99

$

Usually ships in 3-6 days

0

16

Honda 16212-883-800

SEE PART DETAILS - PRI; GASKET, INSULATOR

Note: Use up to Engine SN 1484486.

$2.49

$

In Stock, Qty 6

0

17

Honda 16221-883-306

SEE PART DETAILS - SUP; GASKET, CARBURETOR
(Superseded to 16221-887-800)

Note: Use up to Engine SN 1484486.

$3.49

$

In Stock, Qty 20+

0

17

Honda 16221-887-800

SEE PART DETAILS - PRI; GASKET, CARBURETOR

Note: Use up to Engine SN 1484486.

$3.49

$

In Stock, Qty 20+

0

18

Honda 99101-124-0650

JET, MAIN (#65) Use up to Engine SN BB30A D.

$12.99

$

In Stock, only 2 left!

0

18

Honda 99101-124-0680

JET, MAIN (#68) Use up to Engine SN BB30A D.

$11.99

$

Usually ships in 3-6 days

0

18

Honda 99101-124-0700

JET, MAIN (#70) Use up to Engine SN BB30A D.

$11.99

$

In Stock, only 1 left!

0

18

Honda 99101-124-0720

JET, MAIN (#72) (CARBURETOR NO.)

Note: Use up to Engine SN BB30A D.

$11.99

$

Usually ships in 3-6 days

0
