G200 QAF (G200) - Honda Engine, Made in Japan (SN: G200-1000001 - G200-2344556) FUEL TANK + FUEL VALVE Parts Diagram

Engine, Made in Japan

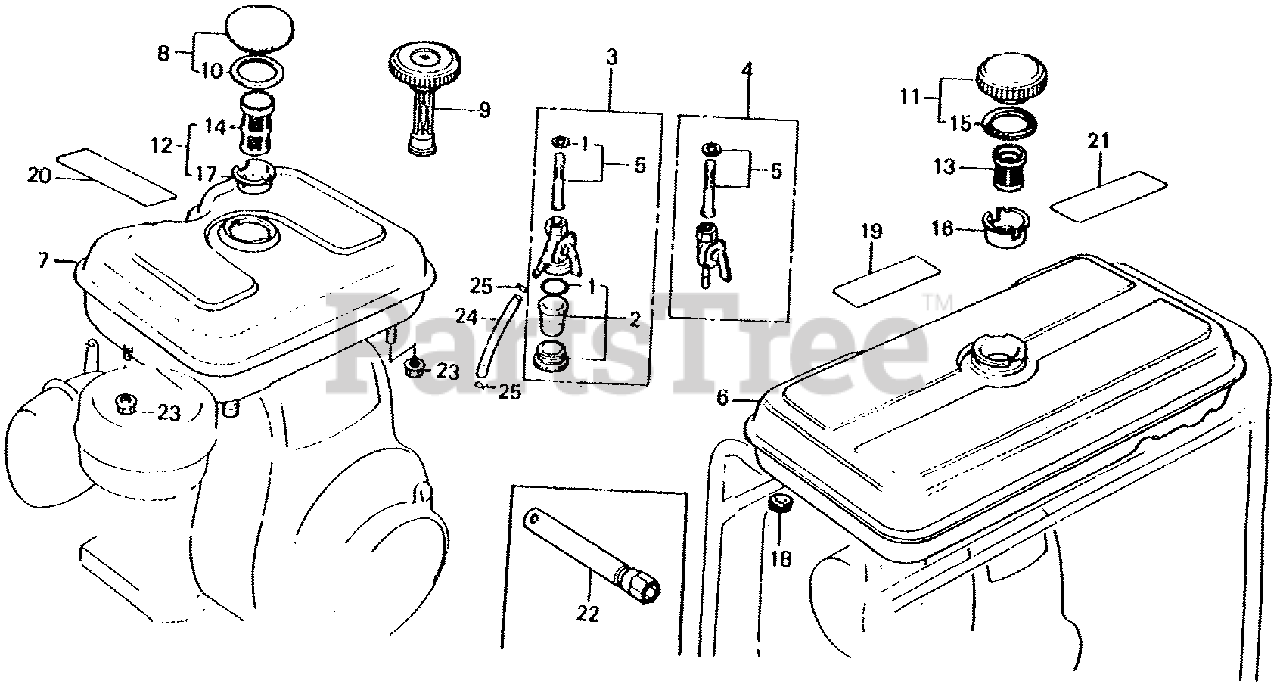

FUEL TANK + FUEL VALVE Parts Diagram

  • Title

1

Honda 16080-883-005

GASKET SET, VALVE (Honda Code 0649194).

$14.99

$

In Stock, only 2 left!

0

2

Honda 16081-883-015

SEE PART DETAILS - PRI; CUP SET, FUEL STRAINER (Honda Code 0965319).
(Superseded to 16081-471-831)

$32.99

$

Usually ships in 3-6 days

0

3

Honda 16950-883-035

SEE PART DETAILS - SUP; PETCOCK ASSY. (Honda Code 3498722).

$

$

Currently unavailable

3

Honda 16950-883-045

SEE PART DETAILS - PRI; PETCOCK ASSY. (Honda Code 7090269).
(Superseded to 16950-898-633)

$62.99

$

In Stock, only 3 left!

0

5

Honda 16952-883-005

SCREEN SET (Honda Code 0674580).

$20.99

$

In Stock, only 1 left!

0

6

Honda 17500-876-010XC

SEE PART DETAILS - SUP; TANK, FUEL *NH31* (MCKINLEY WHITE) (Honda Code 0648451).

Note: (Optional). Use up to Engine SN 1211507.

$

$

Currently unavailable

6

Honda 17500-876-020ZA

SEE PART DETAILS - PRI; TANK, FUEL (Honda Code 3737855).

Note: (Optional). Use from Engine SN 1211508.

$

$

Currently unavailable

7

Honda 06172-883-305XC

SEE PART DETAILS - PRI; TANK, FUEL *NH31* (MCKINLEY WHITE) (Honda Code 1049014).

Note: Use up to Engine SN 1252366.

$

$

Not available

7

Honda 17510-883-050XC

SEE PART DETAILS - SUP; TANK, FUEL *NH31* (MCKINLEY WHITE) (Honda Code 1050756).
(Superseded to 17510-883-070ZA)

Note: Use from Engine SN 1543258 to 2266822.

$

$

Not available

7

Honda 17510-883-070ZA

SEE PART DETAILS - PRI; TANK, FUEL *NH31* (MCKINLEY WHITE) (Honda Code 3795408).

Note: Use from Engine SN 1543258 to 2266822.

$

$

Not available

8

Honda 17620-ZH7-013

SEE PART DETAILS - SUP; CAP, FUEL FILLER (Honda Code 4572392).

Note: Use from Engine SN 1543258 to 2342662.

$

$

Currently unavailable

8

Honda 17620-ZH7-013

SEE PART DETAILS - SUP; CAP, FUEL FILLER (Honda Code 4572392).

Note: (Optional). Use from Engine SN 2342663.

$

$

Currently unavailable

8

Honda 17620-ZH7-023

SEE PART DETAILS - PRI; CAP, FUEL FILLER (Honda Code 5344817).
(Superseded to 17620-Z0T-305)

Note: Use from Engine SN 1543258 to 2342662.

$

$

Not available

8

Honda 17620-ZH7-023

SEE PART DETAILS - PRI; CAP, FUEL FILLER (Honda Code 5344817).
(Superseded to 17620-Z0T-305)

Note: (Optional). Use from Engine SN 2342663.

$

$

Not available

8

Honda 17620-044-010

CAP, FUEL FILLER (Honda Code 0627265).
(Superseded to 17620-102-730)

Note: Use up to Engine SN 1543257.

$

$

Not available

8

Honda 17620-102-730

SEE PART DETAILS - PRI; CAP, FUEL FILLER (Honda Code 0835496).

Note: Use up to Engine SN 1543257.

$

$

Not available

9

Honda 17630-883-692

SEE PART DETAILS - PRI; GAUGE, FUEL (Honda Code 4608352).

Note: (Optional).

$

$

Not available

10

Honda 17631-096-701

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP (Honda Code 2831444).
(Superseded to 17631-096-702)

Note: Use up to Engine SN 1543257.

$3.99

$

In Stock, only 2 left!

0

10

Honda 17631-329-003

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP (Honda Code 2820587).
(Superseded to 17631-329-013)

Note: (Optional). Use from Engine SN 1543258.

$

$

Not available

11

Honda 17620-ZH7-013

SEE PART DETAILS - SUP; CAP, FUEL FILLER (Honda Code 4572392).

Note: (Optional). Use from Engine SN 1518839.

$

$

Currently unavailable

11

Honda 17620-ZH7-023

SEE PART DETAILS - PRI; CAP, FUEL FILLER (Honda Code 5344817).
(Superseded to 17620-Z0T-305)

Note: (Optional). Use from Engine SN 1518839.

$

$

Not available

11

Honda 17620-329-010

SEE PART DETAILS - SUP; CAP, FUEL FILLER (Honda Code 0803288).

Note: (Optional). Use from Engine SN 1211508 to 1518838.

$

$

Currently unavailable

11

Honda 17620-402-010

SEE PART DETAILS - PRI; CAP, FUEL FILLER (Honda Code 2892610).
(Superseded to 17620-402-020)

Note: (Optional). Use from Engine SN 1211508 to 1518838.

$22.99

$

In Stock, only 1 left!

0

11

Honda 17650-805-750

SEE PART DETAILS - PRI; CAP, FUEL TANK (NOT AVAILABLE) (Honda Code 0065771).

Note: (Optional). Use up to Engine SN 1211507.

$

$

Not available

12

Honda 17670-883-000

FILTER, FUEL (Honda Code 0636522).

Note: Use up to Engine SN 1543257.

$

$

Not available

13

Honda 17670-880-000

FILTER, FUEL (Honda Code 0755496).

Note: (Optional). Use from Engine SN 1211508.

$

$

Currently unavailable

13

Honda 17672-876-000

SEE PART DETAILS - PRI; FILTER, FUEL (Honda Code 0743237).

Note: (Optional). Use up to Engine SN 1211507.

$

$

Currently unavailable

14

Honda 17672-880-000

FILTER, FUEL (Honda Code 0474759).

Note: Use from Engine SN 1543258.

$15.99

$

In Stock, only 2 left!

0

14

Honda 17672-883-300

FILTER, FUEL (Honda Code 0636530).

Note: Use up to Engine SN 1543257.

$

$

Not available

15

Honda 17631-329-003

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP (Honda Code 2820587).
(Superseded to 17631-329-013)

Note: (Optional). Use from Engine SN 1211508.

$

$

Not available

15

Honda 17631-329-003

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP (Honda Code 2820587).
(Superseded to 17631-329-013)

Note: (Optional).

$

$

Not available

15

Honda 17673-703-030

SEE PART DETAILS - PRI; GASKET, FUEL FILTER (NOT AVAILABLE) (Honda Code 0206862).

Note: (Optional). Use up to Engine SN 1211507.

$

$

Not available

16

Honda 17673-893-000

SEE PART DETAILS - PRI; HOLDER, FUEL FILTER (Honda Code 0788109).

Note: (Optional). Use from Engine SN 1211508.

$15.99

$

In Stock, only 2 left!

0

17

Honda 17673-883-300

HOLDER, FUEL FILTER (Honda Code 0672394).

Note: Use up to Engine SN 1543257.

$10.99

$

In Stock, only 4 left!

0

17

Honda 17673-893-000

SEE PART DETAILS - PRI; HOLDER, FUEL FILTER (Honda Code 0788109).

Note: Use from Engine SN 1543258.

$15.99

$

In Stock, only 2 left!

0

18

Honda 17682-817-020

RUBBER, TANK CUSHION (Honda Code 0139758).

Note: (Optional).

$3.99

$

Usually ships in 3-6 days

0

19

Honda 87522-836-670

SEE PART DETAILS - PRI; MARK A, CAUTION (Honda Code 0379461).

Note: (Optional).

$

$

Not available

20

Honda 87522-883-660

SEE PART DETAILS - PRI; MARK, CAUTION (ENGLISH/FRENCH)(SPANISH) (Honda Code 0636811).

$5.49

$

In Stock, Qty 9

0

21

Honda 87561-880-600

MARK, CAUTION (CO)(ENGLISH/FRENCH)(SPANISH) (Honda Code 0629501).

Note: (Optional).

$5.99

$

In Stock, Qty 6

0

22

Honda 89216-829-010

SEE PART DETAILS - PRI; WRENCH, SPARK PLUG (Honda Code 0171660).

$4.99

$

Usually ships in 3-6 days

0

23

Honda 94050-06080

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0612689).

$0.99

$

In Stock, only 3 left!

0

24

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X70) (Honda Code 5137104).

$57.99

$

In Stock, Qty 10

0

25

Honda 95002-02080

CLIP, TUBE (B8) (Honda Code 0250647).

$2.49

$

In Stock, Qty 20+

0
