G200 HQAF (G200) - Honda Engine, Made in Japan (SN: G200-1000001 - G200-2344556) REDUCTION (1/6) Parts Diagram

Engine, Made in Japan

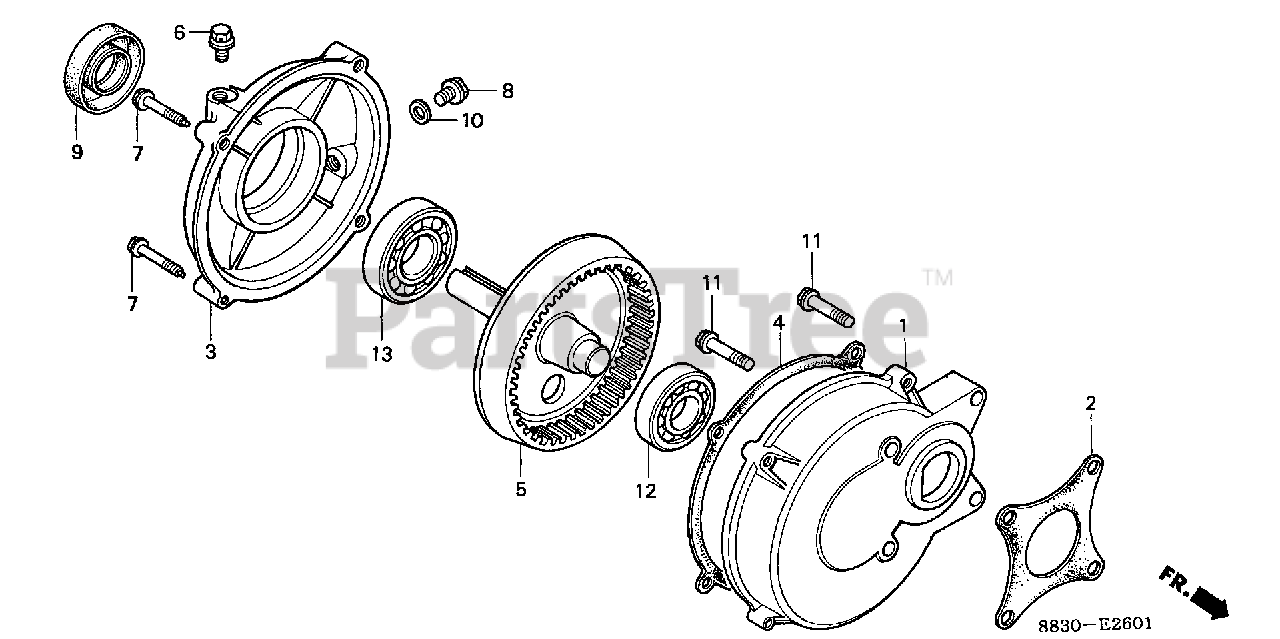

REDUCTION (1/6) Parts Diagram

  • Title
1

Honda 21521-883-305

CASE, REDUCTION (NOT AVAILABLE)

Note: Use up to Engine SN 1609606.

$

$

Currently unavailable

1

Honda 21521-883-741

CASE, REDUCTION

Note: Use from Engine SN 1609607.

$144.99

$

Usually ships in 3-6 days

0

2

Honda 21591-ZH8-740

GASKET, REDUCTION CASE

$6.99

$

In Stock, Qty 14

0

3

Honda 21621-883-740

COVER, REDUCTION (NOT AVAILABLE)

Note: Use up to Engine SN 1609606.

$

$

Currently unavailable

3

Honda 21621-883-741

COVER, REDUCTION
(Superseded to 21621-883-742)

Note: Use from Engine SN 1609607.

$34.99

$

Usually ships in 3-6 days

0

4

Honda 21692-ZH8-800

GASKET, REDUCTION COVER

Note: Use from Engine SN 1609607.

$10.99

$

In Stock, Qty 10

0

4

Honda 21692-883-740

GASKET, REDUCTION COVER (NOT AVAILABLE)

Note: Use up to Engine SN 1609606.

$

$

Currently unavailable

5

Honda 23710-883-740

SHAFT, P.T.O. (86T)

$319.99

$

Usually ships in 3-6 days

0

6

Honda 90002-883-740

BOLT, BREATHING

$5.99

$

Usually ships in 3-6 days

0

7

Honda 90017-883-000

BOLT, FLANGE (6X32)

Note: Use up to Engine SN 1609606.

$3.49

$

In Stock, only 1 left!

0

7

Honda 95701-08035-00

BOLT, FLANGE (8X35)

Note: Use from Engine SN 1609607.

$2.99

$

In Stock, Qty 20+

0

8

Honda 90131-883-000

SEE PART DETAILS - SUP; BOLT, DRAIN PLUG (12X15)

$

$

Not available

8

Honda 90131-896-650

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG (12X15)

$4.99

$

In Stock, Qty 12

0

9

Honda 91201-Z0T-801

SEE PART DETAILS - PRI; OIL SEAL (25X41X6)

$8.99

$

In Stock, Qty 8

0

9

Honda 91202-883-005

SEE PART DETAILS - SUP; OIL SEAL (25X41X6)
(Superseded to 91201-Z0T-801)

$8.99

$

In Stock, Qty 8

0

10

Honda 94109-12000

WASHER, DRAIN PLUG (12MM)

$1.49

$

In Stock, Qty 12

0

11

Honda 95701-08032-08

BOLT, FLANGE (8X32)

$2.99

$

Usually ships in 3-6 days

0

12

Honda 96100-62040-00

BEARING, RADIAL BALL (6204)

$16.99

$

In Stock, only 2 left!

0

13

Honda 96100-63050-00

BEARING, RADIAL BALL (6305)

$20.99

$

Usually ships in 3-6 days

0
