G200 HQAF (G200) - Honda Engine, Made in Japan (SN: G200-1000001 - G200-2344556) IGNITION COIL (1) Parts Diagram

Engine, Made in Japan

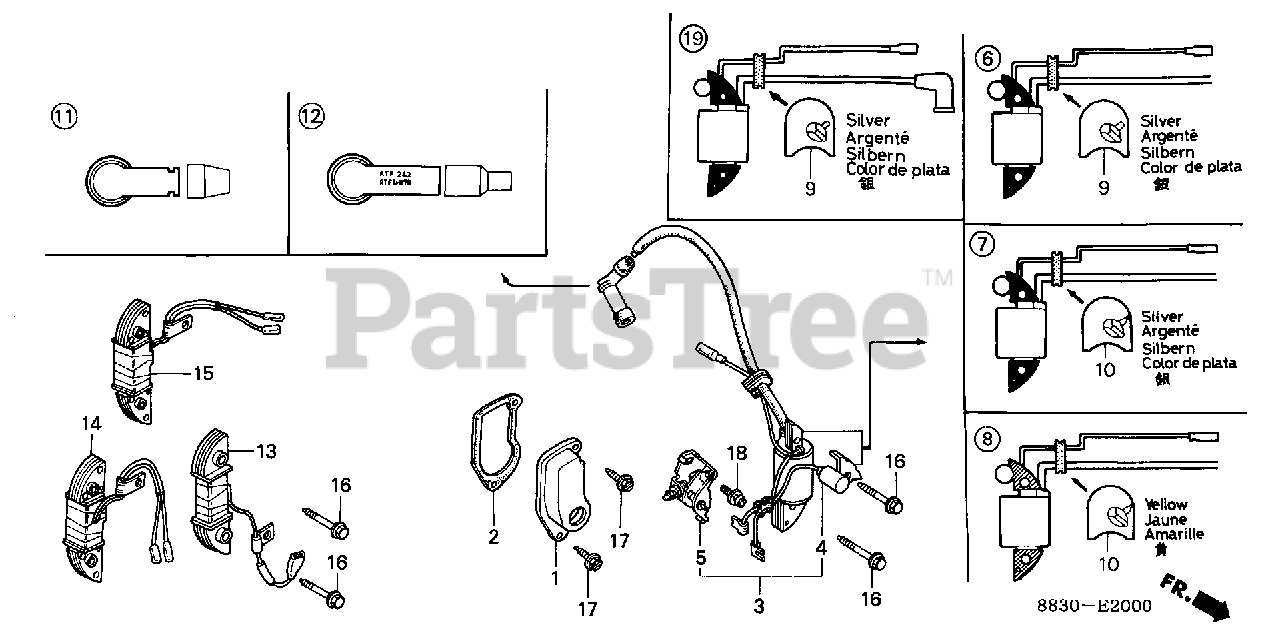

IGNITION COIL (1) Parts Diagram

  • Title

1

Honda 30211-883-000

COVER, BREAKER

$

$

Not available

2

Honda 30215-883-306

GASKET, POINT COVER

$

$

Not available

4

Honda 30251-883-003

CONDENSER

Note: Use from Engine SN 1546272.

$22.99

$

In Stock, only 1 left!

0

5

Honda 30280-883-005

POINTS ASSY.

$35.99

$

Usually ships in 3-6 days

0

6

Honda 30560-883-015

COIL ASSY., IGNITION

Note: Use from Engine SN 1071268.

$148.99

$

Usually ships in 3-6 days

0

6

Honda 30560-883-015

COIL ASSY., IGNITION Use up to Engine SN 1071267.

$148.99

$

Usually ships in 3-6 days

0

9

Honda 30563-883-000

GROMMET, WIRE

$

$

Currently unavailable

11

Honda 30600-841-000

TERMINAL ASSY., IGNITION (NOT AVAILABLE)

$

$

Not available

16

Honda 90017-883-000

BOLT, FLANGE (6X32)

$3.49

$

In Stock, only 2 left!

0

17

Honda 90019-883-000

BOLT, FLANGE (5X10)

$3.49

$

Usually ships in 3-6 days

0

18

Honda 90051-883-000

SCREW-WASHER (5X12)

$2.49

$

Usually ships in 3-6 days

0
